SGHA36AT0600 - 600Amp Max. *Frame Only*

SGHA36AT0600 - 600Amp Max. *Frame Only*

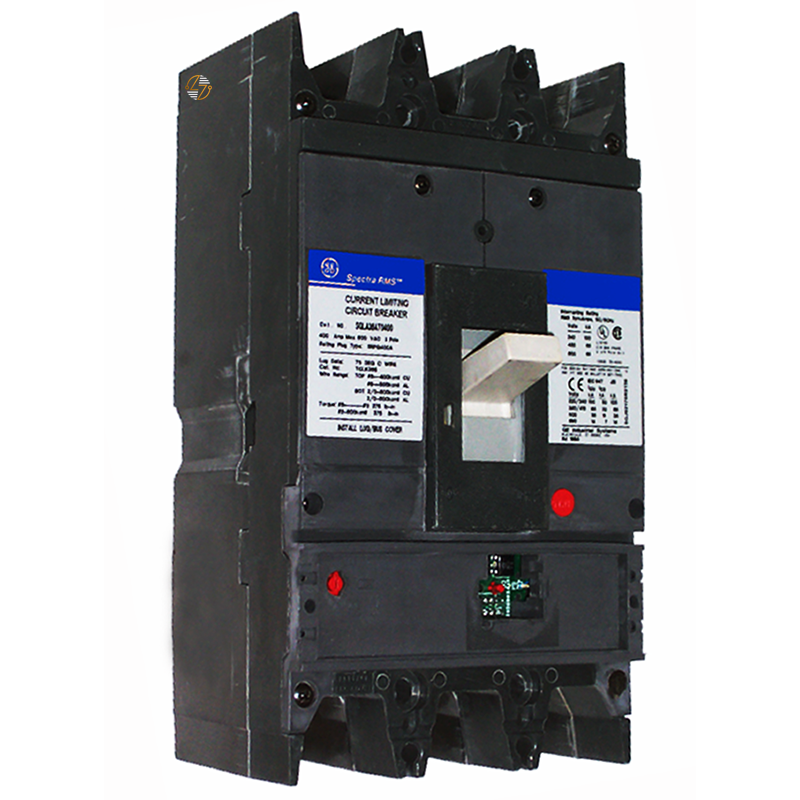

When you're maintaining or repairing an existing power distribution system, finding the right replacement component matters. The SGHA36AT0600 is a 600 amp, 3-pole SGHA molded case circuit breaker frame designed for use in compatible SG600 Line applications. This frame-only unit is intended for installations that already use the appropriate electronic trip components, making it a practical choice when you need a form, fit, and functional replacement without changing your existing system configuration. Built for demanding industrial environments, the SGHA36AT0600 features a current-limiting design that is intended for use in applications where controlling fault current is important. Its electronic trip configuration supports accurate protection when paired with the proper trip unit, helping facilities keep electrical distribution systems operating as designed. Whether you're servicing switchgear during scheduled maintenance or replacing a damaged breaker frame, this model provides the compatibility needed for many existing commercial and industrial electrical systems. Like the rest of the SG600 family, it's built to last and designed for dependable service in the applications for which it was engineered.

Key Features and Benefits

• SGHA Molded Case Circuit Breaker Frame: SGHA molded case circuit breaker frame only.
• SG600 Line Compatibility: Designed for compatible SG600 Line applications.
• 600 Amp Rating: Rated for 600 amps.
• Three-Pole Configuration: 3-pole configuration for three-phase electrical systems.
• Current-Limiting Design: Current-limiting design for compatible installations.
• Electronic Trip Compatibility: Intended for use with an electronic trip configuration.
• Form, Fit, and Functional Replacement: Form, fit, and functional replacement for compatible SGHA breaker assemblies.
• Built to Last: Built for long-term use in commercial and industrial electrical systems.


Technical Specifications

• Part Number: SGHA36AT0600

• Type: SGHA

• Product Line: SG600 Line

• Configuration: Frame Only

• Poles: 3

• Amperage: 600 A

• Interrupting Rating: 25kA @ 600VAC; 35kA @ 480VAC; 65kA @ 240VAC

• Trip Type: Electronic Trip

• Current Limiting: Yes

• Dimensions:
  • Height: 10.09 in.
  • Width: 5.50 in.
  • Depth: 3.81 in.

Material Compliance and Certifications

• Industrial Applications: Designed for industrial electrical distribution applications.
• Compatible Equipment: Manufactured for use with compatible SGHA series equipment.
• Installation Requirements: Intended for installation by qualified electrical personnel following applicable electrical codes.
• Compatibility Verification: Compatibility with the existing breaker frame, trip unit, and electrical system should always be verified before installation.


Where It Works Best

• The SGHA36AT0600 is commonly used in manufacturing facilities, industrial plants, commercial buildings, distribution equipment, switchboards, panel assemblies, and other three-phase power systems utilizing compatible SGHA 600-amp breaker frames. Because this product is supplied as a frame only, it is best suited for maintenance, repair, and replacement projects where the existing electronic trip components and associated hardware will be used with a compatible breaker assembly.
