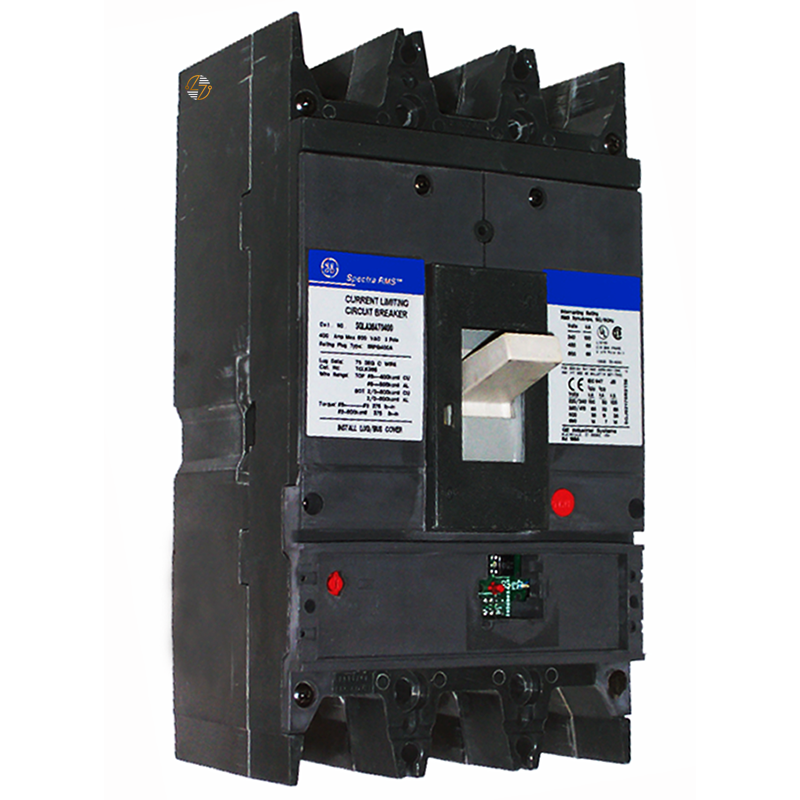

SGHA26AT0600 - 600Amp Max. *Frame Only*

SGHA26AT0600 - 600Amp Max. *Frame Only*

When you need a compatible replacement breaker frame for an existing power distribution system, the SGHA26AT0600 delivers the form, fit, and function required to keep your equipment configured as intended. This SG600 Line 2-pole, 600-amp industrial molded case circuit breaker frame is designed for applications that utilize an electronic trip unit and a current-limiting design. Rated for 35kA at 480VAC and 65kA at 240VAC, it is commonly used in commercial and industrial electrical systems where dependable overcurrent protection is essential. Because this listing is for the frame only, it is an ideal choice when replacing a damaged or worn breaker frame while retaining a compatible electronic trip unit. Whether you're maintaining switchgear, servicing a distribution panel, or restoring equipment to operating condition, the SGHA26AT0600 provides the proper foundation for a compatible circuit breaker assembly. Built to last, it helps support the continued operation of legacy electrical systems without changing the original equipment configuration.

Key Features and Benefits

• SGHA Type Circuit Breaker Frame: SGHA Type industrial molded case circuit breaker frame.
• SG600 Line: Part of the SG600 Line.
• 600 Amp Frame: 600 Amp frame with 2-pole configuration.
• Electronic Trip Compatibility: Designed for use with compatible electronic trip units.
• Current-Limiting Design: Current-limiting design for applicable fault current protection.
• Interrupting Capacity: Interrupting capacity of 35kA at 480VAC and 65kA at 240VAC.
• Frame Only: Frame only — trip unit is not included.
• Form, Fit, and Functional Replacement: Form, fit, and functional replacement for compatible installations.
• Built to Last: Built to last in demanding commercial and industrial environments.


Technical Specifications

• Part Number: SGHA26AT0600

• Type: SGHA

• Product Line: SG600 Line

• Product Category: Industrial Molded Case Circuit Breaker Frame

• Configuration: Frame Only

• Poles: 2

• Amperage: 600A

• A.I.C. Rating: 35kA @ 480VAC; 65kA @ 240VAC

• Trip Type: Electronic Trip Compatible

• Current Limiting: Yes

• Dimensions:
  • Height: 10.09 in.
  • Width: 5.50 in.
  • Depth: 3.81 in.

Material Compliance and Certifications

• Commercial and Industrial Use: Manufactured for use in compatible commercial and industrial electrical distribution systems.
• SG600 Ratings: Designed to meet the published electrical ratings of the SG600 product line.
• Compatibility Verification: Verify compatibility with your existing breaker, trip unit, voltage, and application before installation.
• Installation Requirements: Installation should be performed in accordance with applicable electrical codes and manufacturer recommendations.


Where It Works Best

• The SGHA26AT0600 is commonly used in electrical systems that require a compatible 600A molded case circuit breaker frame, including:
• Industrial manufacturing facilities
• Commercial buildings
• Distribution switchboards
• Panelboards
• Motor control centers (MCCs)
• Processing plants
• Power distribution equipment
• Facility maintenance and repair projects
