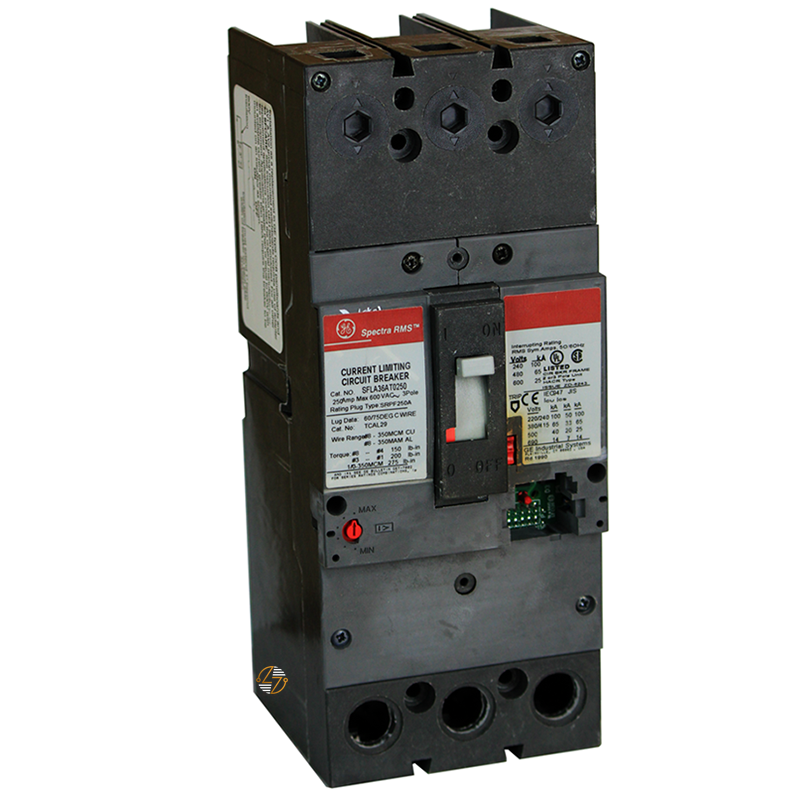

The SFPA36AT0250 is a 3-pole, 250 amp industrial molded case circuit breaker frame from the SF250 line, designed for use in your commercial and industrial electrical distribution systems that require dependable circuit protection. This current-limiting breaker frame features an electronic trip system to help you protect electrical equipment and circuits from overloads and short circuits while supporting consistent operation in demanding applications. Rated for 25kA at 600VAC, 65kA at 480VAC, and 100kA at 240VAC, it is intended as a form, fit, and functional replacement for compatible installations where maintaining the original system configuration is important. Built to last, this unit is supplied as the frame only, making it suitable for applications requiring a compatible replacement frame within an existing assembly.

Key Features and Benefits

• SFPA Type: SFPA Type industrial molded case circuit breaker.
• SF250 Line Design: SF250 line design.
• 250 Amp Rating: 250 amp current rating.
• Three-Pole Configuration: 3-pole configuration.
• Electronic Trip Unit Design: Electronic trip unit design.
• Current-Limiting Construction: Current-limiting construction to help reduce the effects of high fault currents.
• Interrupting Capacity:
  • 25kA @ 600VAC
  • 65kA @ 480VAC
  • 100kA @ 240VAC
• Form, Fit, and Functional Replacement: Designed as a form, fit, and functional replacement for compatible legacy electrical systems.
• Built for Long-Term Service: Built for long-term industrial service.
• Frame Only Configuration: Frame only configuration.


Technical Specifications

• Part Number: SFPA36AT0250

• Type: SFPA

• Product Line: SF250

• Product Category: Industrial Molded Case Circuit Breaker Frame

• Configuration: Frame Only

• Trip Type: Electronic Trip

• Current Limiting: Yes

• Poles: 3

• Amperage: 250A

• A.I.C. Rating:
  • 25kA @ 600VAC
  • 65kA @ 480VAC
  • 100kA @ 240VAC
• Dimensions:
  • Height: 10.12 in.
  • Width: 4.12 in.
  • Depth: 3.38 in.

Material Compliance and Certifications

• Compatible Systems: Designed for installation in compatible commercial and industrial electrical distribution systems.
• SF250 Specifications: Manufactured to meet the specifications associated with the SF250 product line.
• Installation Verification: Verify compatibility with your existing equipment, applicable electrical codes, and project requirements before installation.


Where It Works Best

• The SFPA36AT0250 is well suited for commercial and industrial facilities that depend on compatible molded case circuit breaker frames to maintain existing electrical distribution systems. It is commonly used in switchboards, panelboards, motor control equipment, industrial machinery, manufacturing facilities, processing plants, and other power distribution applications where a 250A, 3-pole, current-limiting electronic trip breaker frame is required as a form, fit, and functional replacement.
