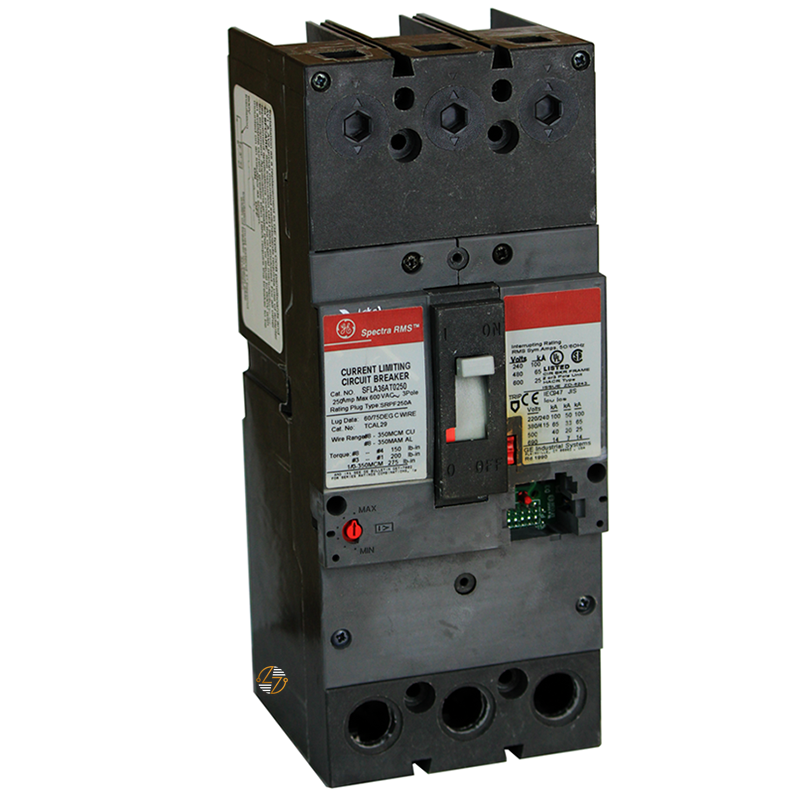

SFLA36AT0250 - 250Amp Max. *Frame Only*

SFLA36AT0250 - 250Amp Max. *Frame Only*

Finding the right replacement breaker starts with matching the original equipment. The SFLA36AT0250 is a 250 Amp, 3-pole molded case circuit breaker frame from the SF250 Line, designed for use in compatible commercial and industrial electrical systems. It features an electronic trip design and a current-limiting construction to meet the electrical requirements of existing installations. This is the frame only, making it a suitable option when replacing a matching breaker frame without changing the overall system configuration.

Whether you're maintaining plant equipment, servicing a distribution panel, or replacing a worn breaker in an existing installation, matching the original specifications helps avoid unnecessary modifications. This breaker frame is built to last and is intended to provide the same form, fit, and functional compatibility as the original equipment when used in the proper application. With interrupting ratings of 25kA at 600VAC, 65kA at 480VAC, and 100kA at 240VAC, it is designed for use in a variety of commercial and industrial power distribution systems.

Key Features and Benefits

• Part Number: SFLA36AT0250
• SF250 Line Molded Case Circuit Breaker: Designed for use in compatible commercial and industrial electrical systems.
• Frame Only: Suitable for replacing a matching breaker frame without changing the overall system configuration.
• 250 Amp Rating: Rated for 250 Amp applications.
• 3-Pole Configuration: Configured with three poles.
• Electronic Trip Design: Features an electronic trip design.
• Current-Limiting Construction: Current-limiting construction to meet the electrical requirements of existing installations.
• Built to Last: Built to last for demanding commercial and industrial applications and designed as a form, fit, and functional replacement for compatible equipment.


Technical Specifications

• Part Number: SFLA36AT0250

• Product Line: SF250 Line

• Type: SFLA

• Configuration: Frame Only

• Poles: 3

• Amperage: 250A

• Trip Type: Electronic

• A.I.C. Rating:
  • 25kA @ 600VAC
  • 65kA @ 480VAC
  • 100kA @ 240VAC
• Dimensions:
  • Height: 10.12 in.
  • Width: 4.12 in.
  • Depth: 3.38 in.

Material Compliance and Certifications

• Commercial and Industrial Use: Manufactured for use in commercial and industrial electrical distribution systems.
• Installation Requirements: Install in accordance with applicable electrical codes and manufacturer recommendations.
• Compatibility Verification: Confirm compatibility, voltage, interrupting rating, and application requirements before installation.


Where It Works Best

• The SFLA36AT0250 is commonly used in manufacturing facilities, commercial buildings, processing plants, electrical distribution equipment, and other three-phase power systems requiring a compatible 250 Amp SF250 Line breaker frame. Because this is a frame-only unit, it is intended for applications where the original frame style and ratings need to be maintained.
