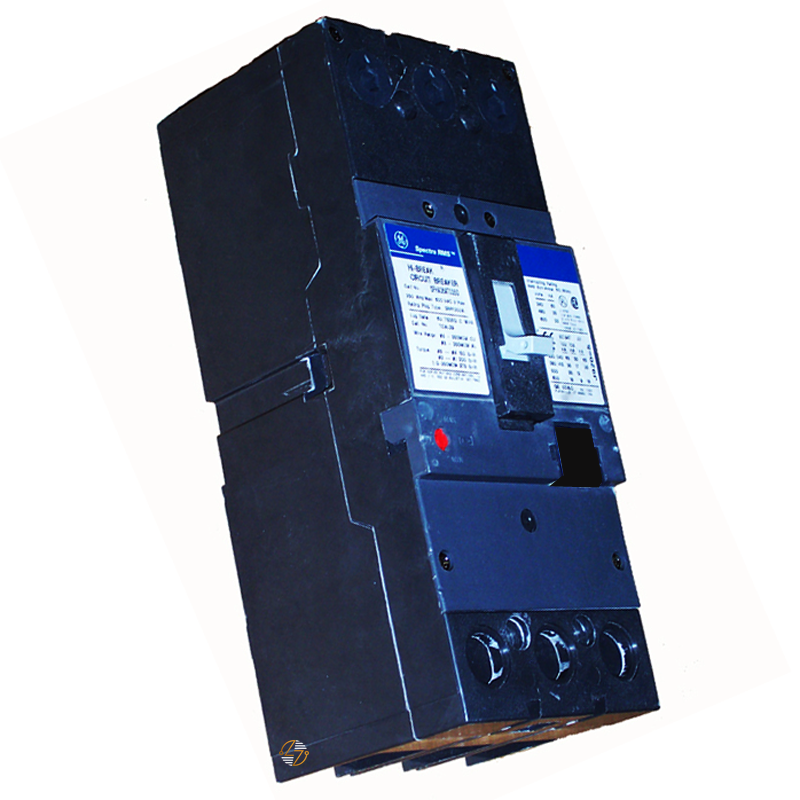

SFHA36AT0250 with 200Amp Rating Plug

SFHA36AT0250 with 200Amp Rating Plug

When keeping an existing electrical distribution system operating, choosing the right replacement breaker is about more than matching the amperage. The SFHA36AT0250 is a 3-pole, 200 amp industrial molded case circuit breaker from the SF250 Line, built for applications that require the proper fit, electrical ratings, and dependable circuit protection. It features a current-limiting design and an electronic trip unit, along with an included 200 amp rating plug that establishes the breaker's continuous current rating. Load-side lug terminals are also included, making installation into compatible equipment more straightforward. Built to last, this breaker is commonly used as a form, fit, and functional replacement in existing commercial and industrial electrical systems where maintaining compatibility is the priority. Whether you're replacing a failed breaker during maintenance or restoring equipment to service, the SFHA36AT0250 delivers the specifications needed to match the original application without unnecessary modifications.

Key Features and Benefits

• 200 Amp Rating Plug Included: 200 amp rating plug included.
• 3-Pole Configuration: 3-pole configuration for three-phase power systems.
• Electronic Trip Unit: Electronic trip unit for overcurrent protection.
• Current-Limiting Design: Current-limiting design for applications requiring reduced fault current let-through.
• SF250 Line: Part of the SF250 Line.
• Load-Side Lug Terminals: Load-side lug terminals included.
• Form, Fit, and Functional Replacement: Designed as a form, fit, and functional replacement for compatible equipment.
• Built to Last: Built to last in demanding commercial and industrial environments.


Technical Specifications

• Part Number: SFHA36AT0250

• Type: SFHA

• Product Line: SF250

• Poles: 3

• Amperage: 200A

• Trip Unit: Electronic Trip

• Rating Plug: 200 Amp Included

• Current Limiting: Yes

• Interrupting Rating:
  • 22kA @ 600VAC
  • 35kA @ 480VAC
  • 65kA @ 240VAC
• Dimensions:
  • Height: 10.12 in.
  • Width: 4.12 in.
  • Depth: 3.38 in.
• Terminals: Load-side Lug Terminals Included


Material Compliance and Certifications

• Commercial and Industrial Applications: Designed for commercial and industrial electrical distribution systems.
• Product Family: Manufactured to the specifications of the SF250 product family.
• Installation Notice: Verify compatibility with your equipment, available fault current, and applicable electrical codes before installation.


Where It Works Best

• The SFHA36AT0250 is a good fit for commercial facilities, manufacturing plants, industrial equipment, switchboards, panelboards, motor control applications, and other three-phase electrical distribution systems that require a 200 amp, 3-pole molded case circuit breaker with an electronic trip unit. It's especially well suited for maintenance projects where replacing an existing breaker with a compatible form, fit, and functional equivalent helps keep downtime to a minimum while preserving the original system design.
