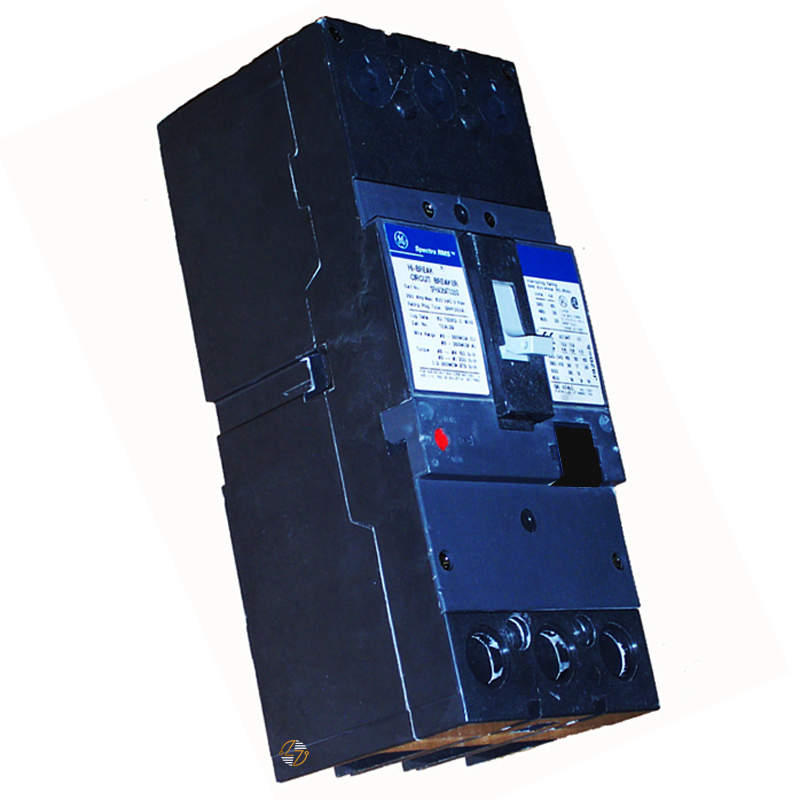

SFHA36AT0250 - 250Amp Max. *Frame Only*

SFHA36AT0250 - 250Amp Max. *Frame Only*

If you're replacing an existing SFHA36AT0250 circuit breaker frame, matching the original specifications matters. This 250 Amp, 3-pole Type SFHA molded case circuit breaker frame is part of the SF250 line and is intended for applications that require a compatible form, fit, and functional replacement. It features a current-limiting design and is used with an electronic trip configuration in commercial and industrial electrical systems.

This is the frame only, making it a practical option when the existing installation calls for a replacement frame rather than a complete breaker assembly. Its dimensions and electrical ratings are designed to match compatible equipment, helping maintenance personnel keep existing systems operating without unnecessary modifications. Built to last, the SFHA36AT0250 is commonly found in power distribution equipment, switchgear, and other electrical installations where dependable circuit protection is required.

Key Features and Benefits

• Part Number: SFHA36AT0250
• 250 Amp Current Rating: 250 Amp current rating.
• Three-Pole Configuration: Three-pole configuration.
• Type SFHA Molded Case Circuit Breaker Frame: Type SFHA molded case circuit breaker frame.
• SF250 Series: SF250 series.
• Current-Limiting Design: Current-limiting design.
• Electronic Trip Configuration: Electronic trip configuration.
• Frame Only: Frame only (does not include a complete breaker assembly).
• Form, Fit, and Functional Replacement: Form, fit, and functional replacement for compatible equipment.
• Built to Last: Built to last in commercial and industrial applications.


Technical Specifications

• Part Number: SFHA36AT0250

• Type: SFHA

• Amperage: 250 Amps

• Poles: 3

• A.I.C. Rating: 22kA @ 600VAC; 35kA @ 480VAC; 65kA @ 240VAC

• Dimensions:
  • Height: 10.12 in.
  • Width: 4.12 in.
  • Depth: 3.38 in.
• Notes: SF250 Line, Current Limiting, Electronic Trip, Frame Only


Material Compliance and Certifications

• Manufactured for Use: Manufactured for use in compatible electrical distribution equipment.
• Published Electrical Ratings: Designed to meet the published electrical ratings for the SF250 series when used with compatible components.
• Installation: Installation should follow applicable electrical codes and manufacturer recommendations.
• Compatibility: Verify compatibility before installation.


Where It Works Best

• The SFHA36AT0250 is used in commercial buildings, manufacturing facilities, industrial plants, switchgear, panelboards, and other power distribution equipment that requires a compatible 250 Amp, 3-pole Type SFHA breaker frame. It is well suited for maintenance and repair work where preserving the original equipment configuration is important.
