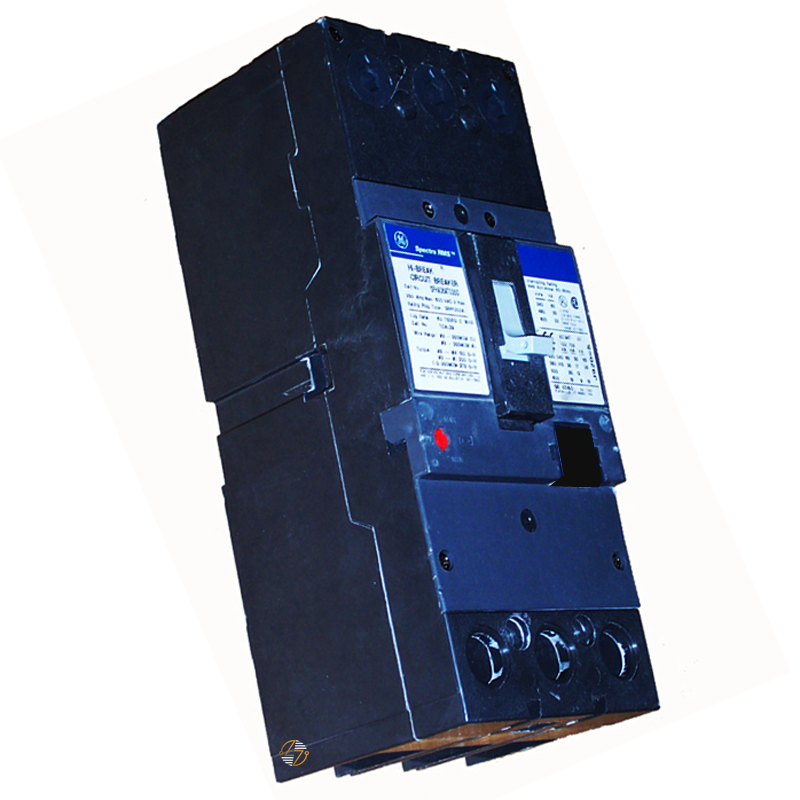

SFHA24AT0250 - 250Amp Max. *Frame Only*

SFHA24AT0250 - 250Amp Max. *Frame Only*

When you need a compatible replacement for an existing SF250 line electrical system, the SFHA24AT0250 offers the form, fit, and functionality required to help keep your equipment in service. This 2-pole, 250-amp industrial molded case circuit breaker frame is designed for applications that use an electronic trip configuration and current-limiting protection. Please note that this is the frame only and does not include the electronic trip unit.

With interrupting ratings of 35kA at 480VAC and 65kA at 240VAC, the SFHA24AT0250 is intended for use in compatible commercial and industrial power distribution systems where maintaining the original equipment configuration is important. Whether you're servicing a switchboard, panelboard, or other electrical distribution equipment, matching the correct frame type helps ensure proper installation and compatibility. Built to last, this SFHA breaker frame provides a dependable replacement option for maintaining existing electrical systems without changing the original design.

Key Features and Benefits

• SFHA24AT0250 Industrial Molded Case Circuit Breaker Frame: Designed as a form, fit, and functional replacement for compatible SF250 line equipment.
• Frame Only: Electronic trip unit is not included.
• 2-Pole Configuration: Configured with 2 poles for compatible applications.
• 250 Amp Frame Rating: Rated for 250 amps.
• Current-Limiting Design: Designed for compatible current-limiting applications.
• Interrupting Capacity:
  • 35kA @ 480VAC
  • 65kA @ 240VAC
• Built to Last: Built to last in commercial and industrial electrical environments.


Technical Specifications

• Part Number: SFHA24AT0250

• Type: SFHA

• Product Type: Industrial Molded Case Circuit Breaker Frame

• Frame Series: SF250 Line

• Poles: 2

• Amperage: 250A

• Trip Type: Electronic Trip (Frame Only)

• Current Limiting: Yes

• A.I.C. Rating: 35kA @ 480VAC; 65kA @ 240VAC

• Dimensions:
  • Height: 10.12 in.
  • Width: 4.12 in.
  • Depth: 3.38 in.

Material Compliance and Certifications

• Installation Requirements: The SFHA24AT0250 is manufactured for use in compatible low-voltage electrical distribution systems. Installation should always be performed by qualified personnel in accordance with applicable electrical codes and the equipment manufacturer's specifications. Verify compatibility, frame type, and electrical ratings before installation.


Where It Works Best

• The SFHA24AT0250 is commonly used in commercial, industrial, and institutional electrical systems where the SF250 line breaker frame is specified. It is well suited for switchboards, panelboards, motor control equipment, and other power distribution applications that require a 250-amp, 2-pole SFHA frame. As a form, fit, and functional replacement, it helps maintain existing equipment without modifying the original system design.
