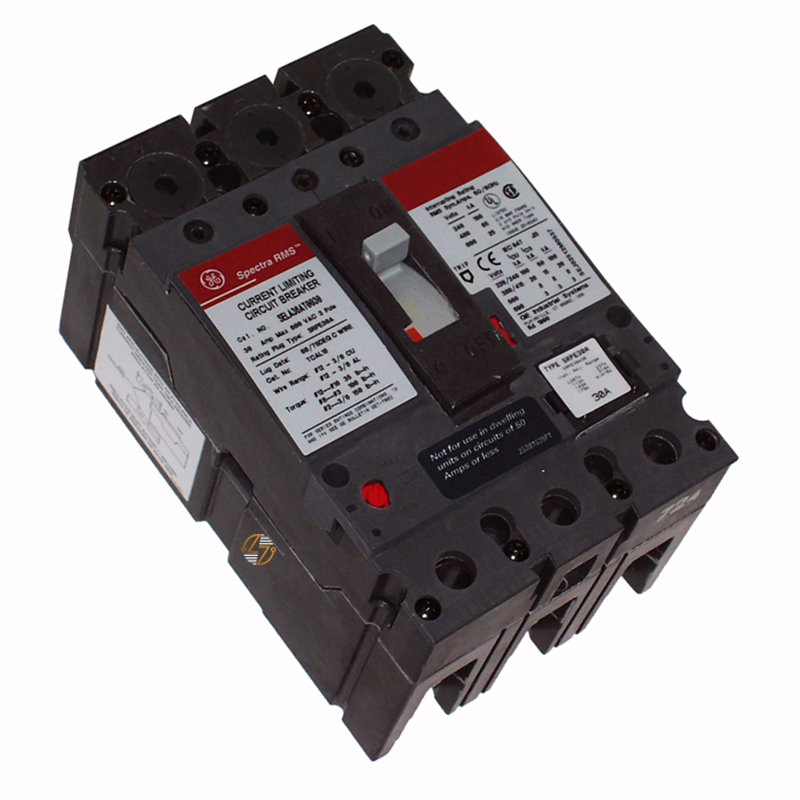

SEPA36AT0100 - 100Amp Max. *Frame Only*

SEPA36AT0100 - 100Amp Max. *Frame Only*

If you're maintaining an existing electrical distribution system, finding the correct replacement frame matters. The SEPA36AT0100 is a 3-pole, 100-amp molded-case circuit breaker frame from the SE150 Line, designed for use in compatible commercial and industrial applications. This is a frame-only unit designed for breakers that use an electronic trip system, making it a suitable replacement when the original frame needs to be replaced while keeping the rest of the assembly compatible.

With interrupting ratings of 65kA at 600VAC, 100kA at 480VAC, and 200kA at 240VAC, the SEPA36AT0100 is designed for electrical systems that require these ratings. It's commonly found in manufacturing facilities, industrial plants, commercial buildings, and other environments where dependable power distribution is essential. Built to last, this breaker frame is intended to provide the proper form, fit, and function for compatible installations. Since this listing is for the frame only, be sure your existing electronic trip components are compatible before installation.

Key Features and Benefits

• Part Number: SEPA36AT0100
• Industrial Molded Case Circuit Breaker Frame: Industrial molded case circuit breaker frame.
• Frame Only: Frame only.
• SE150 Line: SE150 Line.
• Electronic Trip Configuration: Electronic trip configuration.
• 100 Amp Rating: 100 Amp rating.
• 3-Pole Design: 3-pole design.
• Interrupting Ratings:
  • 65kA @ 600VAC
  • 100kA @ 480VAC
  • 200kA @ 240VAC
• Built to Last: Built to last for demanding commercial and industrial applications.
• Form, Fit, and Functional Replacement: Designed as a form, fit, and functional replacement for compatible equipment.


Technical Specifications

• Part Number: SEPA36AT0100

• Type: SEPA

• Product Line: SE150 Line

• Configuration: Frame Only

• Trip Type: Electronic Trip

• Amperage: 100 Amps

• Poles: 3

• Interrupting Rating: 65kA @ 600VAC; 100kA @ 480VAC; 200kA @ 240VAC

• Dimensions:
  • Height: 6.50 in.
  • Width: 4.13 in.
  • Depth: 3.38 in.

Material Compliance and Certifications

• Intended Use: Intended for use in compatible industrial and commercial electrical systems.
• Electrical Ratings: Electrical ratings correspond to the SE150 Line product family.
• Compatibility: Verify compatibility with your existing equipment before installation.
• Installation Requirements: Install according to applicable electrical codes and manufacturer requirements.


Where It Works Best

• The SEPA36AT0100 is often used in:
  • Manufacturing facilities
  • Commercial buildings
  • Industrial plants
  • Distribution equipment
  • Motor control applications
  • Process control systems
  • Maintenance projects involving compatible SE150 Line equipment
