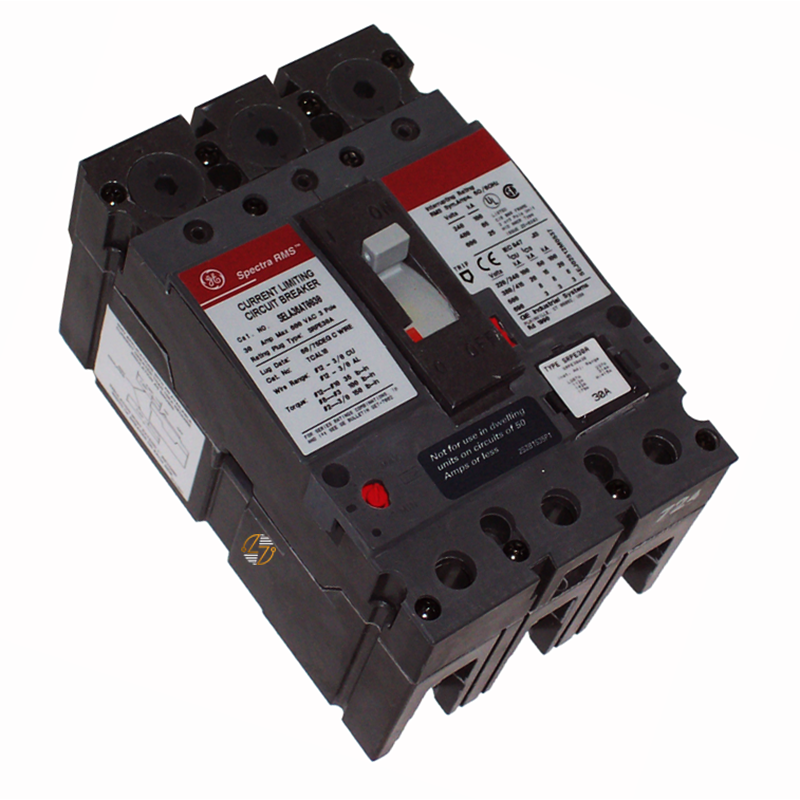

SEPA36AT0060 - 60Amp Max. *Frame Only*

SEPA36AT0060 - 60Amp Max. *Frame Only*

When you need a compatible replacement breaker for an existing SE150 Series installation, the SEPA36AT0060 delivers the form, fit, and electrical ratings required to keep your system configured as intended. This 3-pole, 60-amp molded-case circuit breaker features an electronic trip unit that provides dependable overcurrent protection for commercial and industrial electrical systems. Offered as a frame only, this breaker is intended for applications where the existing installation calls for a compatible Type SEPA device. With interrupting ratings of 65kA at 600VAC, 100kA at 480VAC, and 200kA at 240VAC, it is well-suited for demanding electrical environments where proper fault protection is essential. Built to last, the SEPA36AT0060 is an excellent choice for maintaining legacy equipment while preserving the original system design and electrical specifications.

Key Features and Benefits

• 60 Amp Current Rating: 60 Amp current rating for commercial and industrial power distribution.
• 3-Pole Design: 3-pole design for three-phase electrical systems.
• Type SEPA: Type SEPA industrial molded case circuit breaker.
• SE150 Product Line: Part of the SE150 Line.
• Electronic Trip Unit: Electronic trip unit for dependable overcurrent protection.
• Frame Only Configuration: Frame Only configuration.
• High Interrupting Capacity:
  • 65kA @ 600VAC
  • 100kA @ 480VAC
  • 200kA @ 240VAC
• Form, Fit, and Functional Replacement: Designed as a form, fit, and functional replacement for compatible SE150 Series applications.
• Built to Last: Built to last for demanding industrial environments.


Technical Specifications

• Part Number: SEPA36AT0060

• Product Line: SE150

• Type: SEPA

• Breaker Type: Industrial Molded Case Circuit Breaker

• Configuration: Frame Only

• Trip Unit: Electronic Trip

• Poles: 3

• Amperage: 60A

• Interrupting Ratings:
  • 65kA @ 600VAC
  • 100kA @ 480VAC
  • 200kA @ 240VAC
• Dimensions:
  • Height: 6.5 in.
  • Width: 4.13 in.
  • Depth: 3.38 in.

Material Compliance and Certifications

• Commercial and Industrial Applications: Designed for use in compatible commercial and industrial electrical distribution systems.
• Application Requirements: Intended for applications matching the published electrical ratings and system requirements.
• Installation: Install in accordance with applicable electrical codes and manufacturer recommendations.
• Compatibility: Verify compatibility before installation to ensure proper fit and operation.


Where It Works Best

• The SEPA36AT0060 is commonly used in manufacturing facilities, commercial buildings, processing plants, electrical distribution equipment, motor control applications, and other three-phase power systems requiring a 60A, 3-pole SE150 Series molded case circuit breaker. Because this unit is supplied as a frame-only unit, it is best suited for maintaining compatibility with legacy equipment when preserving the original design and electrical ratings is important.
