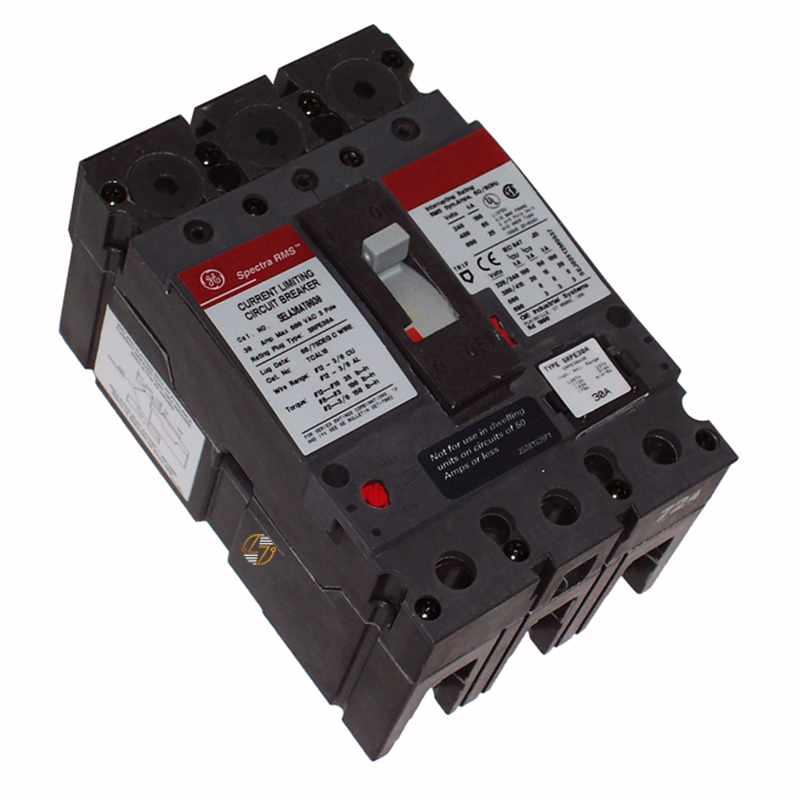

SEPA36AT0030 - 30Amp Max. *Frame Only*

SEPA36AT0030 - 30Amp Max. *Frame Only*

If you're replacing a compatible breaker frame in an existing SE150 system, the SEPA36AT0030 is built for that job. This 3-pole, 30-amp Type SEPA molded case circuit breaker frame features an electronic trip design and is intended for use in commercial and industrial power distribution equipment. Rated at 65 kA at 600 VAC, 100 kA at 480 VAC, and 200 kA at 240 VAC, it is suitable for applications requiring higher interrupting capacity. This listing is for the frame only, making it a practical choice when maintaining compatible legacy equipment. Rather than changing out an entire system, many facilities replace individual components to keep equipment operating with the original form, fit, and function. Like the rest of the SE150 family, this breaker frame was built for long-term service in demanding electrical environments.

Key Features and Benefits

• Part Number: SEPA36AT0030.
• Type SEPA: Type SEPA molded case circuit breaker frame.
• Compatible SE150 Systems: Designed for compatible SE150 systems.
• 3-Poles: 3 poles.
• 30 Amp Current Rating: 30 Amp current rating.
• Electronic Trip Configuration: Electronic trip configuration.
• Interrupting Ratings:
  • 65kA @ 600VAC
  • 100kA @ 480VAC
  • 200kA @ 240VAC
• Frame Only: Frame only.
• Form, Fit, and Functional Replacement: Form, fit, and functional replacement for compatible applications.
• Built for Years of Service: Built for years of service in industrial environments.


Technical Specifications

• Part Number: SEPA36AT0030

• Type: SEPA

• Product Line: SE150

• Configuration: Frame Only

• Trip Type: Electronic Trip

• Poles: 3

• Amperage: 30

• A.I.C. Rating:
  • 65kA @ 600VAC
  • 100kA @ 480VAC
  • 200kA @ 240VAC
• Dimensions:
  • Height: 6.50 in.
  • Width: 4.13 in.
  • Depth: 3.38 in.

Material Compliance and Certifications

• Industrial Electrical Systems: This breaker frame is manufactured for use in compatible industrial electrical systems and is designed to match the original specifications of the SE150 product family.
• Compatibility: Confirm compatibility before installation.
• Installation: Installation should always be performed by qualified personnel and in accordance with applicable electrical codes and manufacturer recommendations.


Where It Works Best

• The SEPA36AT0030 is commonly found in commercial buildings, manufacturing facilities, processing plants, and other industrial environments that use compatible SE150 electrical equipment. It works well in switchboards, panelboards, motor control centers, and similar three-phase distribution systems that require a 30-amp, 3-pole Type SEPA breaker frame.
