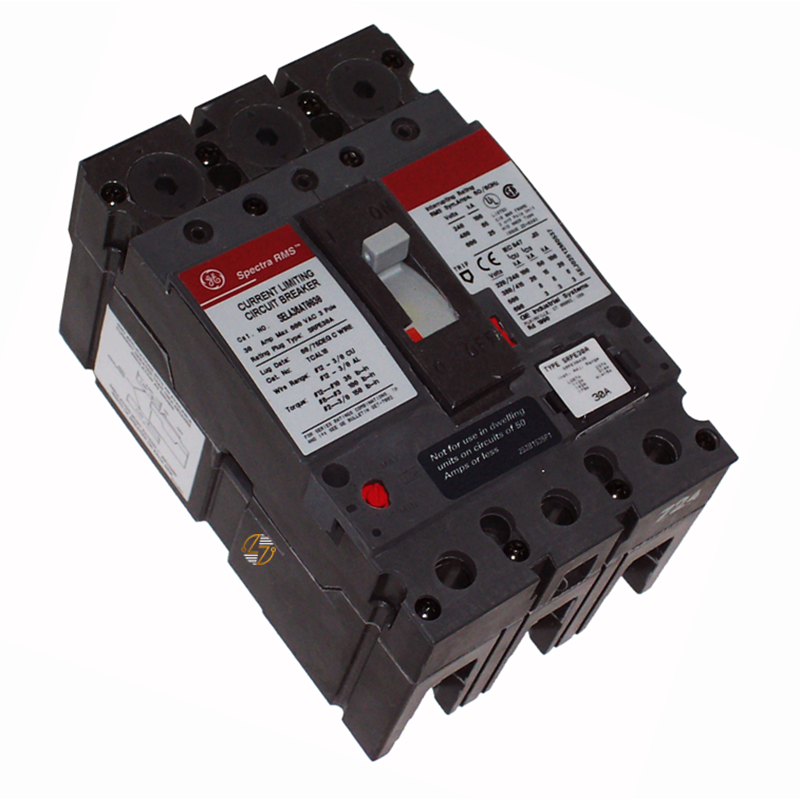

SELA36AT0150 - 150Amp Max. *Frame Only*

SELA36AT0150 - 150Amp Max. *Frame Only*

If you're replacing an existing SELA Series molded case circuit breaker frame, the SELA36AT0150 is designed to provide the form, fit, and function needed to keep your electrical distribution system operating as intended. This 3-pole, 150 amp industrial molded case circuit breaker belongs to the SE150 line and features an electronic trip design, making it a practical solution for maintaining compatible commercial and industrial electrical equipment.

Built to last, this frame-only unit is intended for applications where the existing installation requires a compatible replacement rather than a different breaker style. With interrupting ratings of 25kA at 600VAC, 65kA at 480VAC, and 100kA at 240VAC, the SELA36AT0150 is designed to help protect electrical systems from overcurrent and short-circuit conditions when installed within its rated application. Whether you're servicing a manufacturing facility, maintaining plant equipment, or repairing commercial power distribution systems, this breaker frame helps restore your system while preserving the original design and compatibility of your equipment.

Key Features and Benefits

• 150 Amp Current Rating: 150 Amp current rating for commercial and industrial power distribution.
• Three-Pole Design: Three-pole design for three-phase electrical systems.
• SE150 Line: Part of the SE150 Line with an electronic trip configuration.
• Frame Only Design: Frame only design for form, fit, and functional replacement applications.
• High Interrupting Capacity:
  • 25kA @ 600VAC
  • 65kA @ 480VAC
  • 100kA @ 240VAC
• Compatibility: Helps maintain compatibility with existing SELA Series equipment.
• Built to Last: Built to last for dependable service in demanding electrical environments.


Technical Specifications

• Part Number: SELA36AT0150

• Type: SELA

• Product Line: SE150 Line

• Configuration: Frame Only

• Trip Type: Electronic Trip

• Poles: 3

• Amperage: 150A

• Interrupting Rating: 25kA @ 600VAC; 65kA @ 480VAC; 100kA @ 240VAC

• Dimensions:
  • Height: 6.50 in.
  • Width: 4.13 in.
  • Depth: 3.38 in.

Material Compliance and Certifications

• Commercial and Industrial Use: Designed for use in commercial and industrial electrical distribution systems.
• Electrical Ratings: Manufactured to meet the electrical ratings specified for the SELA product family when properly installed.
• Installation Requirements: Always verify compatibility with your equipment and follow applicable electrical codes and manufacturer installation requirements.


Where It Works Best

• The SELA36AT0150 is commonly used in industrial facilities, manufacturing plants, commercial buildings, switchboards, panelboards, motor control centers, and other three-phase electrical distribution systems that require a compatible SELA Series breaker frame. It's especially well suited for maintenance and repair projects where preserving the original equipment's form, fit, and function is the priority, helping extend the service life of existing electrical infrastructure without requiring modifications.
