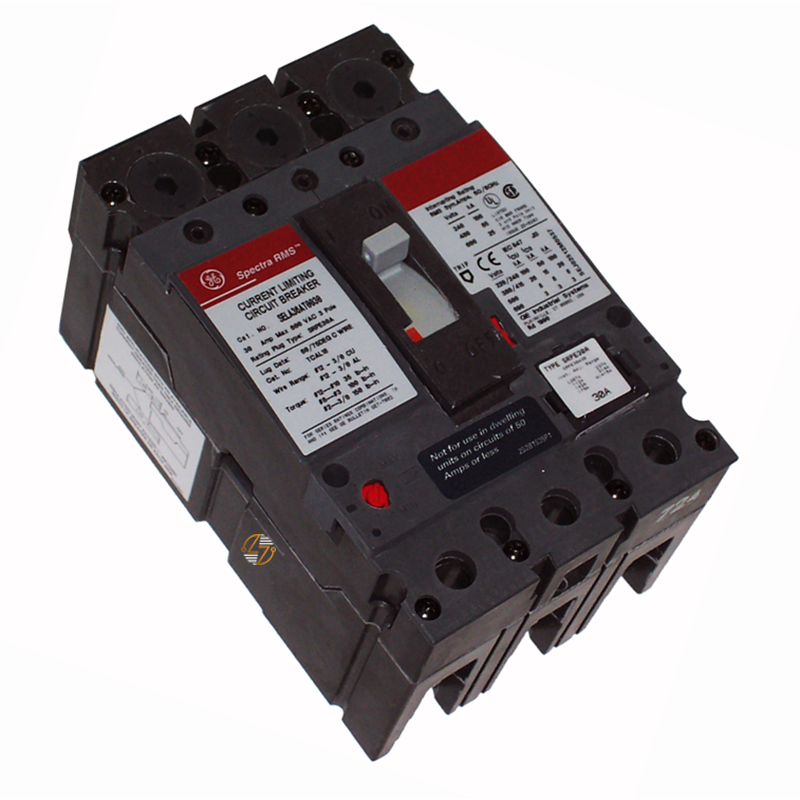

SELA36AT0100 - 100Amp Max. *Frame Only*

SELA36AT0100 - 100Amp Max. *Frame Only*

When you need a compatible replacement for an existing SE150 Line electrical distribution system, the SELA36AT0100 molded case circuit breaker frame delivers the form, fit, and functionality your equipment was designed for. This 3-pole, 100-amp Type SELA breaker frame is built for industrial applications that demand dependable circuit protection and long-lasting construction. Supplied as a frame only, it is intended for applications where the electronic trip components are installed separately or reused from an existing assembly.

With interrupting ratings of 25kA at 600VAC, 65kA at 480VAC, and 100kA at 240VAC, the SELA36AT0100 is designed for use in commercial and industrial power distribution systems where the proper interrupting capacity is essential. Its compact footprint makes installation into compatible equipment straightforward, helping maintenance teams keep existing systems operating without changing the original design. Built to last, this breaker frame is an excellent choice when maintaining legacy electrical equipment that requires a compatible replacement.

Key Features and Benefits

• Type SELA Industrial Molded Case Circuit Breaker Frame: Type SELA industrial molded case circuit breaker frame.
• SE150 Line: Designed for use with the SE150 Line.
• 100 Amp Current Rating: 100 Amp current rating.
• Three-Pole Configuration: 3-pole configuration for three-phase electrical systems.
• Electronic Trip Design: Electronic trip design (frame only; trip unit not included).
• Interrupting Ratings:
  • 25kA @ 600VAC
  • 65kA @ 480VAC
  • 100kA @ 240VAC
• Form, Fit, and Functional Replacement: Form, fit, and functional replacement for compatible installations.
• Compact Design: Compact design for installation in existing equipment.
• Built to Last: Built to last in demanding commercial and industrial environments.


Technical Specifications

• Part Number: SELA36AT0100

• Type: SELA

• Product Family: SE150 Line

• Product Style: Industrial Molded Case Circuit Breaker Frame

• Configuration: Frame Only

• Trip Type: Electronic Trip

• Poles: 3

• Amperes: 100A

• A.I.C. Rating: 25kA @ 600VAC; 65kA @ 480VAC; 100kA @ 240VAC

• Dimensions:
  • Height: 6.50 in.
  • Width: 4.13 in.
  • Depth: 3.38 in.

Material Compliance and Certifications

• Industrial Electrical Distribution Systems: Manufactured for use in compatible industrial electrical distribution systems.
• SE150 Line Compatibility: Designed for installation in equipment utilizing the SE150 Line.
• Qualified Installation: Intended for installation by qualified personnel in accordance with applicable electrical codes and manufacturer specifications.
• Compatibility Verification: Verify voltage, interrupting capacity, and equipment compatibility before installation.


Where It Works Best

• The SELA36AT0100 is commonly used in commercial buildings, manufacturing facilities, industrial plants, distribution equipment, switchboards, panelboards, and motor control applications that utilize compatible SE150 Line systems. Because this model is supplied as a frame-only unit, it works well for maintenance projects where the existing electronic trip assembly is retained or replaced separately. It's an ideal solution for keeping compatible electrical systems in service while maintaining the original equipment configuration.
