GENERAL ELECTRIC

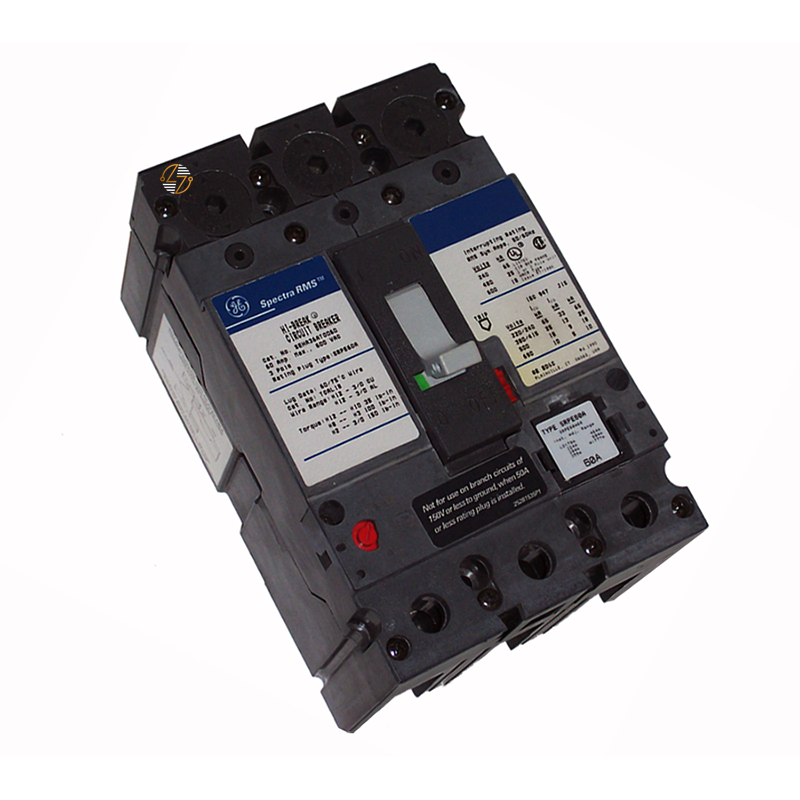

SEHA24AT0060 - 60Amp Max. *Frame Only*

SEHA24AT0060 - 60Amp Max. *Frame Only*

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Sold out
Shipping calculated at checkout.
Condition

SEHA24AT0060 - 60Amp Max. *Frame Only*

Finding the right circuit breaker component for your existing electrical system isn't just about matching the amperage. The frame configuration, physical dimensions, electrical ratings, and trip unit requirements must all align. The SEHA24AT0060 Circuit Breaker Frame is a 60-amp, 2-pole industrial molded case circuit breaker frame from the SE150 line, intended for compatible electrical equipment that requires an SEHA frame. For electricians and maintenance professionals working with established installations, it provides a practical way to maintain the original equipment configuration.

The SEHA24AT0060 has a listed 60-amp configuration and is associated with interrupting ratings of 25,000 amps (25kA) at 480VAC and 65,000 amps (65kA) at 240VAC. These specifications help you evaluate the intended circuit breaker assembly against the electrical requirements of an existing installation. However, because this product is frame only, confirm the ratings for the completed assembly in the manufacturer's documentation. The frame by itself should not be considered a complete overcurrent protection device.

Key Features and Benefits

  • 60-Amp Listed Configuration
  • Two-Pole Design
  • SEHA Frame Type
  • SE150 Product Line
  • Electronic Trip System Compatibility
  • Industrial Molded Case Construction
  • Defined Interrupting Ratings
  • Specified Physical Dimensions
  • Legacy Electrical System Compatibility
  • Frame-Only Configuration

Technical Specifications

  • Part Number: SEHA24AT0060
  • Product Type: Industrial Molded Case Circuit Breaker Frame
  • Product Line: SE150
  • Frame Type: SEHA
  • Trip System: Electronic Trip
  • Supplied Configuration: Frame Only
  • Number of Poles: 2
  • Listed Amperage: 60 Amps
  • Specified Interrupting Rating at 480VAC: 25,000 Amps (25kA)
  • Specified Interrupting Rating at 240VAC: 65,000 Amps (65kA)
  • Height: 6.50 inches
  • Width: 4.13 inches
  • Depth: 3.38 inches
  • Overall Dimensions: 4.13"W x 6.50"H x 3.38"D
  • Shipping Weight: 6.0 lbs.

Material Compliance and Certifications

The SEHA24AT0060 belongs to the SE150 line of industrial molded case circuit breaker equipment. Its available specifications identify a two-pole SEHA frame, a listed 60-amp configuration, and interrupting ratings of 25kA at 480VAC and 65kA at 240VAC. These characteristics matter when evaluating the component for use in an existing electrical distribution system.

The available product information does not confirm the exact material composition, UL listing, CSA certification, ANSI compliance, or other regulatory approvals. Where specific certifications are required, consult the manufacturer's technical documentation and the markings on the individual component and completed breaker assembly.

Where It Works Best

  • Legacy Electrical Distribution Systems
  • Industrial Electrical Maintenance
  • Commercial Electrical Equipment
  • SE150 Line Equipment Applications
  • Existing Molded Case Breaker Assemblies
  • Electronic Trip Breaker Maintenance
  • Compatible Two-Pole Electrical Systems
  • Facility Maintenance and Repairs
