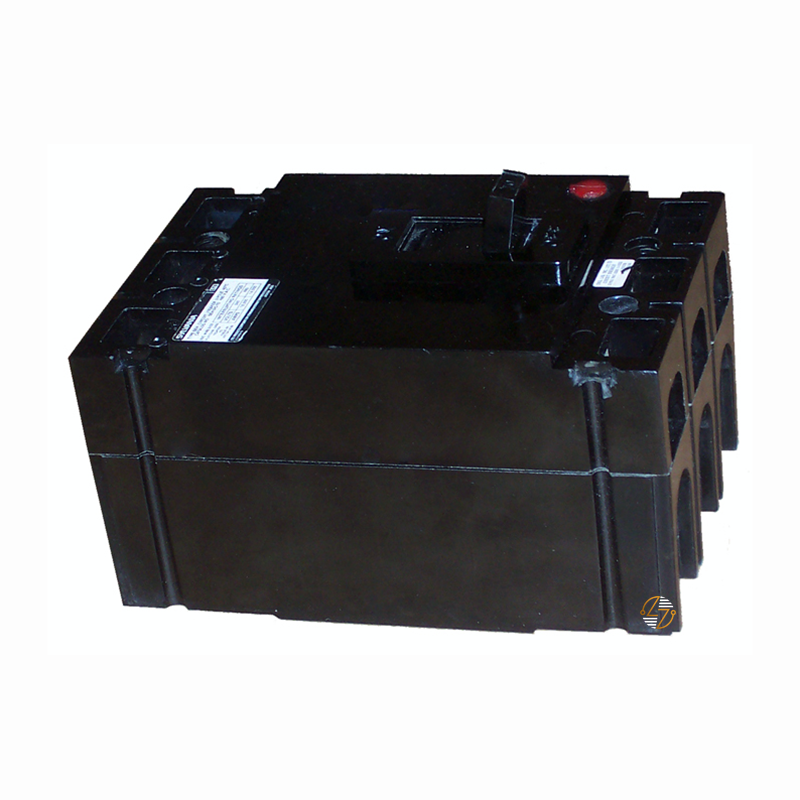

SEH3C100 - 100 Amp Circuit Breaker

SEH3C100 - 100 Amp Circuit Breaker

Your go‑to solution for safe, dependable protection in commercial and industrial electrical systems. The SEH3C100 Circuit Breaker delivers dependable overload and short‑circuit protection with its 100 Amp rating and precision thermal‑magnetic trip mechanism. Built for endurance and continuous performance, it’s ideal for demanding applications.

Key Features and Benefits

• 100 Amp Protection – Provides reliable overload and short‑circuit safety for critical circuits in commercial and industrial panels.
• High Temperature Rating (40 °C) – Tested to maintain stable performance even in heat‑intensive environments.
• Thermal‑Magnetic Trip Technology – Combines two protection methods to trip accurately, giving you consistent safety and fewer false trips.
• Space‑Saving Design – Compact frame dimensions (4.13″ W × 6.31″ L × 3.38″ D) make installation on crowded busbars or tight panels effortless.

Technical Specifications

• Poles: 3‑Pole
• Rated Current: 100 Amperes
• Interrupting Capacity (A.I.C.):
  • 18 kA @ 240 VAC
  • 14 kA @ 480 VAC
• Frame Type: SEH
• Dimensions:
  • Width: 4.13 inches
  • Length: 6.31 inches
  • Depth: 3.38 inches
• Weight: 6.5 lbs

Material Compliance and Certifications

• Industry Standards: The SEH3C100 conforms to top-tier industry standards, crafted using high‑grade components that guarantee long‑term reliability and safety. It meets recognized certifications for modern electrical installations—giving you peace of mind that your power distribution equipment is certified and compliant.

Suitability

• Perfect for commercial facilities and industrial control panels that need dependable 3‑pole circuit protection, this breaker works well in:
• Manufacturing and processing facilities
• Office building main distribution panels
• HVAC systems and motor control centers
• Upgrade and retrofit projects where space is limited
