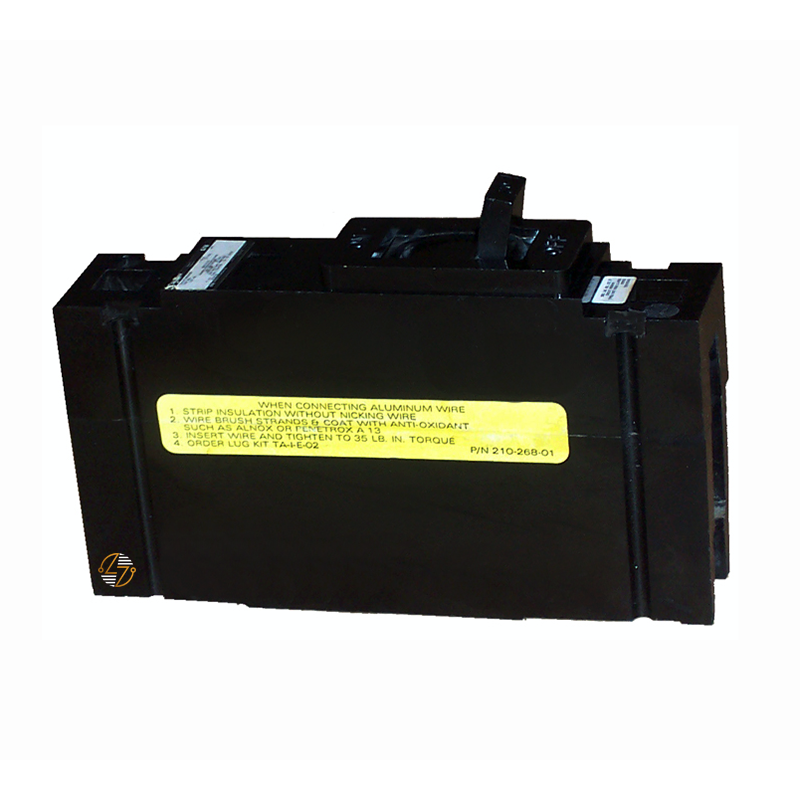

SEH1C15 - 15 Amp Circuit Breaker

SEH1C15 - 15 Amp Circuit Breaker

Engineered to deliver consistent electrical protection in homes, businesses, and light‑industrial settings, the SEH1C15 is a reliable 15‑amp single‑pole breaker built to prevent overloads and short‑circuit damage. Its compact size and dependable thermal‑magnetic trip mechanism make it a smart solution for a wide range of power distribution needs.

Key Features and Benefits

• Dual‑Voltage Interrupting Power: Handles up to 18 kA I.C. at 120 VAC and 14 kA at 277 VAC, ready for diverse electrical circuits.
• Thermal‑Magnetic Protection: Detects both long‑term overload and instantaneous short‑circuit events, helping safeguard wiring and devices.
• Compact & Durable Design: Molded‑case construction rated for ambient temperatures up to 40 °C supports extended service life.
• Bolt‑On Mounting: Simplifies installation in panelboards, making setup fast and secure for electricians and technicians.

Technical Specifications

• Poles: 1 (Single‑Pole)
• Rated Current: 15 Amperes
• Interrupting Capacity:
  • 18 kA @ 120 VAC
  • 14 kA @ 277 VAC
• Frame Type: SEH
• Dimensions:
  • Width: 1.38 inches
  • Length: 6.31 inches
  • Depth: 3.38 inches
• Weight: Approx. 3.5 lbs (≈ 1.6 kg)

Material Compliance and Certifications

• Manufactured to meet rigorous safety and performance standards, the SEH1C15 uses premium-grade components to deliver lasting reliability. It complies with industry norms for molded-case breakers—offering peace of mind for installations in residential, commercial, and industrial power systems.

Suitability

• Ideal for panelboards in small offices, retail spaces, and apartments—this breaker is suited to protecting lighting circuits, HVAC zones, branch circuits, or control panels. Its 277 VAC rating makes it equally practical in commercial lighting systems or industrial buildings. Wherever consistent, everyday circuit protection is needed in a space-saving package, the SEH1C15 is an excellent choice.
