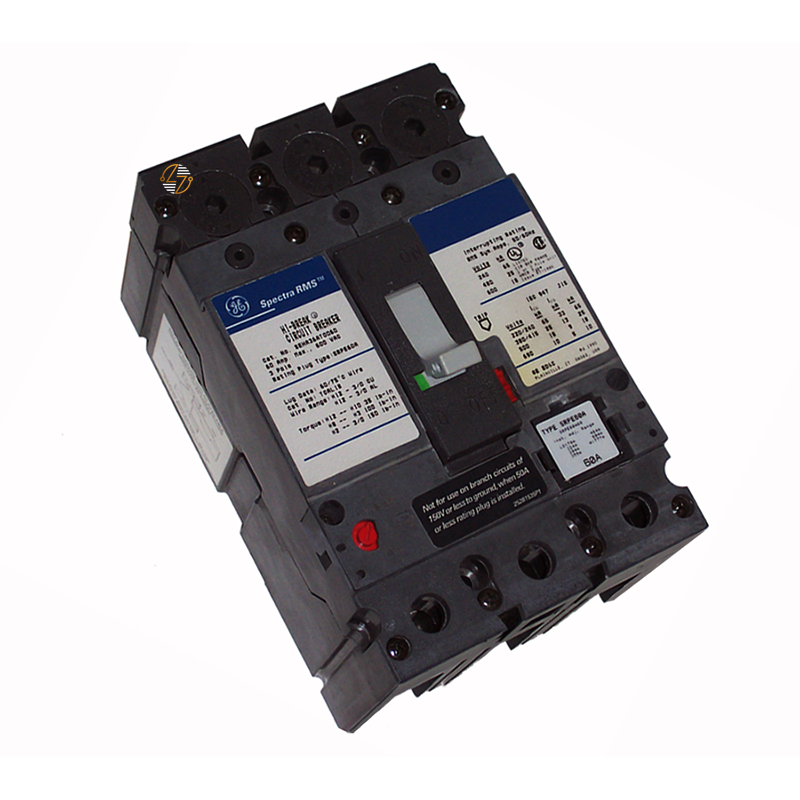

SEDA36AT0100 - 100Amp Max. *Frame Only*
SEDA36AT0100 - 100Amp Max. *Frame Only*
Couldn't load pickup availability
SEDA36AT0100 - 100Amp Max. *Frame Only*
When maintaining an existing electrical distribution system, finding a replacement component with the correct specifications matters. The SEDA36AT0100 is a 100-amp, 3-pole industrial molded case circuit breaker frame from the SE150 product line, featuring an SEHA frame type and an electronic trip configuration. Intended for compatible industrial and commercial electrical equipment, this Frame suits maintenance and replacement applications where preserving the original breaker's form, fit, and function is essential. The SE150 line was developed for industrial electrical applications where equipment is intended to remain in service over extended periods. Whether you're replacing a matching frame, servicing an established distribution system, or maintaining legacy electrical infrastructure, the SEDA36AT0100 supports a straightforward maintenance approach: identify the original specifications, verify compatibility, and preserve the intended breaker configuration.
Key Features and Benefits
- 100-Amp Current Rating:
- 3-Pole Configuration:
- SEHA Frame Type:
- SE150 Product Line:
- Industrial Molded Case Design:
- Electronic Trip Configuration:
- 14kA Interrupting Rating at 600VAC:
- 18kA Interrupting Rating at 480VAC:
- 18kA Interrupting Rating at 240VAC:
- Frame-Only Configuration:
Technical Specifications
-
Part Number: SEDA36AT0100
-
Product Type: Industrial Molded Case Circuit Breaker Frame
-
Product Line: SE150
-
Frame Type: SEHA
-
Number of Poles: 3
-
Amperage: 100 Amps
-
A.I.C. Rating at 600VAC: 14kA
-
A.I.C. Rating at 480VAC: 18kA
-
A.I.C. Rating at 240VAC: 18kA
-
Trip Configuration: Electronic Trip
-
Supplied Component: FRAME ONLY
-
Height: 6.50 Inches
-
Width: 4.13 Inches
-
Depth: 3.38 Inches
-
Dimensions: 4.13"W x 6.50"H x 3.38"D
-
Shipping Weight: 8.5 lbs.
Material Compliance and Certifications
The SEDA36AT0100 SEHA circuit breaker frame is part of the SE150 industrial molded case circuit breaker line. We have not independently verified the specific material composition, UL listing status, ANSI/IEEE conformity, or other certifications for this exact part number.
For installations with defined electrical safety or material compliance requirements, consult the applicable manufacturer documentation and confirm the suitability of the completed breaker assembly.
Where It Works Best
- Industrial Electrical Distribution Systems
- Commercial Electrical Infrastructure
- Legacy SE150 Equipment Maintenance
- Existing SEHA Frame Applications
- Compatible 100-Amp, 3-Pole Breaker Assemblies
- Facility Electrical Maintenance
- Electrical Equipment Repair
- Form, Fit, and Function Replacement Applications
- Scheduled Maintenance and Equipment Servicing
