GENERAL ELECTRIC

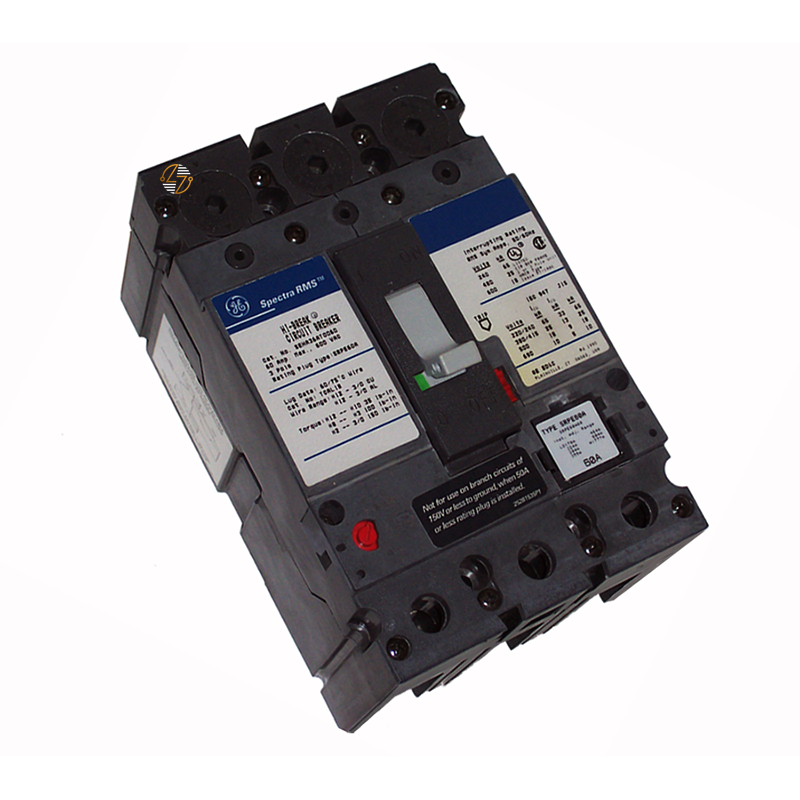

SEDA36AT0060 - 60Amp Max. *Frame Only*
SEDA36AT0060 - 60Amp Max. *Frame Only*
Couldn't load pickup availability
SEDA36AT0060 - 60Amp Max. *Frame Only*
Keeping an established electrical system in service starts with finding components that match its original specifications. The SEDA36AT0060 is a 60-amp, 3-pole industrial molded case circuit breaker frame from the SE150 product line, identified by its SEHA frame type and electronic trip configuration. Industrial molded case circuit breakers are built for long-term service, and selecting the correct replacement components helps preserve the equipment's intended form, fit, and function. Whether you're maintaining legacy SE150 equipment, addressing a damaged breaker frame, or preparing for scheduled electrical maintenance, the SEDA36AT0060 is intended for applications requiring this specific configuration.
Key Features and Benefits
- 60-Amp Current Rating:
- 3-Pole Configuration:
- SEHA Frame Type:
- SE150 Product Line:
- Industrial Molded Case Design:
- Electronic Trip Configuration:
- 14kA Interrupting Rating at 600VAC:
- 18kA Interrupting Rating at 480VAC:
- 18kA Interrupting Rating at 240VAC:
- Frame-Only Configuration:
Technical Specifications
-
Part Number: SEDA36AT0060
-
Product Type: Industrial Molded Case Circuit Breaker Frame
-
Product Line: SE150
-
Frame Type: SEHA
-
Number of Poles: 3
-
Amperage: 60 Amps
-
A.I.C. Rating at 600VAC: 14kA
-
A.I.C. Rating at 480VAC: 18kA
-
A.I.C. Rating at 240VAC: 18kA
-
Trip Configuration: Electronic Trip
-
Supplied Configuration: FRAME ONLY
-
Height: 6.50 Inches
-
Width: 4.13 Inches
-
Depth: 3.38 Inches
-
Dimensions: 4.13"W x 6.50"H x 3.38"D
-
Shipping Weight: 8.5 lbs.
Material Compliance and Certifications
The SEDA36AT0060 SEHA circuit breaker frame is part of the SE150 industrial molded case circuit breaker line. We have not independently verified the specific material composition, UL listing status, ANSI/IEEE conformity, or other certifications for this exact part number.
Where It Works Best
- Industrial Electrical Distribution Systems:
- Commercial Electrical Infrastructure:
- Legacy SE150 Equipment Maintenance:
- Existing SEHA Frame Applications:
- Compatible 60-Amp, 3-Pole Breaker Assemblies:
- Facility Electrical Maintenance:
- Electrical Equipment Repair:
- Form, Fit, and Function Replacement Applications:
