GENERAL ELECTRIC

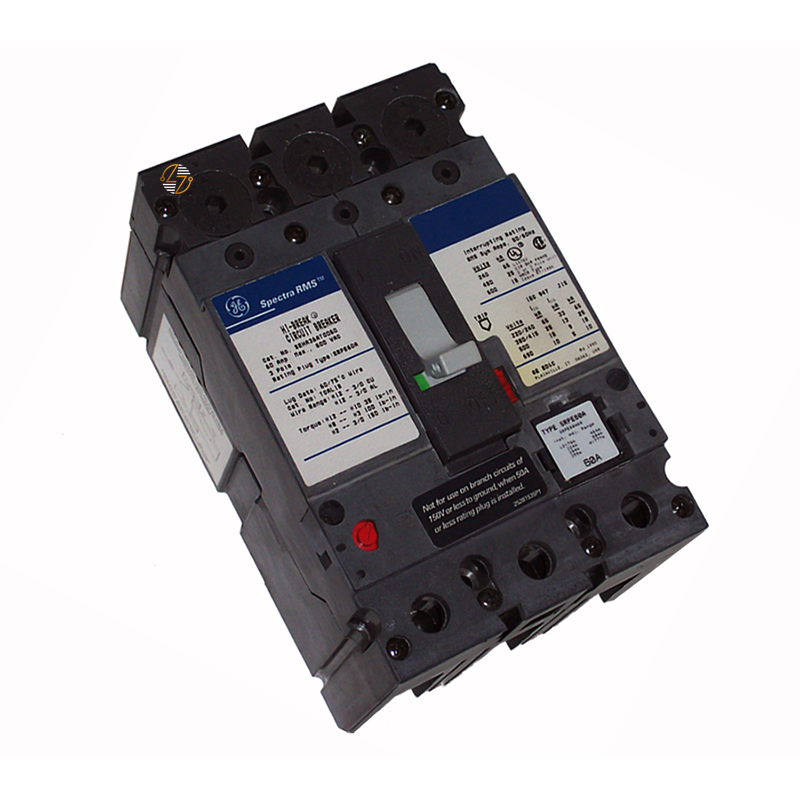

SEDA36AT0030 - 30Amp Max. *Frame Only*
SEDA36AT0030 - 30Amp Max. *Frame Only*
Couldn't load pickup availability
SEDA36AT0030 - 30Amp Max. *Frame Only*
When you're maintaining an existing electrical system, getting the right replacement component matters. The SEDA36AT0030 is a 30-amp, 3-pole industrial molded case circuit breaker frame from the SE150 product line, designed for compatible electronic-trip circuit breaker configurations. With its SEHA frame designation, this component is intended for electrical distribution equipment that requires the corresponding frame type, pole arrangement, and electrical ratings.
Key Features and Benefits
- 30-Amp Current Rating:
- 3-Pole Configuration:
- SEHA Frame Type:
- SE150 Product Line:
- Industrial Molded Case Design:
- Electronic Trip Configuration:
- 14kA Interrupting Rating at 600VAC:
- 18kA Interrupting Rating at 480VAC:
- 18kA Interrupting Rating at 240VAC:
- Frame-Only Component:
Technical Specifications
-
Part Number: SEDA36AT0030
-
Product Type: Industrial Molded Case Circuit Breaker Frame
-
Product Line: SE150
-
Frame Type: SEHA
-
Number of Poles: 3
-
Amperage: 30 Amps
-
A.I.C. Rating at 600VAC: 14kA
-
A.I.C. Rating at 480VAC: 18kA
-
A.I.C. Rating at 240VAC: 18kA
-
Trip Configuration: Electronic Trip
-
Supplied Configuration: FRAME ONLY
-
Height: 6.50 Inches
-
Width: 4.13 Inches
-
Depth: 3.38 Inches
-
Dimensions: 4.13"W x 6.50"H x 3.38"D
-
Shipping Weight: 8.5 lbs.
Material Compliance and Certifications
The SEDA36AT0030 SEHA circuit breaker frame is part of the SE150 industrial molded case circuit breaker line. We have not independently confirmed the specific material composition, UL listing status, ANSI/IEEE conformity, or other certifications for this exact part number.
For installations with defined electrical safety or material requirements, consult the applicable manufacturer documentation and verify that the completed circuit breaker assembly meets the requirements of the existing equipment.
Where It Works Best
- Industrial Electrical Distribution Systems:
- Commercial Electrical Installations:
- Existing SE150 Breaker Assemblies:
- Legacy SEHA Frame Applications:
- Compatible 30-Amp, 3-Pole Configurations:
- Facility Electrical Maintenance:
- Electrical Equipment Repair:
- Form, Fit, and Function Replacement Applications:
