GENERAL ELECTRIC

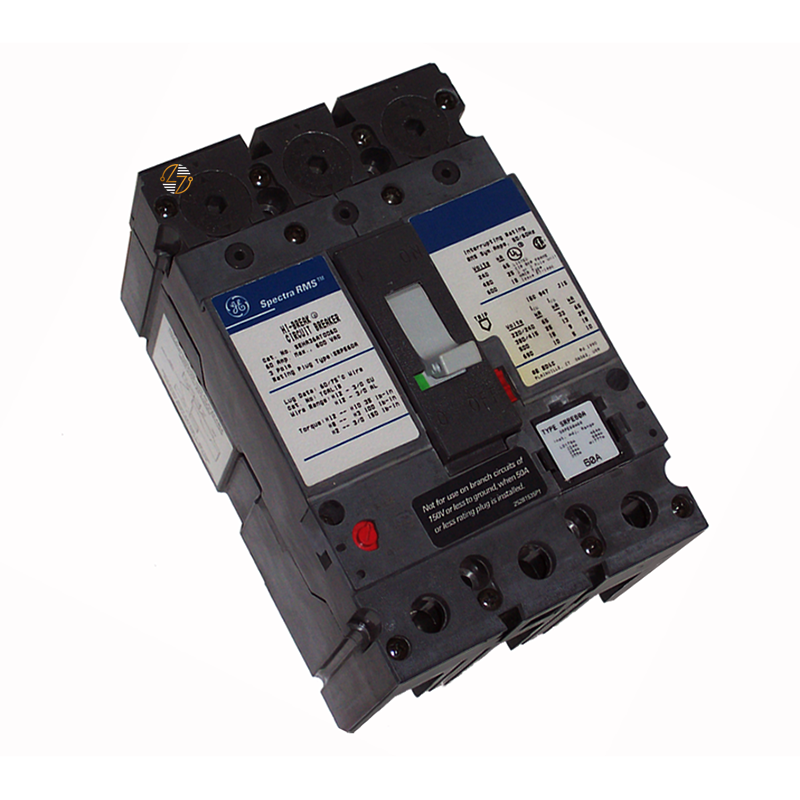

SEDA24AT0100 - 100Amp Max. *Frame Only*
SEDA24AT0100 - 100Amp Max. *Frame Only*
Couldn't load pickup availability
SEDA24AT0100 - 100Amp Max. *Frame Only*
When you're maintaining an existing electrical distribution system, getting the right replacement matters. The SEDA24AT0100 is a 100-amp, 2-pole industrial molded case circuit breaker frame from the SE150 line, designed for compatible electronic-trip circuit breaker configurations. Whether you're replacing a matching breaker frame, servicing industrial electrical equipment, or maintaining a legacy power distribution system, the SEDA24AT0100 is intended to help preserve the original equipment configuration. The SE150 product line was developed for industrial applications where electrical components are built for long-term service.
Key Features and Benefits
- 100-Amp Current Rating:
- 2-Pole Configuration:
- SEHA Frame Type:
- SE150 Product Line:
- Industrial Molded Case Construction:
- Electronic Trip Configuration:
- 18kA Interrupting Rating at 480VAC:
- 18kA Interrupting Rating at 240VAC:
- Frame-Only Configuration:
Technical Specifications
-
Part Number: SEDA24AT0100
-
Product Type: Industrial Molded Case Circuit Breaker Frame
-
Product Line: SE150
-
Frame Type: SEHA
-
Number of Poles: 2
-
Amperage: 100 Amps
-
A.I.C. Rating at 480VAC: 18kA
-
A.I.C. Rating at 240VAC: 18kA
-
Trip System: Electronic Trip Configuration
-
Supplied Component: FRAME ONLY
-
Height: 6.50 Inches
-
Width: 4.13 Inches
-
Depth: 3.38 Inches
-
Dimensions: 4.13"W x 6.50"L x 3.38"D
-
Shipping Weight: 8.5 lbs.
Material Compliance and Certifications
The SEDA24AT0100 SEHA frame is part of the SE150 industrial molded case circuit breaker line. We have not independently verified the specific material composition, UL listing information, ANSI/IEEE conformity, or other certifications for this exact part number.
Where It Works Best
- Industrial Electrical Distribution Systems:
- Commercial Electrical Infrastructure:
- Legacy SE150 Equipment Maintenance:
- Two-Pole Circuit Breaker Applications:
- Electrical Equipment Maintenance and Repair:
- Existing SEHA Frame Installations:
- Facility Power Distribution Equipment:
