RJF36200CU44ABDYP - 2000 Amp Circuit Breaker with Lockoff and Overcurrent Trip Switch (SDE)

RJF36200CU44ABDYP - 2000 Amp Circuit Breaker with Lockoff and Overcurrent Trip Switch (SDE)

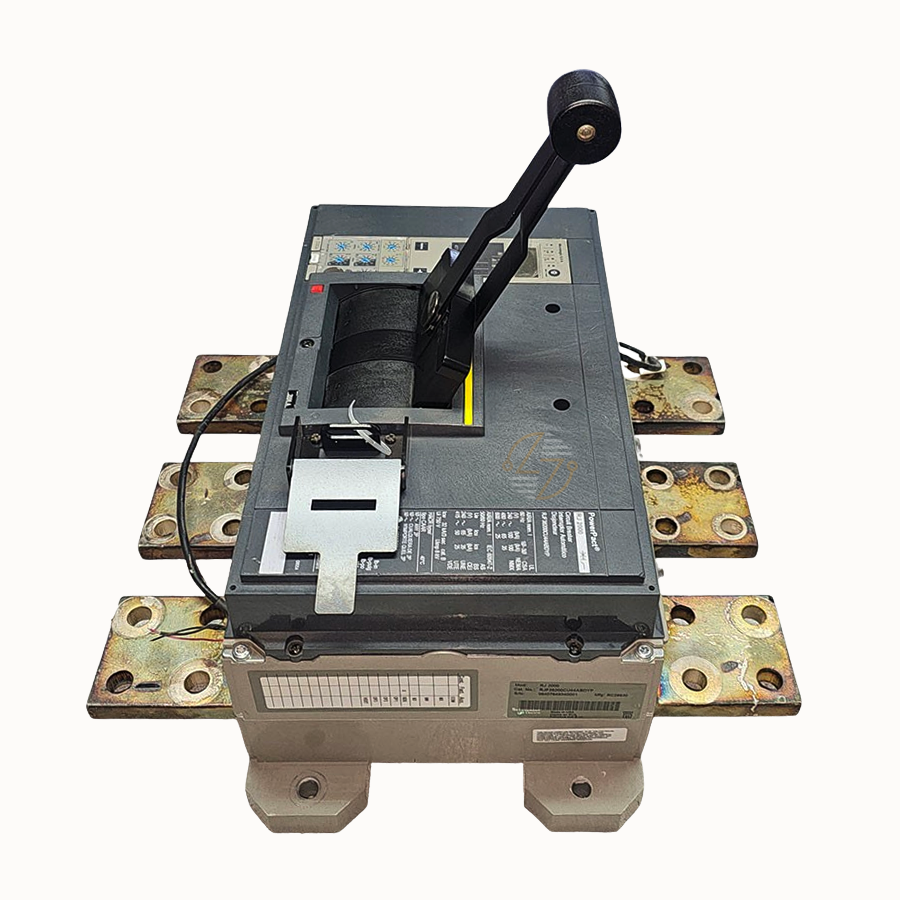

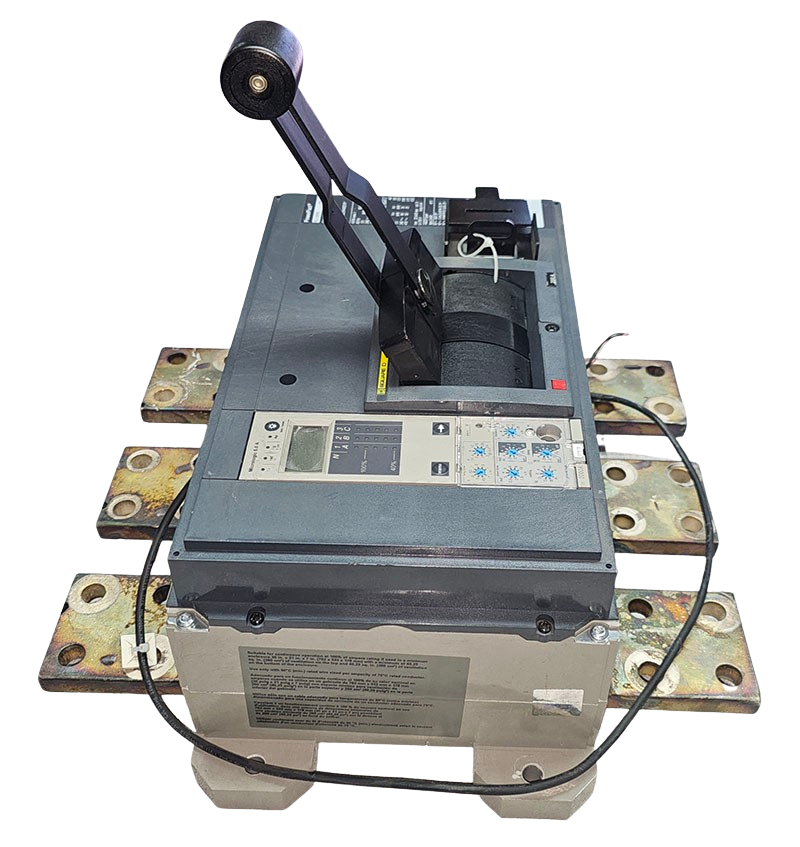

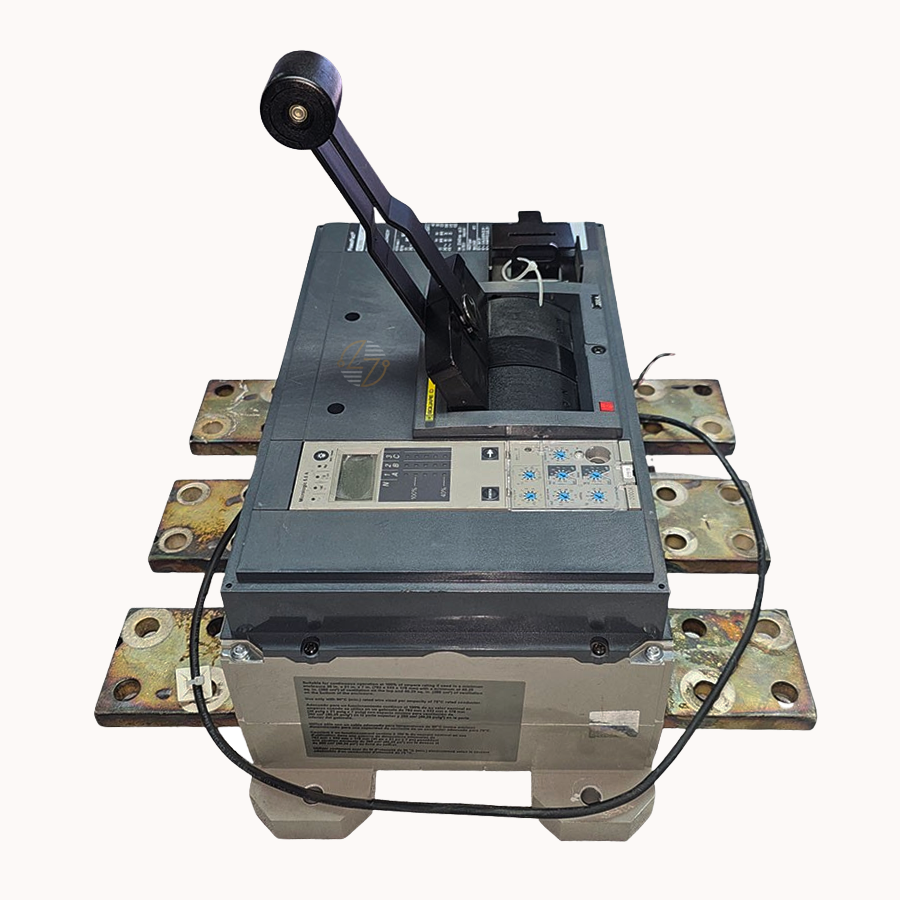

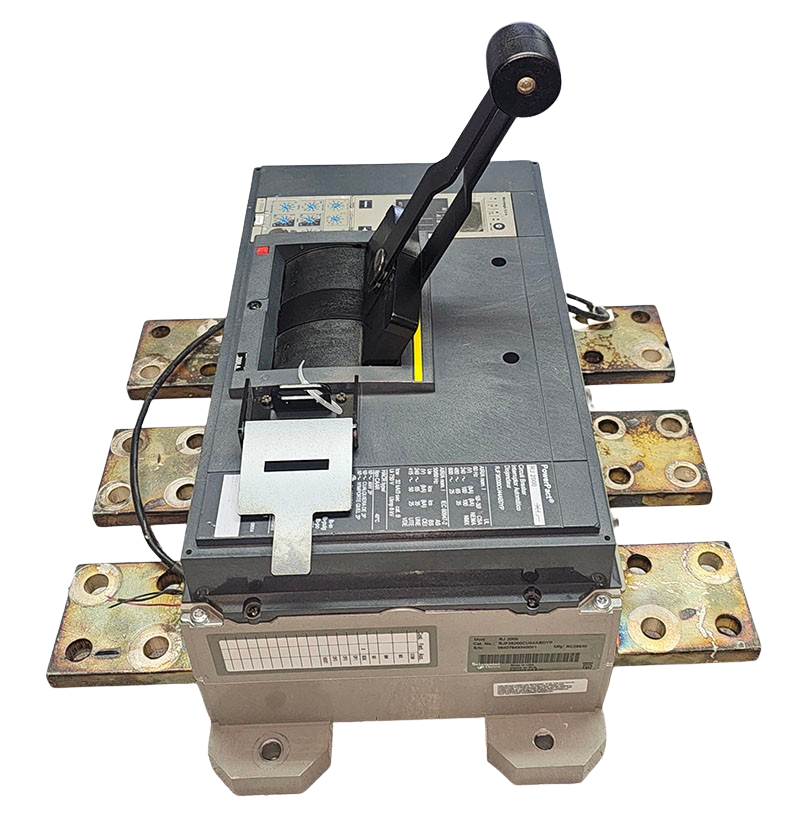

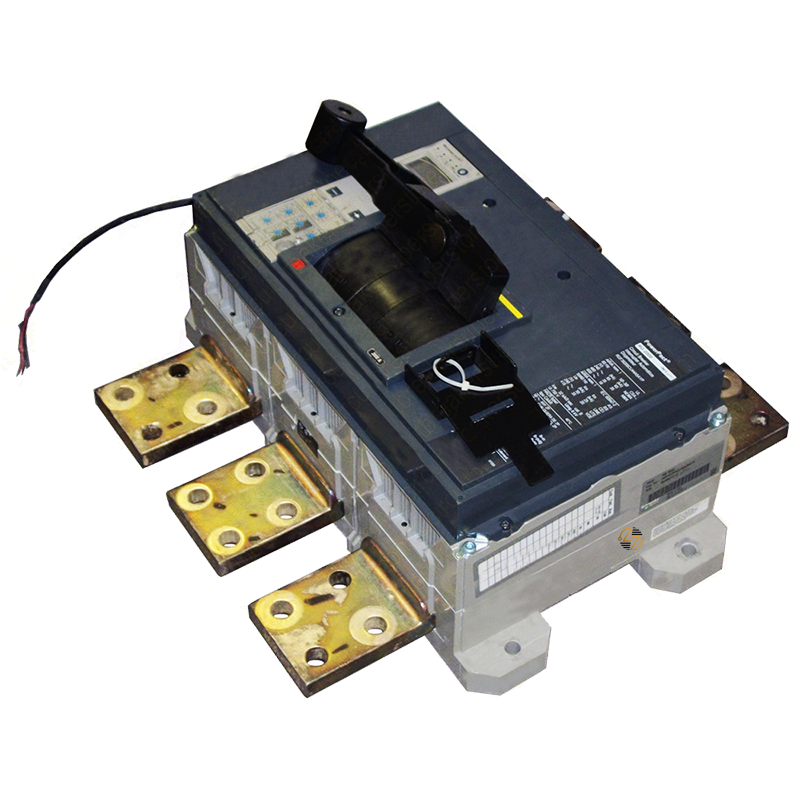

When your electrical system demands dependable protection at high current levels, the RJF36200CU44A PowerPact® R-Frame circuit breaker is built to deliver. Rated at 2000 amps with a 3-pole configuration, this breaker is designed for large commercial and industrial power distribution systems where reliability isn't optional—it's expected. Whether you're protecting a main distribution panel, switchboard, or other critical equipment, the RJF36200CU44A helps minimize downtime by responding quickly and accurately to overloads and fault conditions. What sets this model apart is its Micrologic interchangeable ammeter electronic trip unit (Code 6.0A), which provides advanced protection and greater visibility into system performance. With Long Time, Short Time, Instantaneous, and Ground Fault protection built in, the breaker helps coordinate protection throughout your electrical system, reducing the likelihood of unnecessary trips while still responding when it matters most. Its 100% rated design also allows continuous operation at its full current rating when installed in equipment designed for 100% rated applications, making it an excellent choice for demanding installations operating in 40°C ambient environments.

Key Features and Benefits

• 2000 Amp Continuous Current Rating: 2000 Amp continuous current rating for heavy-duty power distribution.
• 3-Pole Design: 3-pole design for three-phase electrical systems.
• PowerPact® R-Frame: PowerPact® R-Frame molded case circuit breaker.
• 100% Rated: 100% rated for continuous full-load operation in properly rated equipment.

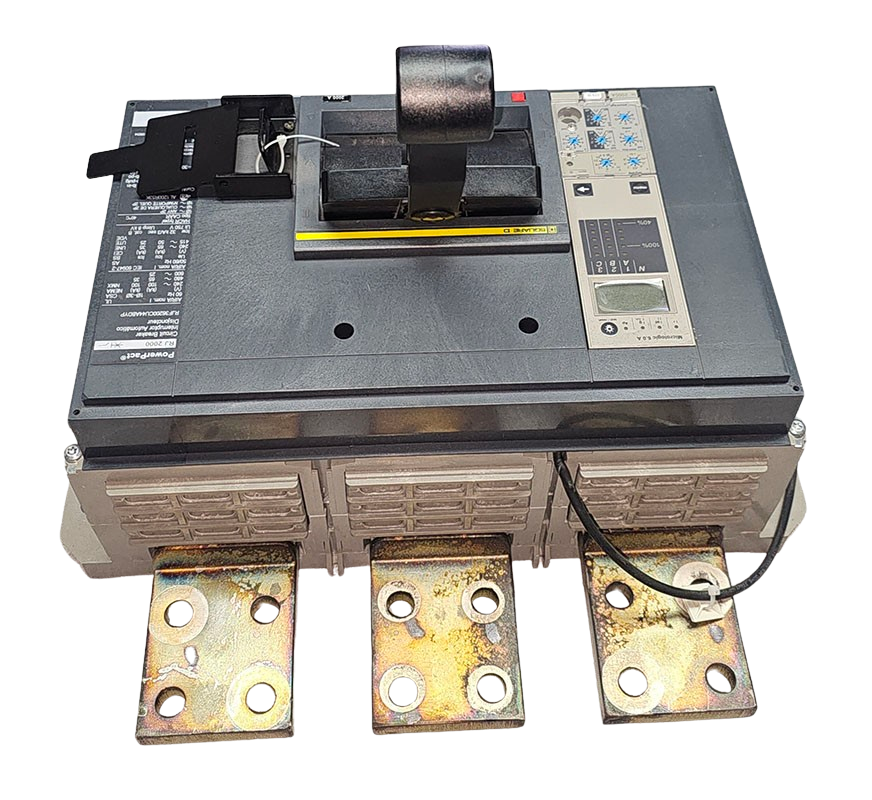

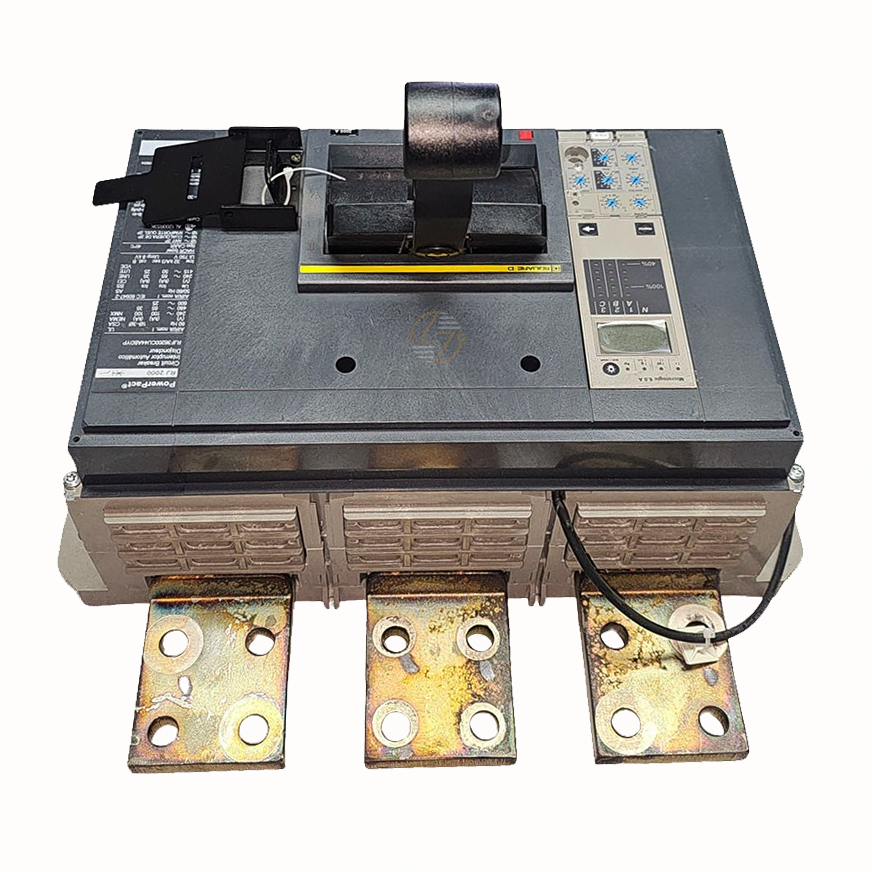

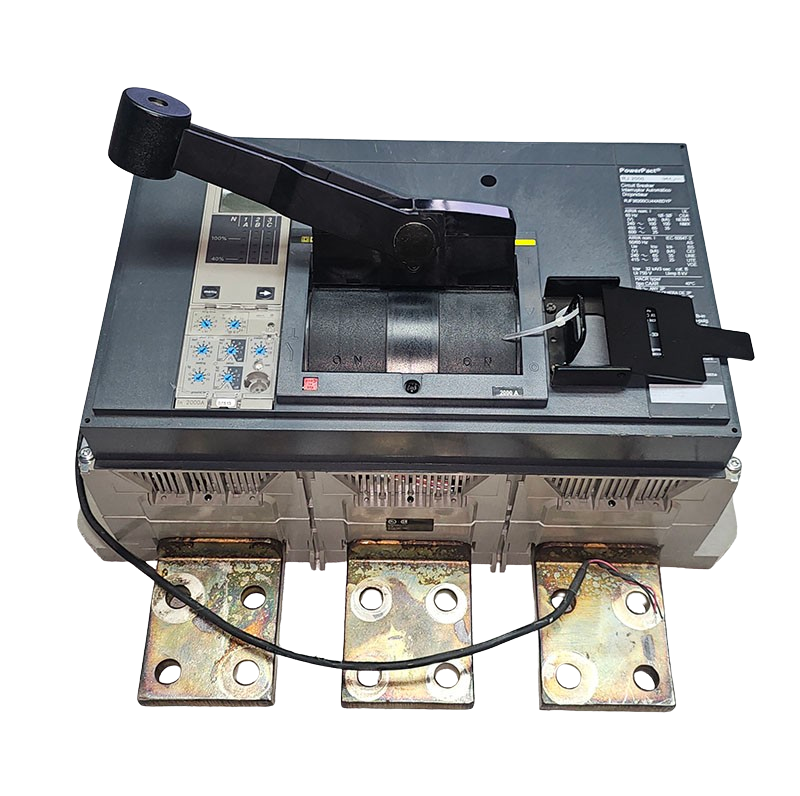

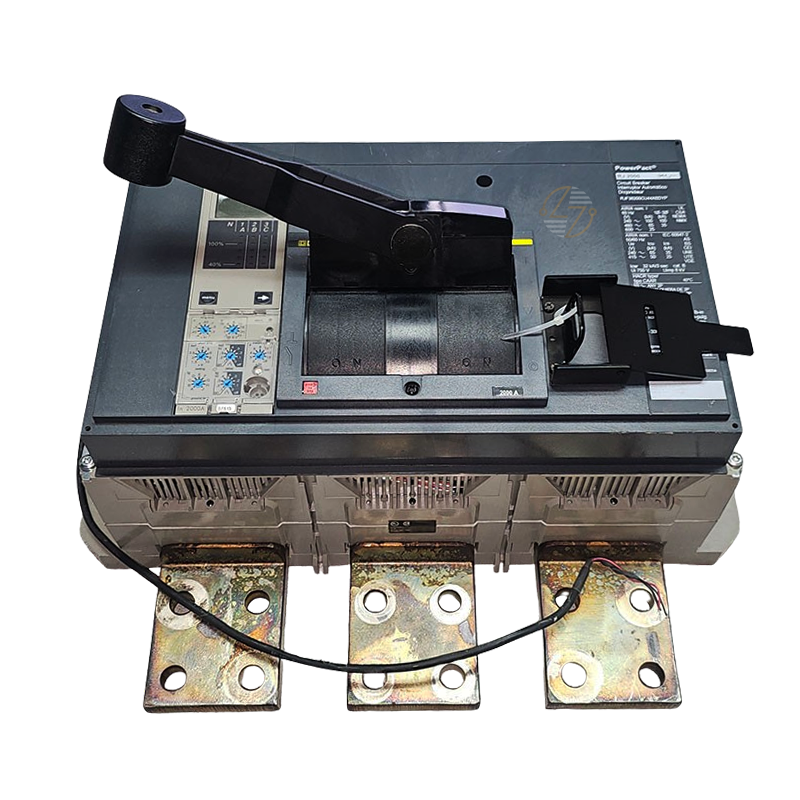

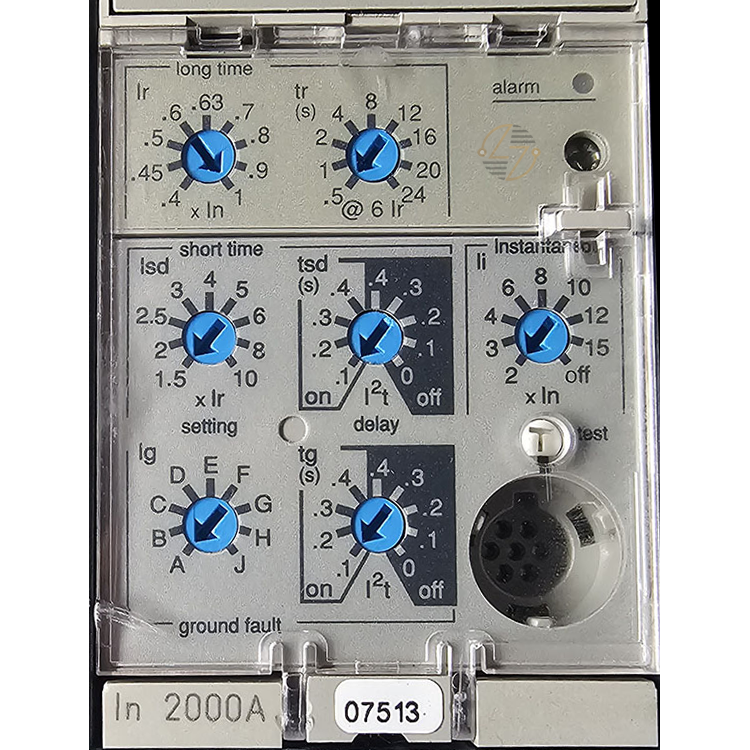

• Micrologic Electronic Trip Unit: Micrologic interchangeable ammeter electronic trip unit (Code 6.0A).
• Integrated Protection:
  • Long Time
  • Short Time
  • Instantaneous
  • Ground Fault

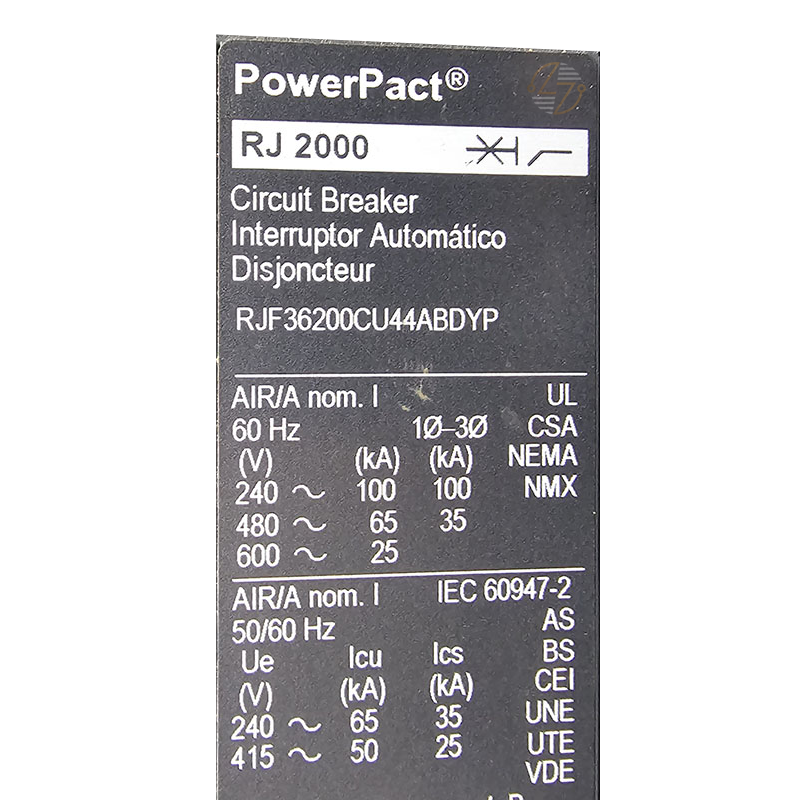

• High Interrupting Capacity:
  • 25kA @ 600VAC
  • 65kA @ 480VAC
  • 100kA @ 240VAC
• 40°C Operating Environment: Designed for operation in 40°C ambient conditions.
• Improved System Performance: Helps improve equipment protection, system coordination, and electrical reliability.


Technical Specifications

• Part Number: RJF36200CU44A

• Type: RJF

• Frame: PowerPact® R-Frame

• Poles: 3

• Amperes: 2000A

• Voltage / A.I.C. Rating: 25kA @ 600VAC; 65kA @ 480VAC; 100kA @ 240VAC

• Trip Unit: Micrologic Interchangeable Ammeter Electronic Trip Unit (Code 6.0A)

• Protection Functions: Long Time, Short Time, Instantaneous, Ground Fault

• Rating: 100% Rated

• Operating Temperature: 40°C

• Dimensions:
  • Height: 16.54 in.
  • Width: 16.24 in.
  • Depth: 6.63 in.

Material Compliance and Certifications

• Industry Standards: The RJF36200CU44A is manufactured to meet applicable industry standards for molded case circuit breakers.
• Installation Requirements: It is intended for installation in electrical distribution systems that comply with applicable national and local electrical codes. Installation and application should always be performed by qualified personnel and verified for the specific requirements of the project.


Where It Works Best

• The RJF36200CU44A is an ideal solution for facilities that depend on uninterrupted power and dependable overcurrent protection. It's commonly used in industrial plants, manufacturing facilities, commercial buildings, data centers, healthcare campuses, institutional facilities, and large electrical distribution systems where high-current protection is essential. Its combination of a 2000-amp rating, advanced Micrologic electronic trip technology, and high interrupting capacity makes it well-suited for protecting main service entrances, switchboards, switchgear, large feeders, and other mission-critical electrical equipment.
