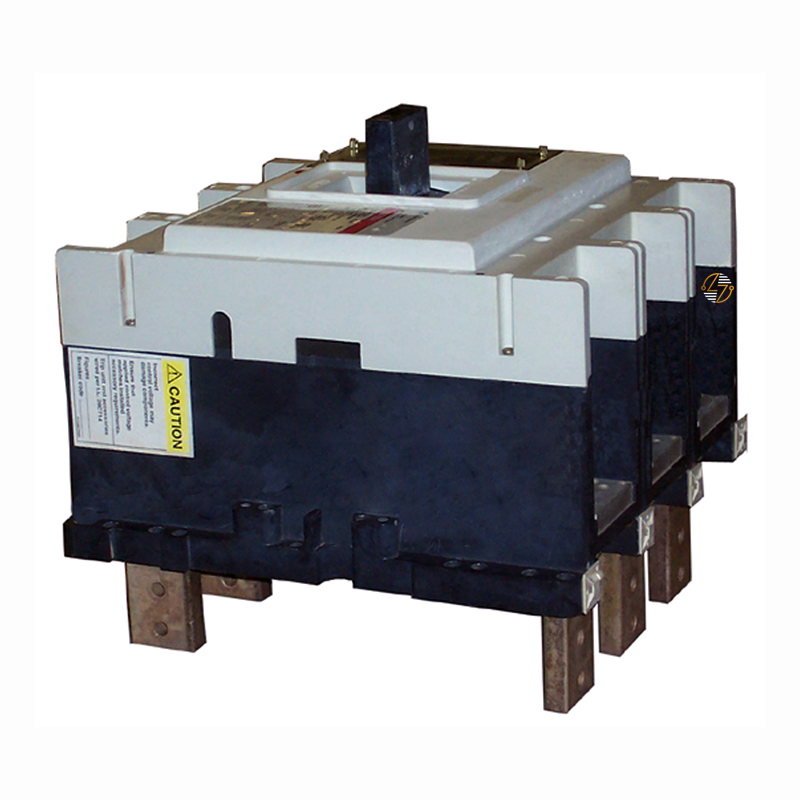

RD325T36W - 2500 Amp Circuit Breaker

RD325T36W - 2500 Amp Circuit Breaker

When your electrical distribution system calls for a 2500 amp, 3-pole R-Frame circuit breaker, the RD325T36W provides the correct form, fit, and functional replacement for compatible installations. This Type RD thermal-magnetic molded case circuit breaker frame is designed for demanding commercial and industrial power distribution applications where dependable overcurrent protection and adjustable trip functions are required. Built to last, the breaker frame allows qualified professionals to configure protection using the appropriate compatible rating plug, making it a practical solution for maintaining existing electrical systems. Please note that this unit is supplied as the breaker frame only and does not include a rating plug or lug terminals, allowing the necessary components to be selected for the specific application. Whether you're servicing switchgear, replacing an existing breaker frame, or maintaining legacy power distribution equipment, the RD325T36W is engineered for 50/60 Hz operation, a 40°C ambient rating, and interrupting capacities of 50kA at 600VAC, 65kA at 480VAC, and 125kA at 240VAC. Its adjustable long delay, short delay, instantaneous, and ground fault protection capabilities—when used with the proper accessories—help support reliable operation across a wide range of high-capacity electrical installations.

Key Features and Benefits

• 2500 Amp Frame: 2500 amp frame designed for high-capacity electrical distribution systems.
• 3-Pole Configuration: 3-pole configuration for three-phase power applications.
• Type RD R-Frame: Type RD R-Frame thermal-magnetic molded case circuit breaker.
• Frame Only Configuration: Frame only configuration allows installation with the appropriate compatible rating plug.
• Adjustable Long Delay Pickup: Adjustable long delay pickup using an adjustable rating plug.
• Adjustable Short Delay Pickup: Adjustable short delay pickup with selectable I²T or flat response.
• Adjustable Instantaneous Pickup: Adjustable instantaneous pickup through short delay settings.
• Adjustable Ground Fault Pickup: Adjustable ground fault pickup with selectable flat-response delay.
• 50/60 Hz Operation: Rated for 50/60 Hz operation at 40°C ambient temperature.
• Durable Molded Case Construction: Durable molded case construction built to last.
• Form, Fit, and Functional Replacement: Designed as a form, fit, and functional replacement for compatible equipment.


Technical Specifications

• Part Number: RD325T36W

• Type: RD

• Frame: R-Frame

• Breaker Style: Thermal-Magnetic Molded Case Circuit Breaker

• Configuration: Frame Only

• Poles: 3

• Amperes: 2500A

• Frequency: 50/60 Hz

• Ambient Rating: 40°C

• Interrupting Rating: 50kA @ 600VAC
  65kA @ 480VAC
  125kA @ 240VAC

• Dimensions:
  • Height: 16.0 in.
  • Width: 15.5 in.
  • Depth: 9.75 in.
• Included: Frame only (rating plug and lug terminals not included)


Material Compliance and Certifications

• Construction: Thermal-magnetic molded case circuit breaker construction.
• Application: Designed for low-voltage AC power distribution systems.
• Frequency Rating: Rated for operation at 50/60 Hz.
• Interrupting Ratings:
  • 50kA @ 600VAC
  • 65kA @ 480VAC
  • 125kA @ 240VAC
• Installation Requirements: Intended for installation by qualified electrical professionals using compatible accessories.


Where It Works Best

• The RD325T36W is commonly used in commercial buildings, manufacturing facilities, industrial plants, utilities, and other large electrical distribution systems where a compatible 2500A Type RD R-Frame circuit breaker is required. It's well suited for switchgear, switchboards, panel systems, and similar equipment that relies on configurable overcurrent protection. Because this unit is supplied as a frame only, it offers flexibility for applications where the correct rating plug and terminals will be selected separately, making it an excellent choice for maintaining compatible legacy electrical systems.
