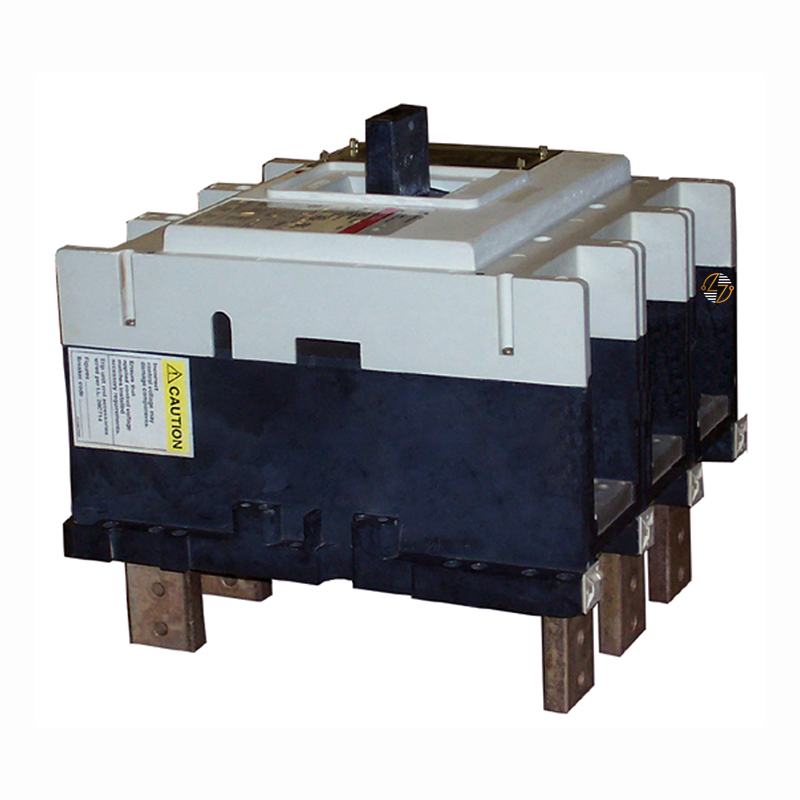

RD325T32W - 2500 Amp Circuit Breaker

RD325T32W - 2500 Amp Circuit Breaker

When you need a compatible replacement for an existing high-capacity electrical distribution system, the RD325T32W provides the form, fit, and function required to help keep your equipment operating as intended. This 3-pole, 2500-amp R-Frame thermal-magnetic molded case circuit breaker frame is designed for 50/60 Hz applications and calibrated for operation at 40°C, making it well-suited for demanding commercial and industrial environments where dependable circuit protection is essential. The RD325T32W offers flexible protection settings to match the needs of your system. It features adjustable long-delay pickup using a compatible rating plug, along with adjustable short-delay pickup that can be configured for either fixed short-delay time (I²T response) or adjustable short-delay time (flat response). For applications requiring faster fault response, the short-delay function can also be set to provide adjustable instantaneous pickup. Because this listing is for the frame only, it does not include a rating plug or lug terminals, allowing you to pair it with the components required for your specific installation. Built to last and designed for compatibility with existing equipment, the RD325T32W is an excellent choice when maintaining or servicing compatible power distribution systems.

Key Features and Benefits

• 3-Pole R-Frame Circuit Breaker Frame: 3-pole R-Frame thermal-magnetic molded case circuit breaker frame.
• 2500-Amp Frame: 2500-amp frame designed for high-capacity electrical distribution.
• Adjustable Long-Delay Pickup: Adjustable long-delay pickup using a compatible rating plug.
• Adjustable Short-Delay Pickup: Adjustable short-delay pickup with selectable I²T or flat response.
• Adjustable Instantaneous Pickup: Adjustable instantaneous pickup for application-specific protection settings.
• 40°C and 50/60 Hz Rated: Rated for operation at 40°C and 50/60 Hz.
• Interrupting Capacity:
  • 50kA @ 600 VAC
  • 65kA @ 480 VAC
  • 125kA @ 240 VAC
• Frame-Only Configuration: Frame-only configuration allows use with compatible rating plugs and lug terminals.
• Built to Last: Built to last for demanding commercial and industrial applications.


Technical Specifications

• Part Number: RD325T32W

• Type: RD

• Frame: R-Frame

• Circuit Breaker Type: Thermal-Magnetic Molded Case Circuit Breaker Frame

• Poles: 3

• Frame Rating: 2500 Amps

• Frequency: 50/60 Hz

• Operating Temperature: 40°C

• Interrupting Rating: 50kA @ 600VAC; 65kA @ 480VAC; 125kA @ 240VAC

• Long Delay Pickup: Adjustable (via compatible rating plug)

• Short Delay Pickup: Adjustable, I²T or Flat Response

• Instantaneous Pickup: Adjustable

• Dimensions:
  • Height: 16.0 in.
  • Width: 15.5 in.
  • Depth: 9.75 in.
• Includes: Frame Only

• Rating Plug: Not Included

• Lug Terminals: Not Included


Material Compliance and Certifications

• Construction: Thermal-magnetic molded case circuit breaker construction.
• Application: Designed for 50/60 Hz AC electrical distribution systems.
• Operating Rating: Calibrated for operation at 40°C.
• Installation Requirements: Intended for installation in compatible electrical equipment in accordance with applicable electrical codes and manufacturer requirements.
• Compatibility Verification: Compatibility with the existing breaker frame, rating plug, and connection hardware should be confirmed before installation.


Where It Works Best

• The RD325T32W is a practical solution for maintaining compatible commercial, industrial, and institutional power distribution systems that require a 2500-amp, 3-pole R-Frame molded case circuit breaker. It is commonly found in switchgear, switchboards, motor control centers, manufacturing facilities, processing plants, utilities, and other high-capacity electrical systems where dependable overcurrent protection is required. Since this unit is supplied as a frame only, it is best suited for applications where the appropriate rating plug and lug terminals will be selected separately to meet the electrical requirements of the installation.
