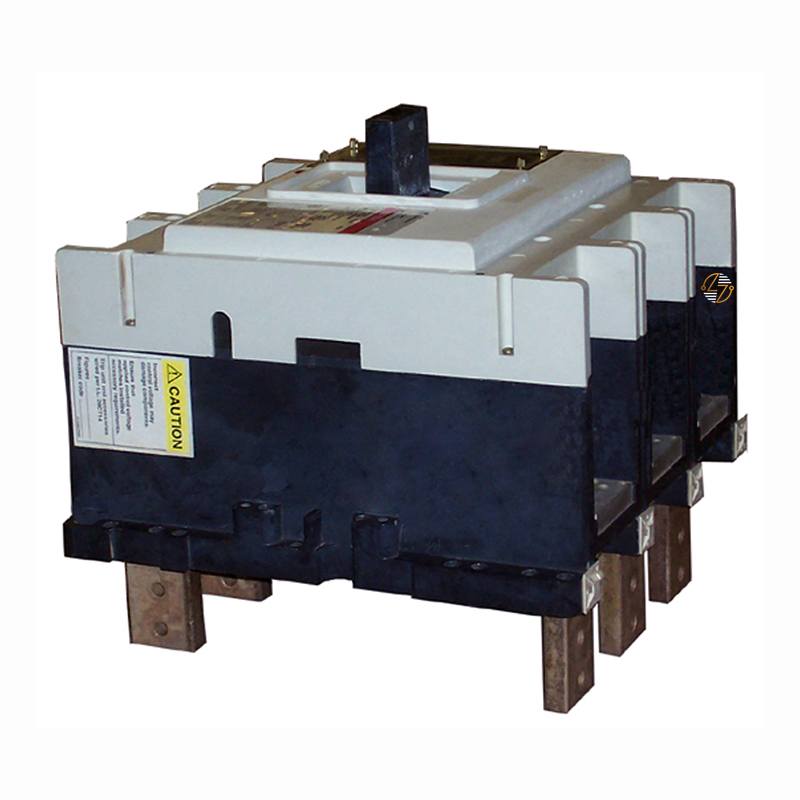

RD316T36W - 1600 Amp Circuit Breaker

RD316T36W - 1600 Amp Circuit Breaker

When your electrical distribution system requires dependable overcurrent and ground fault protection, the RD316T36W molded case circuit breaker delivers the ratings and functionality needed to keep compatible equipment operating as intended. This 3-pole, 1600 amp R-Frame thermal-magnetic circuit breaker is designed for applications where precise protection settings are important, making it well-suited for large commercial and industrial power distribution systems. What makes the RD316T36W especially versatile is its wide range of adjustable protection functions. The included 1600A rating plug allows long delay pickup to be adjusted for proper coordination with downstream equipment, while the adjustable short delay pickup can be configured for either I²T response or flat response to better match system requirements. Adjustable ground fault pickup and adjustable ground fault delay add another level of flexibility, helping protect equipment while reducing unnecessary interruptions. Instantaneous protection is also built in to respond quickly during severe fault conditions. Designed for 50/60Hz operation at 40°C, this breaker is built to last and serves as a dependable form, fit, and functional replacement for compatible R-Frame installations.

Key Features and Benefits

• 3-Pole Configuration: 3-pole molded case circuit breaker.
• 1600 Amp Current Rating: 1600 amp continuous current rating.
• R-Frame Thermal-Magnetic Trip Unit: R-Frame thermal-magnetic trip unit.
• Included Rating Plug: Includes 1600A adjustable rating plug.
• Adjustable Long Delay Pickup: Adjustable long delay pickup for improved coordination.
• Adjustable Short Delay Pickup: Adjustable short delay pickup with selectable I²T or flat response.
• Adjustable Ground Fault Protection: Adjustable ground fault pickup and adjustable ground fault delay.
• Instantaneous Trip Protection: Instantaneous trip protection for high-level fault conditions.
• Interrupting Ratings:
  • 50kA @ 600VAC
  • 65kA @ 480VAC
  • 125kA @ 240VAC
• Operating Rating: Rated for 50/60Hz operation at 40°C ambient.
• Built to Last: Built to last for demanding electrical distribution applications.
• Lugs: Lugs not included.


Technical Specifications

• Part Number: RD316T36W

• Type: RD

• Frame: R-Frame

• Circuit Breaker Type: Molded Case Circuit Breaker

• Trip Unit: Thermal-Magnetic

• Poles: 3

• Amperage: 1600A

• Frequency: 50/60Hz

• Ambient Rating: 40°C

• Interrupting Capacity: 50kA @ 600VAC; 65kA @ 480VAC; 125kA @ 240VAC

• Long Delay Pickup: Adjustable (with an included 1600A rating plug)

• Short Delay Pickup: Adjustable with I²T or Flat Response

• Ground Fault Pickup: Adjustable

• Ground Fault Delay: Adjustable Flat Response

• Instantaneous Protection: Yes

• Rating Plug: 1600A Included

• Lugs: Not Included

• Dimensions:
  • Height: 16.0 in.
  • Width: 15.5 in.
  • Depth: 9.75 in.

Material Compliance and Certifications

• Construction: Molded case circuit breaker construction.
• Trip Mechanism: Thermal-magnetic trip mechanism.
• Operating Rating: Rated for operation at 40°C ambient.
• Application: Designed for 50/60Hz AC electrical systems.
• Installation Requirements: Manufactured to meet the published electrical ratings for this breaker series. Installation should be performed in compatible equipment and in accordance with applicable electrical codes and manufacturer requirements.


Where It Works Best

• The RD316T36W is commonly used in commercial buildings, industrial facilities, manufacturing plants, data centers, and other large electrical distribution systems where a 1600 amp, 3-pole molded case circuit breaker is required. It is well-suited for installation in compatible switchboards, panelboards, motor control equipment, and distribution assemblies, especially where adjustable overcurrent and ground fault protection are needed for proper system coordination. Whether replacing an existing compatible breaker during maintenance or supporting ongoing facility operations, the RD316T36W provides the form, fit, and functional compatibility required for legacy electrical systems while delivering the electrical ratings and protective functions those systems depend on.
