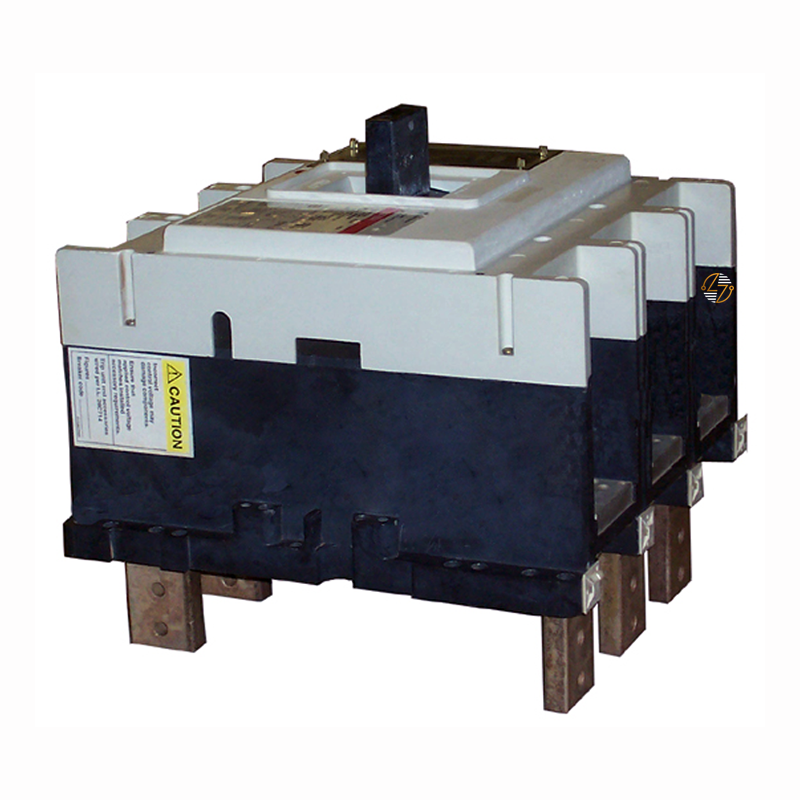

RD316T32W - 1600 Amp Circuit Breaker

RD316T32W - 1600 Amp Circuit Breaker

When keeping an existing power distribution system operating as designed, having the correct replacement breaker matters. The RD316T32W is a 3-pole, 1600 amp RD Type molded case circuit breaker frame built for compatible R-Frame applications where matching the original form, fit, and function is essential. Designed for 40°C operation at 50/60 Hz, this thermal-magnetic breaker frame provides adjustable overcurrent protection to help coordinate with the needs of your electrical system. This breaker frame offers multiple protection settings, including adjustable long delay pickup through an adjustable rating plug, adjustable short delay pickup with either fixed short delay time (I²T response) or adjustable short delay time (flat response), and adjustable instantaneous pickup when the short delay setting is configured for instantaneous operation. These adjustment options allow the breaker to be configured for a variety of compatible applications while maintaining proper system coordination. Whether you're replacing an existing breaker during scheduled maintenance, repairing equipment after a fault, or maintaining critical electrical infrastructure, the RD316T32W is designed to deliver the compatibility and electrical ratings needed for many commercial and industrial installations. Built to last, this breaker frame is supplied without a rating plug or lug terminals, allowing those components to be selected separately to meet the specific requirements of your application.

Key Features and Benefits

• Part Number: RD316T32W
• 3-Pole Configuration: 3-pole molded case circuit breaker frame.
• 1600 Amp Frame Rating: 1600 amp frame rating.
• RD Type, R-Frame Construction: RD Type, R-Frame construction.
• Thermal-Magnetic Trip Mechanism: Thermal-magnetic trip mechanism.
• Adjustable Long Delay Pickup: Adjustable long delay pickup using an adjustable rating plug.
• Adjustable Short Delay Pickup: Adjustable short delay pickup with fixed I²T response or adjustable flat response.
• Adjustable Instantaneous Pickup: Adjustable instantaneous pickup by selecting the instantaneous short delay operation.
• 40°C Rated: Rated for 40°C ambient operation.
• 50/60 Hz Operation: Operates on 50/60 Hz electrical systems.
• Built to Last: Built to last in demanding commercial and industrial environments.
• Frame Only: Frame only—rating plug and lug terminals are not included.
• Form, Fit, and Functional Replacement: Designed as a form, fit, and functional replacement for compatible equipment.


Technical Specifications

• Part Number: RD316T32W

• Type: RD

• Frame: R-Frame

• Circuit Breaker Type: Molded Case Circuit Breaker (Frame Only)

• Trip Unit: Thermal-Magnetic

• Poles: 3

• Amperes: 1600A

• Frequency: 50/60 Hz

• Operating Temperature: 40°C

• Interrupting Rating: 50kA @ 600VAC
  65kA @ 480VAC
  125kA @ 240VAC

• Dimensions:
  • Height: 16.0 in.
  • Width: 15.5 in.
  • Depth: 9.75 in.
• Included Components: Frame Only (Rating Plug and Lug Terminals Not Included)


Material Compliance and Certifications

• Construction: Thermal-magnetic molded case circuit breaker construction.
• Application: Designed for use in compatible R-Frame electrical distribution systems.
• Operating Rating: Rated for operation at 40°C and 50/60 Hz.
• Manufacturing Specifications: Manufactured to meet the original electrical ratings and design specifications for compatible applications.


Where It Works Best

• The RD316T32W is commonly used in industrial plants, manufacturing facilities, commercial buildings, institutional campuses, utility installations, and large electrical distribution systems that utilize compatible R-Frame molded case circuit breakers. It is well-suited for maintenance projects where preserving the original breaker configuration is important, while allowing the appropriate rating plug and terminals to be selected for the application.
