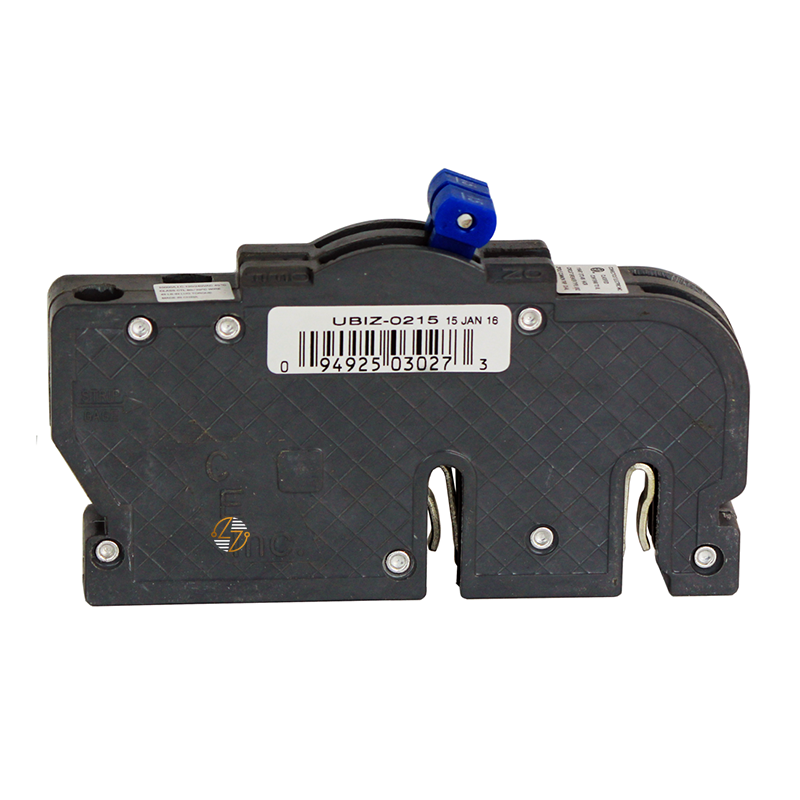

R3815 - Duplex 15/15 Circuit Breaker

R3815 - Duplex 15/15 Circuit Breaker

Keep your existing electrical system operating with the R3815 Duplex 15 Amp Circuit Breaker, a new aftermarket replacement engineered for form, fit, and functional compatibility with legacy panels that originally used the R38-15. This space-saving plug-on, thermal-magnetic circuit breaker provides two independent 15 amp circuits within a duplex design, making efficient use of available panel space while helping protect branch circuits from overloads and short circuits. Built to last and designed to install in the original breaker location, this replacement is well suited for maintaining existing electrical distribution systems without modifying the panel. Its 10kA interrupting capacity at 120VAC and dependable thermal-magnetic trip mechanism make it an ideal choice for qualified maintenance, repair, and replacement applications where compatibility with existing equipment is essential. The description follows Google's guidance to prioritize helpful, accurate, and trustworthy product information for users.

Key Features and Benefits

• Form, Fit, and Functional Replacement: New aftermarket replacement designed for form, fit, and functional compatibility with the original R38-15 circuit breaker.
• Duplex Configuration: Duplex configuration provides two independent 15 amp circuits in a single space-saving breaker.
• Thermal-Magnetic Protection: Thermal-magnetic trip mechanism helps protect branch circuits from overloads and short circuits.
• Plug-On Design: Plug-on design allows installation in the existing breaker location when used in compatible equipment.
• Interrupting Capacity: 10kA interrupting capacity at 120VAC for applications requiring this fault current rating.
• Space-Saving Construction: Compact, space-saving construction helps maximize available panel space.
• Built to Last: Built to last for continued service in compatible legacy electrical systems.


Technical Specifications

• Part Number: R3815

• Replacement For: R38-15

• Type: R38

• Breaker Style: Space-Saving Plug-On, Thermal-Magnetic

• Poles: Duplex

• Amperage: 15 Amps

• Voltage: 120 VAC

• Interrupting Capacity (A.I.C.): 10kA @ 120VAC

• Dimensions:
  • Height: 4.81 in.
  • Width: 0.75 in.
  • Depth: 2.50 in.

Material Compliance and Certifications

• Industry Standards: Manufactured to meet applicable industry standards for replacement circuit breakers where required.
• Qualified Installation: Designed for installation in compatible electrical equipment by qualified personnel.
• Installation Requirements: Verify panel compatibility, voltage, amperage, and interrupting capacity before installation to ensure proper application.


Where It Works Best

• The R3815 Duplex 15 Amp Circuit Breaker is intended for use in compatible electrical distribution panels originally designed to accept the R38-15 breaker. It is well suited for residential, commercial, and light industrial maintenance projects where maintaining the original panel configuration is important. Its duplex, space-saving design makes it especially useful when additional branch circuit protection is needed while preserving valuable panel space. When installed in compatible equipment, it provides a practical replacement solution that matches the original location and intended function.
