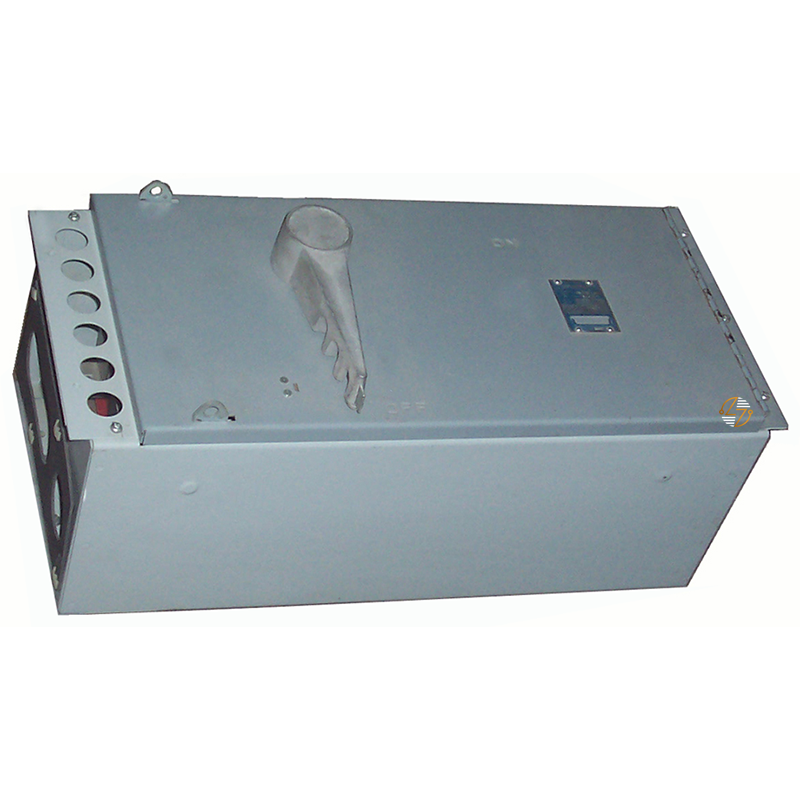

QSF2053D w/ Mounting Kit - 200Amp Panelboard Switch

QSF2053D w/ Mounting Kit - 200Amp Panelboard Switch

The Challenger QSF2053D Panelboard Switch is a high-performance, fusible disconnect switch designed to ensure safe and efficient operation of industrial and commercial electrical systems. Rated for 200 Amps and 600 Volts AC, this 3-pole, bolt-in type panelboard switch combines durability and functionality. Ideal for heavy-duty power distribution, it provides superior circuit protection by utilizing Class RK1 & RK5 fuses. Its inclusion of a mounting kit makes installation even more seamless, ensuring secure and reliable placement within compatible panelboards.

Key Features and Benefits

• Fusible Design: The fusible single unit design offers robust protection by utilizing Class RK1 & RK5 fuses to safeguard circuits from overcurrent conditions, helping prevent costly downtime and equipment damage.
• Bolt-In Type Installation with Mounting Kit: Comes with a mounting kit for quick, secure, and efficient installation in panelboards.

Technical Specifications

• Type: QSF, QSF20 (Fusible, Bolt-In Type)

• Rating: 200A, 600V AC

• Poles: 3

• Fuse Compatibility: Accepts Class RK1 & RK5 fuses

• Type: Fusible Safety Switch

• Dimensions: 21.25" W x 10.00" H x 8.50" D

• Voltage: 600V AC

• Amperage: 200A

• Mounting Kit: Included for secure bolt-in installatio

Material Compliance and Certifications

• UL Listed: UL Listed under UL 98 for safety switches, ensuring adherence to strict safety standards.
• NEMA Rated: NEMA (National Electrical Manufacturers Association) rated for durability and environmental protection, making it suitable for installation in industrial and commercial settings.
• NEC Compliant: NEC (National Electrical Code) compliant, ensuring safety in electrical installations across various industries.


Suitability

• The Challenger QSF2053D is perfect for industrial panelboards, motor control centers, and high-capacity power distribution systems. The included mounting kit enhances ease of installation, making it ideal for facilities requiring precise, reliable, and protected electrical systems, including manufacturing plants and large commercial buildings.
