QOU380 - 80Amp Circuit Breaker

QOU380 - 80Amp Circuit Breaker

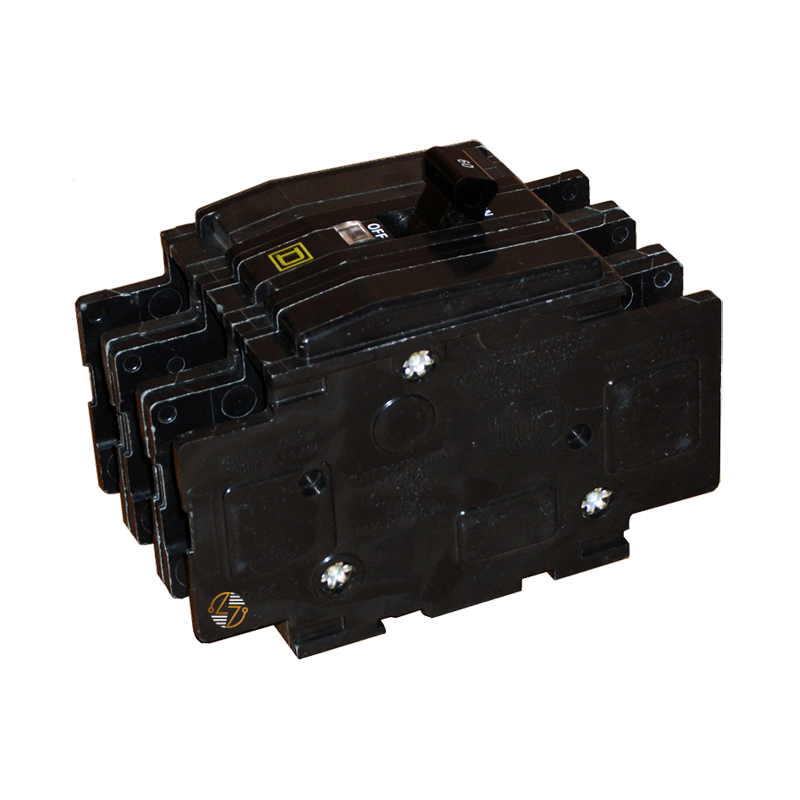

Finding the right circuit breaker isn't just about matching your amperage. Mounting style, voltage ratings, conductor compatibility, and available space all matter. The Square D QOU380 80 Amp 3-Pole Circuit Breaker combines those details in a compact, unit-mounted design for compatible residential and commercial electrical systems. Manufactured by Schneider Electric, this QOU-series miniature molded case circuit breaker provides overcurrent protection for 80-amp, three-pole applications, with a 10kA interrupting rating at 120V AC, 120/240V AC, and 240V AC.

Key Features and Benefits

• 80-Amp, Three-Pole Design: Provides overcurrent protection for compatible circuits requiring an 80A, three-pole circuit breaker.
• Thermal-Magnetic Protection: Responds to overloads and short circuits, helping protect electrical wiring and connected equipment from excessive current.
• VisiTrip Indicator: Makes a tripped breaker easier to identify, reducing guesswork during electrical troubleshooting.
• Flexible Mounting Options: Supports DIN rail, surface, and flush mounting with the appropriate mounting hardware.
• Copper and Aluminum Connections: Slotted box lugs on the line and load sides accommodate approved conductors from 12 AWG through 2/0 AWG.
• AC and DC Operational Ratings: Rated for 120V AC, 120/240V AC, 240V AC, and 60V DC operation, depending on application requirements.

Technical Specifications

• Manufacturer: Schneider Electric

• Brand: Square D

• Catalog Number: QOU380

• Product Series: QOU

• Product Type: Miniature Molded Case Circuit Breaker

• Circuit Breaker Type: Standard

• Rated Current: 80 Amps

• Number of Poles: 3

• Trip Mechanism: Thermal-Magnetic

• Trip Indicator: VisiTrip

• Rated AC Voltage: 120V AC / 120/240V AC / 240V AC

• Rated DC Voltage: 60V DC

• AC Interrupting Rating: 10kA at 120V AC, 120/240V AC, and 240V AC

• Mounting Type: Unit Mount

• Mounting Options: DIN Rail, Surface, or Flush Mounting with Appropriate Hardware

• Line Connection: Slotted Box Lugs

• Load Connection: Slotted Box Lugs

• Compatible Conductors: Copper and Aluminum

• Wire Size Range: 12 AWG to 2/0 AWG

• Terminal Tightening Torque: 45 lbf-in (5.08 N·m) for 12 AWG to 2/0 AWG Conductors

• Height: 4.45 inches (113.03 mm)

• Width: 2.25 inches (57.15 mm)

• Depth: 2.95 inches (74.93 mm)

• HACR Rated: Yes

• Product Certifications: UL Listed, CSA, IEC (as identified in manufacturer specifications)

• Country of Origin: Mexico


Material Compliance and Certifications

Electrical equipment needs to meet more than just the right amperage and voltage requirements. Schneider Electric identifies the Square D QOU380 with the following certifications and conductor compatibility information to help buyers confirm its suitability for their installations:

• UL Listed
• CSA Certification
• IEC Certification
• HACR Rated
• Copper and Aluminum Conductor Compatibility

Where It Works Best

• Commercial Electrical Installations

• Compatible 80-Amp Three-Pole Circuits

• Electrical Control Panels

• Custom Equipment Enclosures

• DIN Rail-Mounted Assemblies

• Surface-Mounted Electrical Assemblies

• Flush-Mounted Electrical Assemblies

• Heating and Air Conditioning Equipment

• Refrigeration Equipment

• Electrical Equipment Maintenance

• Compatible Square D QOU380 Replacements
