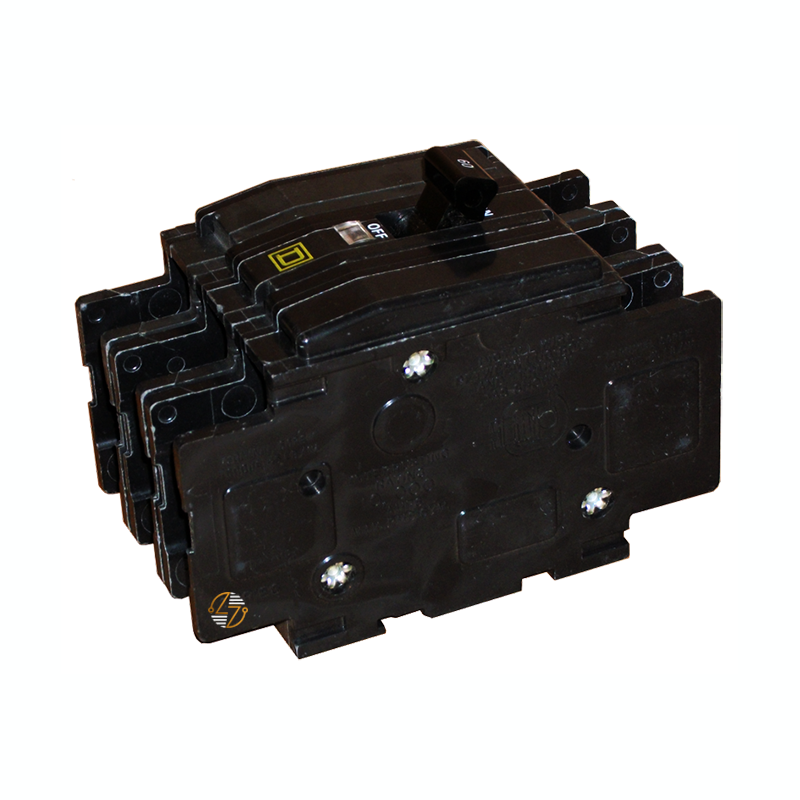

QOU320 - 20 Amp Circuit Breaker

QOU320 - 20 Amp Circuit Breaker

Not every electrical setup calls for a standard plug-on breaker. Sometimes you need a circuit breaker that offers more flexibility in how and where you mount it. That's where the Square D QOU320 20 Amp 3-Pole Circuit Breaker comes in. Designed for compatible residential and commercial electrical equipment, this compact breaker provides overcurrent protection with a 20-amp rating, three poles, and a 10kA interrupting capacity at its specified AC voltages.

Key Features and Benefits

• 20-Amp, Three-Pole Design: Provides overcurrent protection for electrical equipment requiring a compatible three-pole breaker.
• Easy-to-Spot Trip Indication: Square D's VisiTrip feature helps you quickly identify a tripped breaker.
• More Mounting Flexibility: Can be DIN rail, surface, or flush-mounted with the appropriate mounting accessories.
• AC and DC Applications: Rated for 120V, 120/240V, and 240V AC, as well as 48V DC.
• Copper or Aluminum Wiring: Slotted box lugs on both ends accept 14 AWG to 2 AWG conductors.

Technical Specifications

• Manufacturer: Schneider Electric

• Brand: Square D

• Catalog Number: QOU320

• Product Series: QOU

• Product Type: Miniature molded case circuit breaker

• Circuit Breaker Type: Standard

• Amperage: 20 Amps

• Number of Poles: 3

• Rated AC Voltage: 120V, 120/240V, and 240V AC

• Rated DC Voltage: 48V DC

• AC Interrupting Capacity: 10kA at 120V, 120/240V, and 240V AC

• Trip Indicator: VisiTrip

• Mounting Type: Unit mount

• Mounting Options: DIN rail, surface, or flush mounting with suitable accessories

• Line Connections: Slotted box lugs

• Load Connections: Slotted box lugs

• Compatible Wire Materials: Copper and aluminum

• Wire Size Range: 14 AWG to 2 AWG

• Terminal Tightening Torque: 45 lbf-in (5.08 N·m)

• Height: 4.05 inches (102.87 mm)

• Width: 2.25 inches (57.15 mm)

• Depth: 2.95 inches (74.93 mm)

• HACR Rated: Yes

• Country of Origin: Mexico


Material Compliance and Certifications

• UL Listed
• CSA Certification
• IEC Certification
• HACR Rated

Where It Works Best

• Residential Electrical Equipment

• Commercial Electrical Installations

• 20-Amp Three-Pole Circuits

• Compatible 240V AC Systems

• Electrical Control Panels

• Custom Equipment Enclosures

• DIN Rail-Mounted Assemblies

• Surface-Mounted Electrical Assemblies

• Flush-Mounted Electrical Assemblies

• Heating Equipment

• Air Conditioning Equipment

• Refrigeration Equipment
