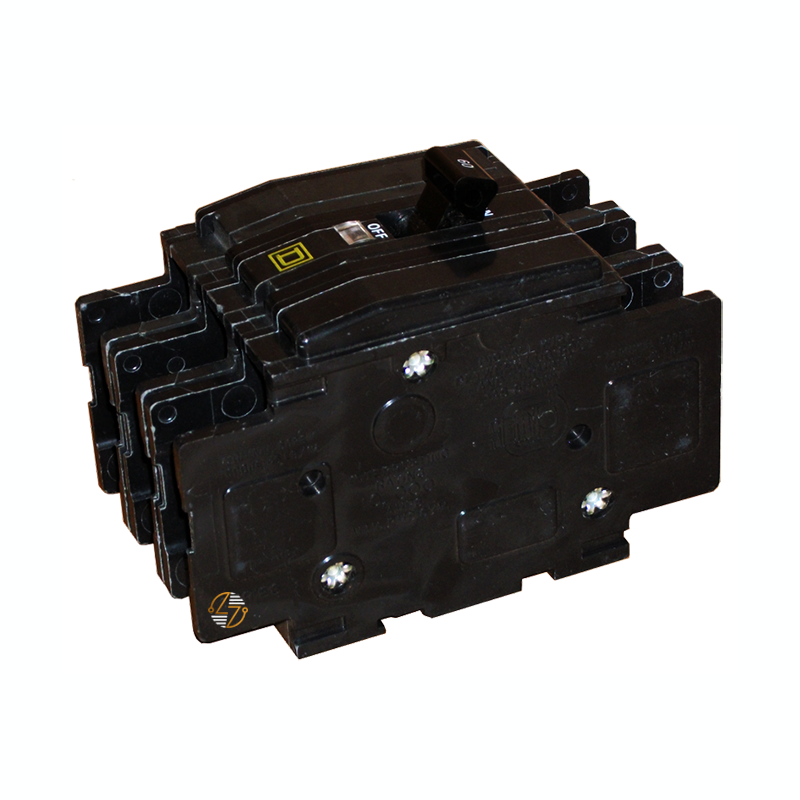

QOU315 - 15 Amp Circuit Breaker

QOU315 - 15 Amp Circuit Breaker

Some electrical installations call for a breaker that doesn't need a traditional load center. The Square D QOU315 15 Amp 3-Pole Circuit Breaker is designed for those setups, offering overcurrent protection in a compact, unit-mounted design.

The QOU315 also makes troubleshooting a little easier. Its built-in VisiTrip indicator shows when the breaker has tripped, helping you identify the affected circuit without unnecessary guesswork. When space or equipment layout matters, the option to use DIN rail, surface, or flush mounting, with the appropriate accessories, gives you more flexibility during installation.

Key Features and Benefits

• 15-Amp, Three-Pole Design: Provides overcurrent protection for compatible three-pole circuits.
• 10kA Interrupting Rating: Handles short-circuit currents up to 10,000 amps at its specified AC voltage ratings.
• Thermal-Magnetic Protection: Responds to overloads and short circuits.
• VisiTrip Indicator: Helps you quickly identify a tripped breaker.
• Flexible Mounting Options: Supports DIN rail, surface, or flush mounting with suitable accessories.
• Copper and Aluminum Compatibility: Accepts 14 AWG through 2 AWG conductors using slotted box lugs.

Technical Specifications

• Manufacturer: Schneider Electric

• Brand: Square D

• Catalog Number: QOU315

• Series: QOU

• Product Type: Miniature molded case circuit breaker

• Circuit Breaker Type: Standard

• Rated Current: 15 Amps

• Number of Poles: 3

• Trip Mechanism: Thermal-magnetic

• Trip Indicator: VisiTrip

• AC Voltage Ratings: 120V, 120/240V, 240V AC

• DC Voltage Rating: 48V DC

• AC Interrupting Capacity: 10kA at 120V, 120/240V, and 240V AC

• Mounting Type: Unit mount

• Mounting Options: DIN rail, surface, or flush with appropriate accessories

• Line and Load Connections: Slotted box lugs

• Conductor Range: 14 AWG to 2 AWG

• Conductor Material: Copper or aluminum

• Height: 4.05 inches (102.87 mm)

• Width: 2.25 inches (57.15 mm)

• Depth: 2.95 inches (74.93 mm)

• Terminal Torque: 45 lbf-in (5.08 N·m)

• HACR Rated: Yes

• Product Certifications: UL Listed, CSA, IEC

• Country of Origin: Mexico


Material Compliance and Certifications

The Square D QOU315 is UL Listed and CSA certified, and Schneider Electric's specifications also list IEC certification. Its HACR rating makes it suitable for applicable heating, air conditioning, and refrigeration equipment. Slotted box lugs accommodate both copper and aluminum conductors within the specified wire range.

• UL Listed
• CSA Certified
• IEC Certification
• HACR Rated
• Copper and Aluminum Conductor Compatibility

Where It Works Best

• Residential Electrical Systems

• Commercial Electrical Installations

• 15-Amp Three-Pole Circuits

• Compatible 240V AC Systems

• Electrical Control Panels

• Custom Electrical Enclosures

• DIN Rail-Mounted Assemblies

• Surface-Mounted Equipment

• Flush-Mounted Installations

• Heating and Air Conditioning Equipment

• Refrigeration Equipment

• Replacement of Existing QOU315 Breakers
