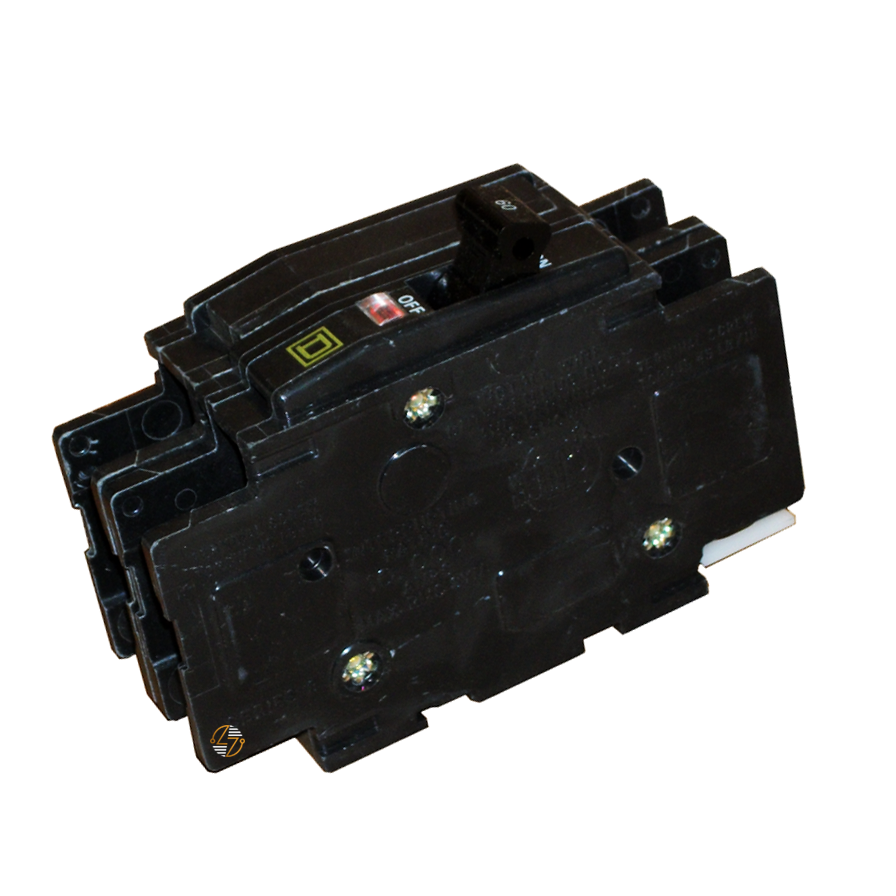

QOU260 - 60 Amp Circuit Breaker

QOU260 - 60 Amp Circuit Breaker

Some electrical installations need more flexibility than a standard plug-on circuit breaker provides. The Square D QOU260 60 Amp 2-Pole Circuit Breaker is designed for those situations, offering overcurrent protection for compatible residential and commercial electrical equipment. Its unit-mount design lets you install it on a DIN rail, on a surface, or flush-mounted with the appropriate mounting accessories.

The QOU260 also features Square D's VisiTrip indicator, which makes a tripped breaker easier to identify. Instead of checking every circuit breaker to find the source of an interruption, you get a visible indication of which breaker has tripped.

Key Features and Benefits

• 60-Amp, Two-Pole Design: Provides overcurrent protection for compatible circuits requiring a 60A, two-pole breaker.
• Thermal-Magnetic Protection: Responds to overloads and short circuits, helping protect electrical wiring and connected equipment from excessive current.
• VisiTrip Indicator: Provides a visible indication when the breaker trips, making troubleshooting and circuit identification easier.
• Copper and Aluminum Connections: Slotted box lugs on both the line and load sides accommodate approved conductors ranging from 14 AWG to 2 AWG.

Technical Specifications

• Manufacturer: Schneider Electric

• Brand: Square D

• Catalog Number: QOU260

• Product Series: QOU

• Product Type: Miniature molded case circuit breaker

• Circuit Breaker Type: Standard

• Rated Current: 60 Amps

• Number of Poles: 2

• Trip Mechanism: Thermal-magnetic

• Trip Indicator: VisiTrip

• Rated AC Voltage: 120V AC / 120/240V AC

• Rated DC Voltage: 48V DC

• AC Interrupting Rating: 10kA at 120V AC and 120/240V AC

• Mounting Type: Unit mount

• Mounting Options: DIN rail, surface, or flush mounting with appropriate hardware

• Line Connection: Slotted box lugs

• Load Connection: Slotted box lugs

• Compatible Conductors: Copper and aluminum

• Wire Size Range: 14 AWG to 2 AWG

• Terminal Tightening Torque: 45 lbf-in (5.08 N·m)

• Height: 4.05 inches (102.87 mm)

• Width: 1.50 inches (38.1 mm)

• Depth: 2.95 inches (74.93 mm)

• HACR Rated: Yes

• Product Certifications: UL Listed, CSA, IEC (as identified in manufacturer specifications)

• Country of Origin: Mexico


Material Compliance and Certifications

• UL Listed
• CSA Certification
• IEC Certification
• HACR Rated
• Copper and Aluminum Compatibility

Where It Works Best

• Residential Electrical Equipment

• Commercial Electrical Installations

• 60-Amp Two-Pole AC Circuits

• Electrical Control Panels

• Custom Equipment Enclosures

• DIN Rail-Mounted Assemblies

• Surface-Mounted Electrical Assemblies

• Flush-Mounted Electrical Assemblies

• Heating and Air Conditioning Equipment

• Refrigeration Equipment

• Electrical Equipment Maintenance

• Existing Square D QOU260 Replacements
