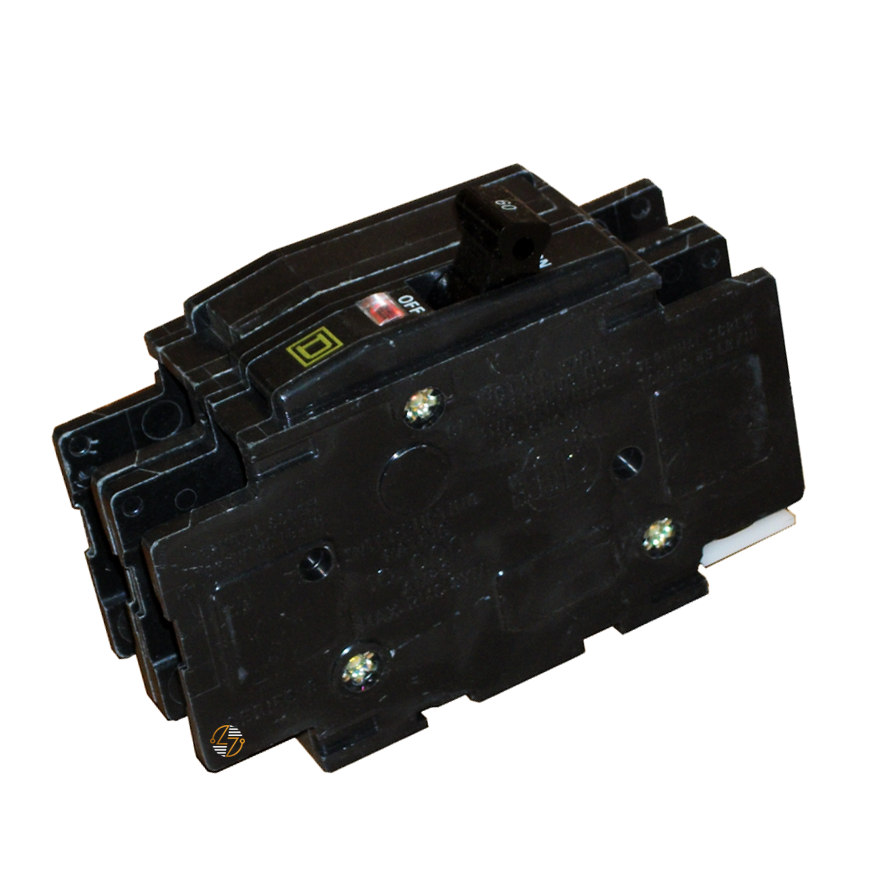

QOU230 - 30 Amp Circuit Breaker

QOU230 - 30 Amp Circuit Breaker

The Schneider Electric QOU230 is a reliable two-pole, 30-amp miniature circuit breaker designed for residential, commercial, and light industrial use. Featuring dual protection mechanisms and a compact unit-mount form factor, it offers dependable circuit interruption and flexible installation. Built to perform in tough environments, it ensures long-lasting protection where it matters most.

Key Features and Benefits

• Dual Protection: Built‑in instantaneous and time‑delayed trip mechanisms help prevent damage from short‑circuits as well as sustained overloads.
• High Interruption Capability: Handles up to 10 kA fault current at 120/240 VAC for safer, more dependable circuit interruption.
• VisiTrip Visual Indicator: See a clear color indication when the breaker trips—the simple visual cue speeds up maintenance.
• Flexible Installation: Unit‑mount design supports DIN‑rail, surface, or flush mounting, adapting to different panel or enclosure styles.
• Designed for Tough Environments: Built to resist high humidity and salty conditions, offering long-lasting reliability in demanding settings.

Technical Specifications

• Series: QOU
• Rated Current: 30 Amps
• Voltage Rating: 120/240 VAC and up to 48 VDC
• Poles: Two‑pole configuration
• Interrupt Rating: 10 kA at rated VAC
• Wire Range: Supports copper or aluminum conductors from AWG 14 to AWG 2
• Connections: Slotted box lugs for both line and load
• Dimensions:
  • Height: 4.05 in
  • Width: 1.50 in
  • Depth: 2.95 in
• Weight: 0.76 lb (0.345 kg)

Material Compliance and Certifications

• Environmental Standards: This breaker aligns with Schneider Electric’s Green Premium® standards, meeting environmental regulations including RoHS and REACh. It’s free of mercury, halogens, and other harmful heavy metals.
• Certifications: Certified to meet UL, CSA, and IEC safety and quality standards, you can count on it for both performance and regulatory compliance.

Suitability

• The QOU230 fits right into most load centers, panelboards, and subpanels across residential, commercial, and light industrial jobs. It’s an excellent match for electricians or contractors looking for trouble‑free circuit protection where reliability matters—from homes to small factories and retail wiring systems.
