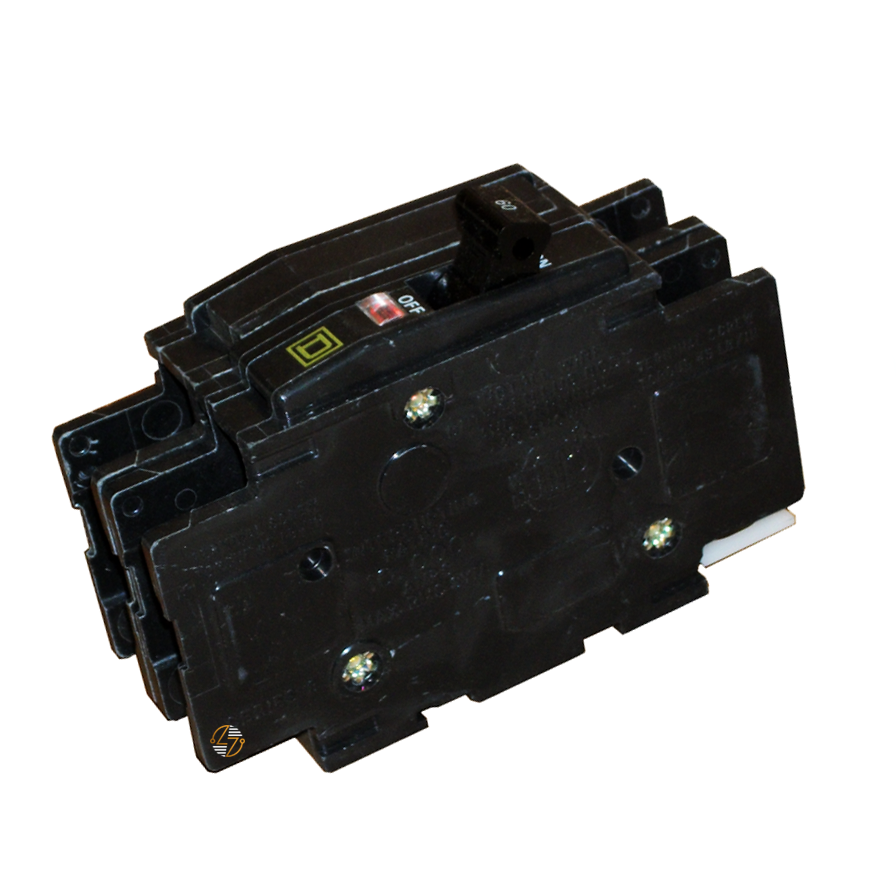

QOU220 - 20 Amp Circuit Breaker

QOU220 - 20 Amp Circuit Breaker

The Schneider Electric QOU220 is a versatile 2-pole, 20-amp circuit breaker engineered for dependable overcurrent protection. It combines thermal‑magnetic trip action to handle overloads and short circuits with split‑second precision. Rated for up to 10 kA interrupting current at 120/240 VAC, it’s perfect for heavy‑duty installations. Designed to resist high humidity, salty air, and other demanding conditions, this unit delivers long-lasting performance and flexible mounting options via DIN‑rail, surface, or flush mounting.

Key Features and Benefits

• Dependable overcurrent protection: Combines thermal‑magnetic trip action to handle overloads and short circuits with split‑second precision.
• High fault capability: Rated for up to 10 kA interrupting current at 120/240 VAC — perfect for heavy‑duty installations.
• Easy-to-read trip indicator: VisiTrip lets you instantly see if the breaker has tripped, making troubleshooting faster and simpler.
• Flexible mounting options: Unit‑mount design allows DIN‑rail, surface, or flush mounting via included feet — adapting to your setup.
• Built for tough environments: Designed to resist high humidity, salty air, and other demanding conditions for long-lasting performance.

Technical Specifications

• Series: Schneider Electric QOU
• Rated Current: 20 Amps
• Voltage Rating: 120/240 VAC and 48 VDC
• Number of Poles: 2
• Interrupting Rating: 10 kA at 120/240 VAC
• Connections: Slotted box lugs, line and load sides
• Wire Capacity: AWG 14–2 (copper or aluminum)
• Size: 4.05″ × 1.50″ × 2.95″ (H × W × D)
• Weight: Approximately 0.75 lb (0.34 kg)

Material Compliance and Certifications

• Green Premium™ standards: Engineered under Schneider Electric’s Green Premium™ standards, the QOU220 meets strict environmental rules including RoHS and REACH.
• Material Safety: It’s free from mercury, toxic heavy metals, and halogens.
• Certifications: UL Listed and CSA Certified, it delivers trusted safety and quality you can count on.

Where It Works Best

• This circuit breaker is built for panelboards, load centers, and electrical distribution systems in varied settings. Whether you’re outfitting a home service panel, commercial kitchen, or industrial control center, the QOU220 provides the performance and safety required. Ideal for electricians, contractors, and facility managers who demand a dependable solution.
