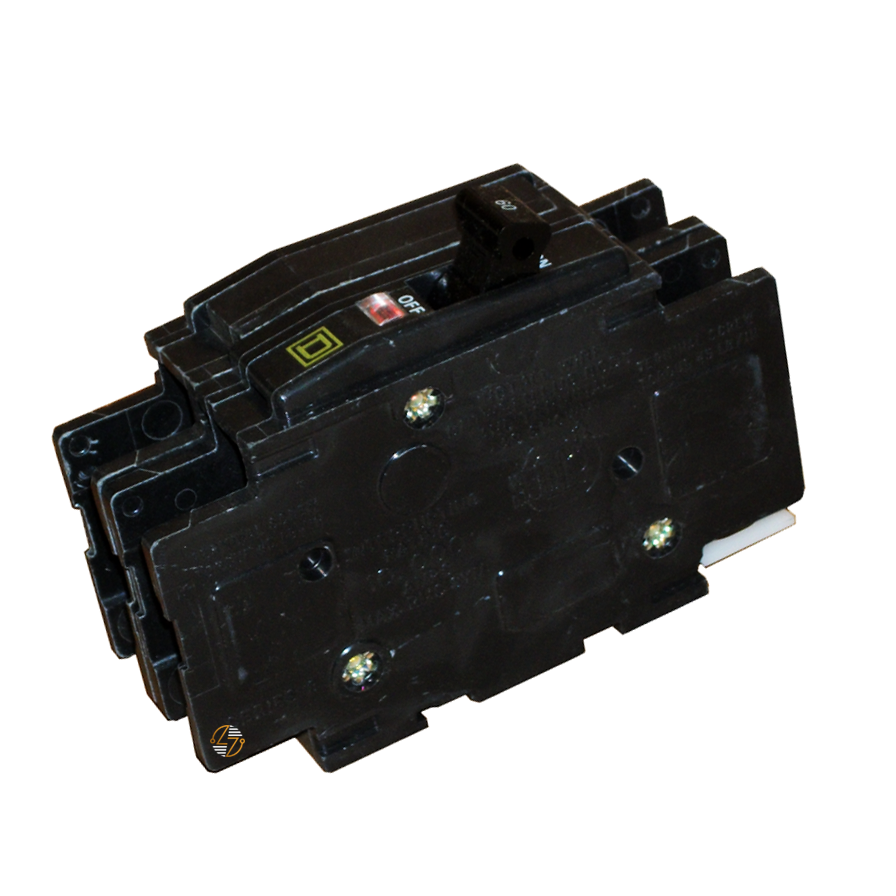

QOU215 - 15 Amp Circuit Breaker

QOU215 - 15 Amp Circuit Breaker

When you're working on an electrical installation, the right circuit breaker makes all the difference. You want something that fits your setup, protects your circuit, and doesn't complicate installation.

Whether you're replacing an existing QOU215 or building a new electrical assembly, you get a familiar Square D design with clear electrical ratings and installation requirements.

Key Features and Benefits

• 15-Amp, Two-Pole Design: Provides overcurrent protection for compatible two-pole electrical circuits.
• Thermal-Magnetic Protection: Responds to both sustained overloads and short-circuit conditions.
• VisiTrip Indicator: Provides a visible indication when the breaker trips, making troubleshooting easier.
• Flexible Mounting: Supports DIN rail, surface, and flush mounting with the proper hardware.
• Unit-Mount Construction: Suitable for individually mounted breaker applications rather than standard QO plug-on load centers.
• Copper and Aluminum Wire Compatibility: Accepts approved copper or aluminum conductors through slotted box lug connections.
• AC and DC Applications: Supports the manufacturer's specified AC and DC operating voltages, subject to the appropriate application ratings.

Technical Specifications

• Brand: Square D

• Manufacturer: Schneider Electric

• Catalog Number: QOU215

• Product Series: QOU

• Product Type: Miniature molded case circuit breaker

• Circuit Breaker Type: Standard

• Rated Current: 15 Amps

• Number of Poles: 2

• Trip Mechanism: Thermal-magnetic

• Trip Indicator: VisiTrip

• Rated AC Voltage: 120V AC / 120/240V AC

• Rated DC Voltage: 48V DC

• AC Interrupting Rating: 10kA at 120V AC and 120/240V AC

• Mounting Mode: Unit mount

• Mounting Options: DIN rail, surface, or flush mounting with appropriate accessories

• Line-Side Connection: Slotted box lugs

• Load-Side Connection: Slotted box lugs

• Compatible Conductor Materials: Copper and aluminum

• Accepted Wire Size Range: 14 AWG to 2 AWG

• Terminal Tightening Torque: 45 lbf-in (5.08 N·m)

• Height: 4.05 inches (102.87 mm)

• Width: 1.50 inches (38.1 mm)

• Depth: 2.95 inches (74.93 mm)

• Application Classification: HACR rated

• Country of Origin: Mexico


Material Compliance and Certifications

• UL Listed: Identified as UL Listed in the manufacturer's product specifications.
• CSA Certified: Carries CSA certification for its applicable electrical ratings.
• IEC Certification Reference: IEC is listed in the manufacturer's certification listing; the supplied information does not identify a specific IEC standard.
• HACR Rated: Approved for applicable heating, air conditioning, and refrigeration applications.
• Copper and Aluminum Conductor Compatibility: Slotted box lugs accept approved copper and aluminum wiring from 14 AWG through 2 AWG.

Where It Works Best

• Residential Electrical Installations

• Commercial Electrical Systems

• 15-Amp Two-Pole Circuits

• Electrical Control Panels

• Custom Electrical Enclosures

• DIN Rail-Mounted Assemblies

• Surface-Mounted Breaker Installations

• Flush-Mounted Electrical Assemblies

• HVAC Control Equipment

• Refrigeration Equipment

• Electrical Equipment Maintenance
