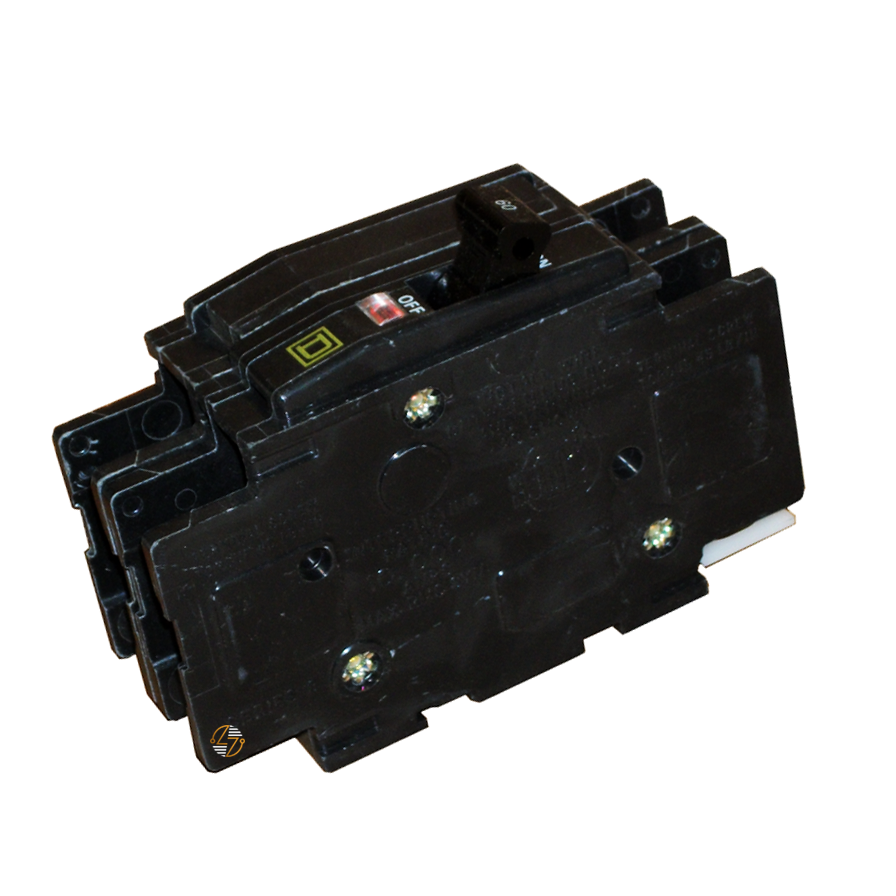

QOU2100 - 100 Amp Circuit Breaker

QOU2100 - 100 Amp Circuit Breaker

The QOU2100 breaker is ideal for service panels, load centers, and branch circuits across homes, offices, and industrial buildings. Contractors, electricians, and engineers appreciate its blend of reliability and versatility. Whether managing HVAC units, lighting or motor loads, this breaker handles higher amperage circuits cleanly and safely. If you need a solid, long‑lasting breaker that’s easy to install and maintain, the QOU2100 fits the bill.

Key Features and Benefits

• Dual‑mode overcurrent protection: (instantaneous + time-delayed) for both overloads and short‑circuit events
• 10 kA interrupting capacity: ensures it can safely interrupt severe fault currents
• Visible trip indicator (VisiTrip): to quickly identify and reset tripped breakers
• Flexible mounting options:—DIN rail, surface, or flush install with included mounting feet
• Built to last: in humid or salty conditions without losing performance

Technical Specifications

• Series: QOU
• Current Rating: 100 Amps
• Voltage Ratings: 120/240 VAC, 48 V DC
• Poles: 2‑pole
• Interrupt Rating: 10 kA at 120/240 V AC
• Connection Type: Slotted box lugs (line and load)
• Wire Compatibility: AWG 14–2, copper or aluminum
• Dimensions:
  • Height: 4.05″
  • Width: 1.50″
  • Depth: 2.95″
• Weight: ≈0.75 lb (0.34 kg)

Material Compliance and Certifications

• Green Premium: Meets Schneider Electric’s standards, free from mercury, halogens, and other toxic heavy metals.
• Compliance: Complies with both RoHS and REACH regulations.
• Certifications: UL Listing and CSA Certification, ensuring safety and quality per North American guidelines.

Suitability

• The QOU2100 breaker is ideal for service panels, load centers, and branch circuits across homes, offices, and industrial buildings. Contractors, electricians, and engineers appreciate its blend of reliability and versatility. Whether managing HVAC units, lighting or motor loads, this breaker handles higher amperage circuits cleanly and safely. If you need a solid, long‑lasting breaker that’s easy to install and maintain, the QOU2100 fits the bill.
