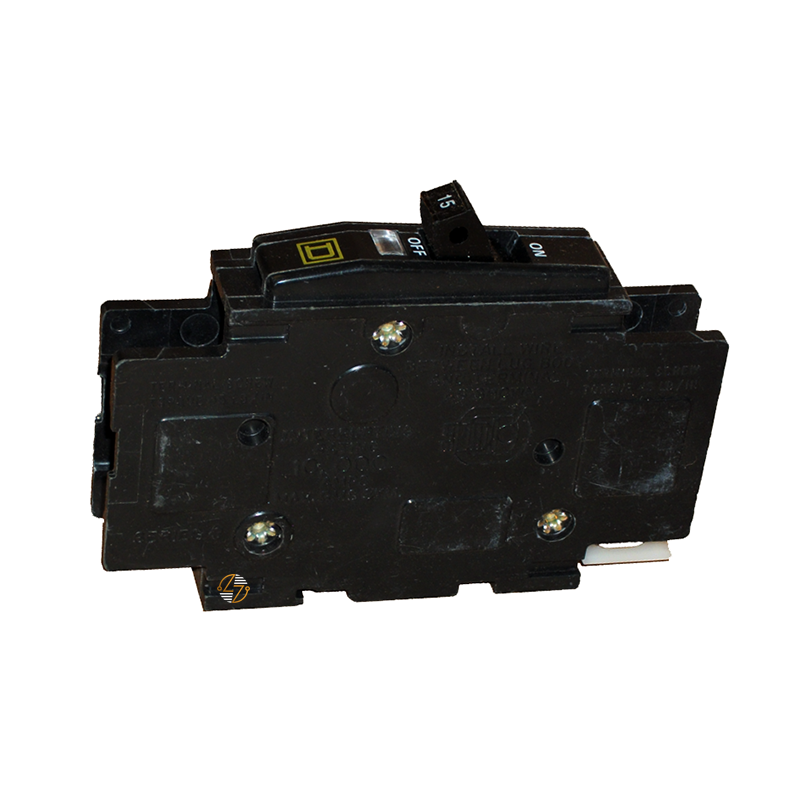

Need a 60-amp breaker that fits your electrical setup without wasting space? The Square D QOU160 60 Amp Circuit Breaker from Schneider Electric is built for residential and commercial electrical systems that use QOU miniature molded case breakers. With a single-pole design, thermal-magnetic circuit protection, and a compact 0.75-inch width, it's a practical choice for equipment where the right electrical ratings and mounting arrangement matter.

Key Features and Benefits

• 60-Amp Circuit Protection: Designed for circuits requiring a 60-amp, single-pole breaker. It helps protect properly sized conductors and connected equipment against overloads and short circuits.
• Thermal-Magnetic Trip Operation: Two types of protection work together. The thermal element responds to sustained overloads, while the magnetic element reacts quickly to short-circuit conditions.
• VisiTrip Trip Indicator: Wondering whether the breaker has tripped? The built-in visual indicator makes it easier to identify during troubleshooting and maintenance.
• AC and DC Voltage Ratings: The breaker is rated for 120V AC, 120/240V AC, and 48V DC operation. DC installations require verification of the applicable DC interrupting rating and system compatibility.
• Copper and Aluminum Conductor Compatibility: Slotted box lugs accommodate the manufacturer's specified range of copper and aluminum conductors.
• Manual Switching Capability: The breaker can also be operated manually to open or close a circuit where permitted by the installation and equipment requirements.

Technical Specifications

• Manufacturer: Schneider Electric

• Brand: Square D

• Catalog Number: QOU160

• Product Series: QOU

• Product Type: Miniature molded case circuit breaker

• Circuit Breaker Type: Standard

• Rated Current: 60 Amps

• Number of Poles: 1

• Trip Mechanism: Thermal-magnetic

• Trip Indication: VisiTrip

• Rated Operational Voltage: 120V AC, 120/240V AC, 48V DC

• Interrupting Rating at 120V AC: 10kA

• Interrupting Rating at 120/240V AC: 10kA

• Application Classification: HACR rated

• Mounting Mode: Unit mount

• Mounting Arrangements: DIN rail, surface, or flush mounting with appropriate hardware

• Line-Side Connection: Slotted box lug

• Load-Side Connection: Slotted box lug

• Compatible Conductor Materials: Copper and aluminum

• Manufacturer-Listed Conductor Range: 14 AWG to 2 AWG

• Terminal Tightening Torque: 45 lbf-in (5.08 N·m)

• Height: 4.05 inches (102.87 mm)

• Width: 0.75 inches (19.05 mm)

• Depth: 2.95 inches (74.93 mm)

• Manufacturer-Stated Warranty: 18 months

• Country of Origin: Mexico


Material Compliance and Certifications

Electrical safety isn't something to guess about. Schneider Electric identifies the QOU160 with the following certifications and classifications:

• UL Listed
• CSA Certified
• IEC
• HACR Rated
• Manufacturer Specification Verification

Where It Works Best

• Residential Electrical Equipment

• Commercial Electrical Installations

• Heating and Air Conditioning Equipment

• Refrigeration Systems

• Electrical Control Panels

• Industrial Equipment Enclosures

• DIN Rail-Mounted Electrical Assemblies

• Surface-Mounted Electrical Equipment

• Flush-Mounted Electrical Assemblies

• Compatible 60-Amp AC Circuits

• Compatible 48V DC Electrical Systems

• Electrical Equipment Maintenance

• Existing QOU160 Circuit Breaker Replacements

• Space-Constrained Electrical Enclosures
