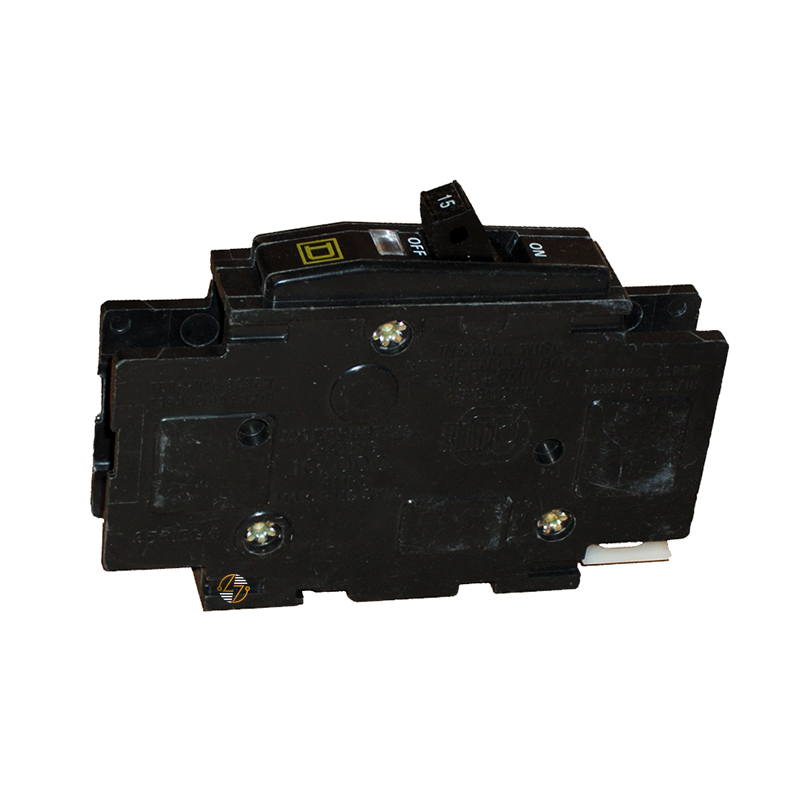

QOU140 - 40 Amp Circuit Breaker

QOU140 - 40 Amp Circuit Breaker

When you need dependable circuit protection without wasting space, the Schneider Electric Square D QOU140 40 Amp Miniature Circuit Breaker offers a practical solution for residential and commercial electrical systems. As part of the Square D QOU series, this single-pole, thermal-magnetic circuit breaker protects electrical circuits against overloads and short circuits while providing convenient manual switching.

Key Features and Benefits

• 40-Amp Circuit Protection: Rated for 40 amps, the QOU140 helps protect properly sized electrical circuits against overload and short-circuit conditions.
• Single-Pole Configuration: Its single-pole design suits compatible single-pole circuit applications in residential, commercial, and equipment installations.
• Thermal-Magnetic Protection: Combines thermal overload protection with magnetic short-circuit protection to address different overcurrent conditions.
• VisiTrip Trip Indication: A visual trip indicator helps maintenance personnel quickly see when the breaker has tripped, making circuit identification and troubleshooting easier.
• AC and DC Application Capability: Manufacturer-specified voltage ratings include 120/240VAC, 120VAC, and 48VDC, allowing use in compatible systems when all applicable electrical ratings are satisfied.

Technical Specifications

• Manufacturer: Schneider Electric

• Brand: Square D

• Catalog Number: QOU140

• Product Series: QOU

• Product Type: Miniature molded case circuit breaker

• Circuit Breaker Type: Standard

• Rated Current: 40 Amps

• Number of Poles: 1

• Trip Mechanism: Thermal-magnetic

• Trip Indication: VisiTrip visual trip indication

• Rated Operational Voltage: 120/240VAC, 120VAC, and 48VDC

• AC Interrupting Rating: 10kA at 120/240VAC

• Additional AC Interrupting Rating: 10kA at 120VAC

• Application Rating: HACR rated

• Mounting Mode: Unit mount

• Mounting Options: DIN rail, surface, or flush mounting with appropriate mounting accessories

• Line-Side Connection: Slotted box lug

• Load-Side Connection: Slotted box lug

• Compatible Conductor Material: Aluminum or copper

• Conductor Size Range: 14 AWG to 2 AWG, subject to applicable conductor and installation requirements

• Terminal Tightening Torque: 45 lbf-in (5.08 N·m)

• Height: 4.05 inches (102.87 mm)

• Width: 0.75 inches (19.05 mm)

• Depth: 2.95 inches (74.93 mm)

• Country of Origin: Mexico

• Manufacturer-Stated Warranty: 18 months


Material Compliance and Certifications

• UL Listed
• CSA Certification
• IEC Certification
• Manufacturer-Verified Specifications
• HACR Application Rating

Where It Works Best

• Residential Electrical Circuit Protection

• Commercial Electrical Installations

• HVAC Equipment Circuits

• Heating and Refrigeration Equipment

• Electrical Control Panels

• Equipment Disconnecting and Switching Applications

• DIN Rail-Mounted Electrical Assemblies

• Surface-Mounted Electrical Enclosures

• Flush-Mounted Electrical Installations

• Compatible 40-Amp AC Circuits

• Compatible 48VDC Electrical Circuits

• Electrical Equipment Maintenance and Repairs

• Industrial Equipment Auxiliary Circuits

• Space-Constrained Electrical Assemblies
