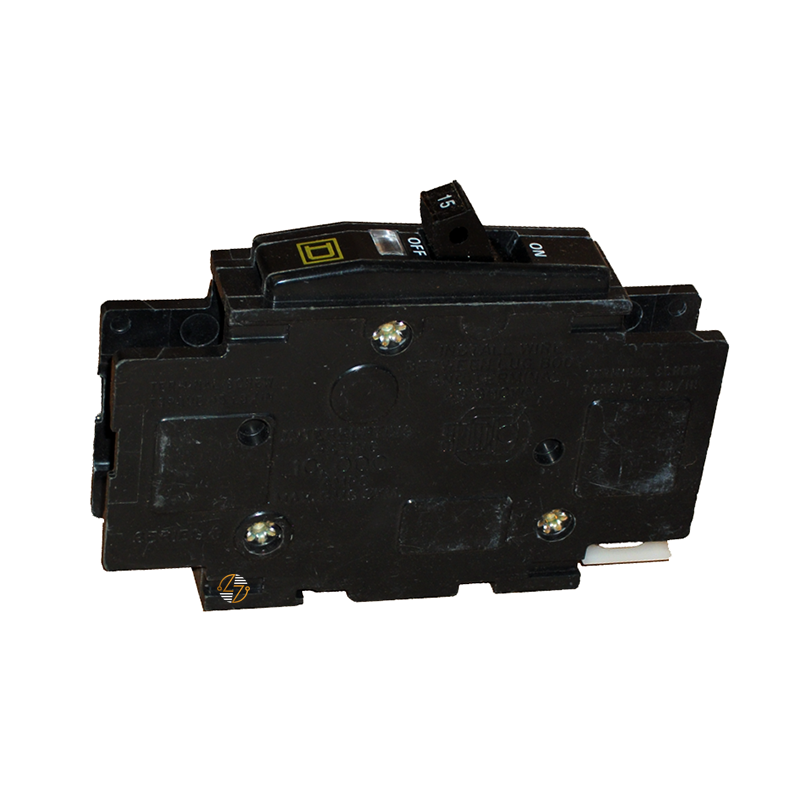

QOU115 - 15 Amp Circuit Breaker

QOU115 - 15 Amp Circuit Breaker

Upgrade your electrical protection with the Schneider Electric QOU115 15‑amp circuit breaker, designed for both residential and commercial use. As part of the reputable QOU series, this single‑pole unit delivers dependable overcurrent protection at 120/240 V AC, with a 10 kA interrupting capacity—perfect for handling heavy-duty electrical demands. Featuring a combined thermal‑magnetic trip mechanism and a VisiTrip indicator, it protects against short circuits and overloads while making troubleshooting easier. Its compact form factor and flexible mounting make QOU115 a great fit for various installations.

Key Features and Benefits

• Efficient thermal‑magnetic trip design offering both instantaneous short‑circuit response and delayed overload protection.
• 10 kA interrupt rating means strong fault handling capability, ideal for demanding circuits.
• VisiTrip visual trip indicator delivers fast, clear notification when the breaker has tripped.
• Space‑saving single‑pole layout fits easily into standard QOU spaces.
• Multiple mounting options support OEM configurations and diverse installation needs.
• Built to last—durable construction ensures reliable performance in everyday use.

Technical Specifications

• Product Model: QOU115 Miniature Circuit Breaker
• Series: QOU
• Current Rating: 15 Amps
• Voltage Rating: 120/240 V AC
• Interrupt Capacity: 10,000 A (10 kA) at 120/240 VAC
• Poles: 1
• Trip Mechanism: Thermal‑Magnetic
• Visual Indicator: VisiTrip Trip Flag
• Connection Type: Slotted box lugs (load and line sides)
• Wire Range: AWG 14 to AWG 2 (Cu/Al)
• Size (H×W×D): 4.05″ × 0.75″ × 2.95″ (102.9 mm × 19.1 mm × 74.9 mm)
• Weight: 0.311 lb (0.141 kg)

Material Compliance and Certifications

• Green Premium™ Standards: Free from halogens, mercury, and heavy metals, aligning with RoHS and REACH environmental regulations.
• Certifications: UL Listed and CSA Certified, meeting rigorous safety and quality benchmarks.

Suitability

• The QOU115 is well-suited for panelboards, load centers, and electrical distribution systems in homes, offices, and small industrial setups. Whether you're a contractor or an electrician upgrading a service panel or installing new circuits, this breaker delivers dependable protection and easy replacement in standard QOU slots.
