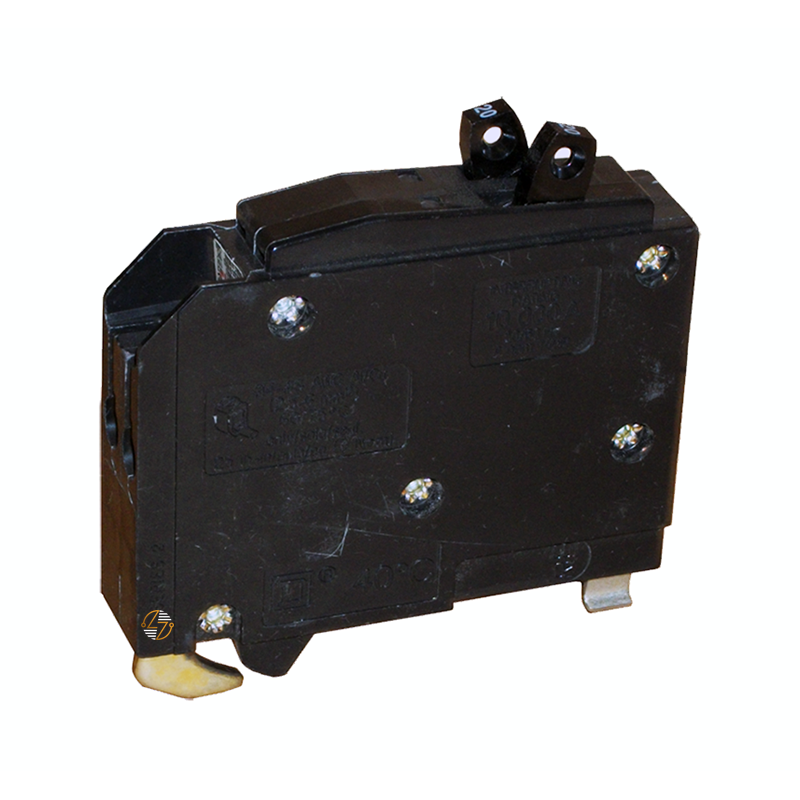

QOT2020 - Duplex 20/20 Circuit Breaker

QOT2020 - Duplex 20/20 Circuit Breaker

Get reliable overcurrent protection while saving panel space with the QOT2020 tandem mini circuit breaker from Schneider Electric’s trusted QO series. This compact unit houses two independent 20 A breakers in a single slot—perfect for installations where every inch counts. Designed for 120/240 VAC systems and offering a 10 kA interrupt capacity, this breaker blends safety, convenience, and top‑tier performance for residential, commercial, or light industrial use.

Key Features and Benefits

• Space‑Saving Tandem Design: Two 1‑pole breakers in one space—maximize your panel real estate and simplify installations in tight interiors.
• Dependable Overcurrent Protection: Keeps circuits secure from overloads and faults, enhancing the safety and reliability of your electrical setup.
• VisiTrip Indicator: The clear trip indicator shows when a breaker has tripped, making troubleshooting fast and straightforward.
• Quick‑Make, Quick‑Break Action: The over‑center, trip‑free toggle ensures fast response in fault conditions—no delays, no fuss.
• Plug‑In Mounting: Installs quickly via plug‑in design—get it in and ready with minimal hassle.
• High Fault‑Handling Capacity: Rated at 10 kA for 120/240 VAC, able to interrupt substantial fault currents to protect your panel.

Technical Specifications

• Current Rating: 20 A per pole
• Voltage Rating: 120/240 VAC
• Interrupt Rating: 10 kA at 120/240 VAC
• Mounting Type: Plug‑in
• Number of Poles: 2 × 1P (tandem)
• Connection Type: Pressure plate
• Wire Compatibility: AWG 14–8 copper; AWG 12–8 aluminum
• Tightening Torque: 24.8 lbf·in (2.8 N·m)
• Dimensions:
  • Height: 3.2 in (82 mm)
  • Width: 0.7 in (19 mm)
  • Depth: 2.9 in (74 mm)
• Weight: 0.351 lb (0.159 kg)

Material Compliance and Certifications

• UL Listed (UL File E84967) and CSA Certified (CSA Master Contract 153555): for assured safety and performance.
• RoHS and REACh Compliant: Free from hazardous materials.
• Green Premium Certified: Produced without mercury, heavy metals, or halogens and supports a sustainable, circular economy model.

Where It Works Best

• Residential breaker panels needing extra circuits without expansion.
• Commercial spaces where optimizing panel slots saves time and money.
• Light industrial or commercial environments that require dependable protection in confined boxes.
