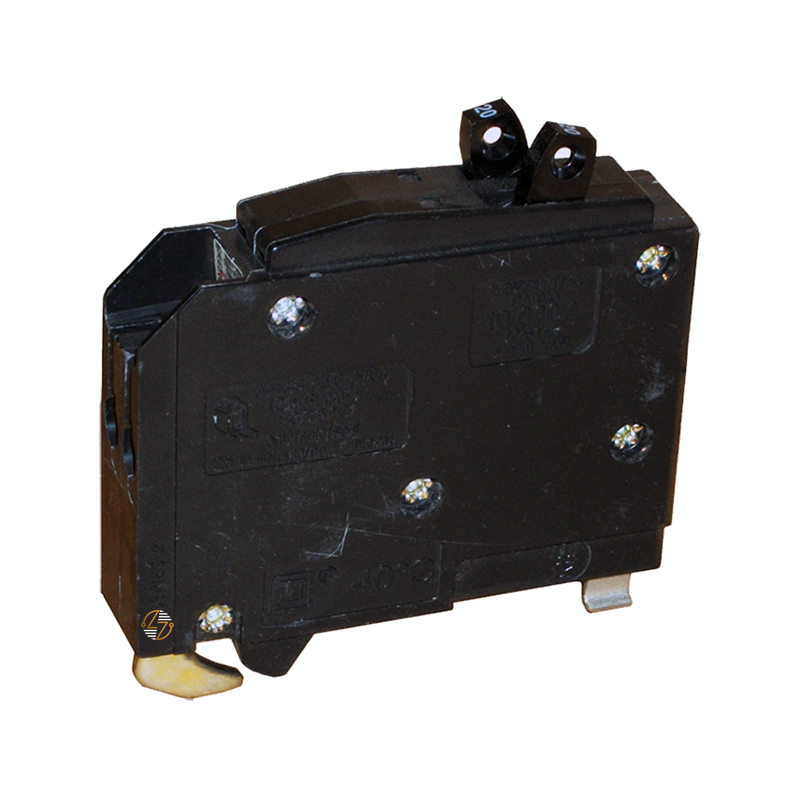

QOT1515 - Duplex 15/15 Circuit Breaker

QOT1515 - Duplex 15/15 Circuit Breaker

Upgrade your electrical system with the Schneider Electric QOT1515 Duplex Tandem Mini Breaker, a compact and dependable over‑current protection device built to save space and boost panel capacity. Designed for 120/240 VAC single‑phase systems, it packs two 15 A one‑pole breakers into a single slim footprint—perfect where panel real estate is tight. With a 10 kA interrupt rating, clear VisiTrip trip indicator, and easy plug‑in installation, it’s a smart choice for homes, businesses, and light‑industrial setups.

Key Features and Benefits

• Space‑Saving Tandem Design: Doubles up on breakers in a single slot — ideal for tighter panels or expansion without rewiring.
• Clear Trip Indicator: The VisiTrip visual flag makes it easy to see when the breaker has tripped, so you can troubleshoot quickly.
• Fast‑Acting Toggle Mechanism: With over‑center, trip‑free action, it delivers dependable circuit interruption when needed.
• Plug‑In Installation: Simple and quick to install—no special tools required, just plug the breaker into the panel.
• High Fault Current Rating: Withstands up to 10 kA at 120/240 VAC, offering strong protection against electrical faults.

Technical Specifications

• Current Rating: 15 A per pole

• Voltage: 120/240 VAC

• Interrupting Capacity: 10 kA @ 120/240 VAC

• Configuration: Tandem (2 × 1‑pole breakers)

• Mounting: Plug‑in

• Electrical Connection: Pressure‑plate terminal

• Wire Compatibility: AWG 14–8 copper; AWG 12–8 aluminum

• Tightening Torque: 24.8 lbf·in (2.8 N·m)

• Size:
  • Height: 3.2″ (82 mm)
  • Width: 0.7″ (19 mm)
  • Depth: 2.9″ (74 mm)
• Weight: 0.320 lb (0.145 kg)


Material Compliance and Certifications

• UL Listed: (File E84967) and CSA Certified (Master Contract 153555)
• RoHS & REACh Compliant: Free from hazardous substances, supporting safer electrical installations
• Green Premium Certified: Mercury‑free, halogen‑free, and toxic heavy metal‑free design that aligns with Schneider Electric’s environmental and low‑CO₂ standards

Suitability

• The QOT1515 is ideal for:
  • Residential panels where space is limited but you need to add circuits
  • Commercial installations—for small offices, retail outlets, or tenant spaces
  • Light industrial environments where multiple branch circuits are required in compact panels
