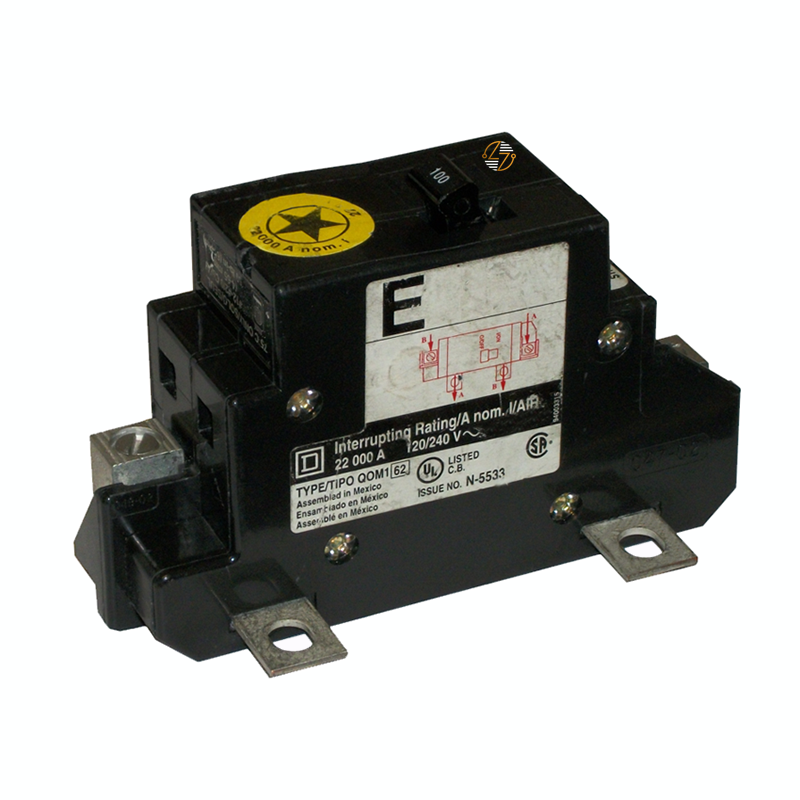

QOM100VH - 100 Amp Circuit Breaker

QOM100VH - 100 Amp Circuit Breaker

The QOM100VH is a main residential bolt-in molded case thermal magnetic circuit breaker engineered to provide dependable overcurrent and short-circuit protection for residential electrical distribution systems. Built for secure bolt-in installation, this breaker helps maintain a reliable electrical connection while delivering consistent performance under demanding operating conditions. With an interrupting capacity of 22kA at 240VAC, the QOM100VH is designed to help safeguard electrical equipment and service entrance applications against damaging fault currents. Whether you're replacing an existing main breaker during maintenance or completing a panel upgrade, this breaker offers the dependable protection and long-term performance electricians, contractors, and facility professionals expect.

Key Features and Benefits

• Main residential bolt-in molded case circuit breaker: Designed for residential electrical distribution systems.
• Thermal magnetic trip mechanism: Provides protection against overloads and short circuits.
• 22kA A.I.C. rating at 240VAC: Provides reliable fault interruption.
• Secure bolt-in mounting: Helps ensure a stable electrical connection.
• Dependable performance: Designed for dependable performance in residential electrical systems.
• Overcurrent protection: Helps protect service equipment and connected electrical components from overcurrent conditions.
• Ideal for maintenance and upgrades: Well-suited for replacement, maintenance, and panel upgrade applications.


Technical Specifications

• Part Number: QOM100VH

• Product Type: Main Residential Bolt-In Molded Case Circuit Breaker

• Trip Type: Thermal Magnetic

• A.I.C. Rating: 22kA

• Voltage Rating: 240VAC

• Mounting Style: Bolt-In

• Dimensions:
  • Height: 5.0 in.
  • Width: 2.75 in.
  • Depth: 3.0 in.

Material Compliance and Certifications

• Industry Standards: The QOM100VH is manufactured for use in electrical distribution applications and is designed to meet applicable industry standards for molded case circuit breakers.
• Installation Requirements: Always verify compatibility with your electrical panel and confirm that installation complies with local electrical codes and project-specific requirements.
• Professional Installation: Installation should be performed by a qualified electrical professional.


Where It Works Best

• The QOM100VH is an excellent choice for residential service entrance equipment, main breaker panels, home electrical system upgrades, replacement of existing main breakers, and preventive maintenance projects. Its bolt-in design and thermal magnetic protection make it well suited for applications where dependable circuit protection and secure installation are essential to maintaining safe, reliable electrical service.
