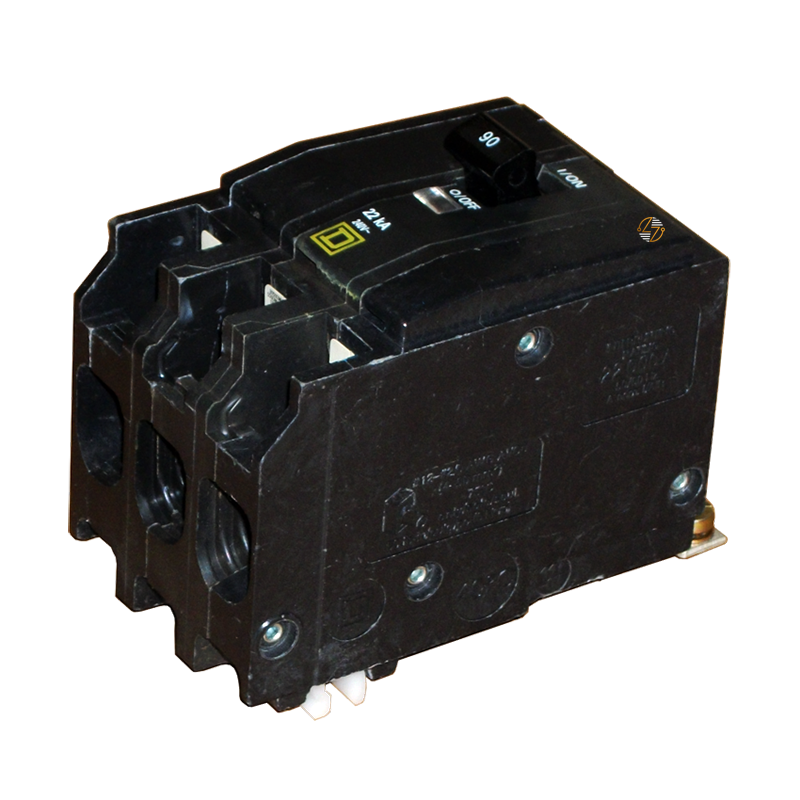

QOB380VH - 80A Circuit Breaker

QOB380VH 80A Circuit Breaker

When it comes to safeguarding your electrical systems, the QOB380VH mini circuit breaker stands out as a top-tier choice, providing unparalleled protection and performance. Engineered by Schneider Electric, a leader in electrical distribution solutions, this 80-amp, 3-pole breaker is designed to deliver superior overcurrent protection and efficient switching for both AC and DC systems. Whether you're upgrading your home, industrial, or commercial electrical infrastructure, the QOB380VH is built to handle demanding environments with ease.

Key Features and Benefits:

• High Breaking Capacity: With a 22kA breaking capacity at 120/240V AC, the QOB380VH ensures reliable interruption of high fault currents, protecting your electrical systems from damage.
• Robust Design: The bolt-on mounting style provides secure and stable installation, ideal for panels where durability and longevity are critical.
• Quick Make, Quick Break: The over-center, trip-free toggle mechanism features quick make, quick break action, ensuring rapid response to electrical faults, minimizing potential hazards.
• VisiTrip‰ã¢ Indication: The built-in VisiTrip‰ã¢ feature provides a clear visual indication when the circuit breaker has tripped, allowing for swift identification and resolution of issues.
• Versatile Application: Suitable for a variety of settings, including residential, commercial, and industrial installations, making it a versatile addition to any electrical panel.

Technical Specifications:

• Current Rating: 80 A
• Voltage Rating: 120/240 V AC
• Poles: 3
• Interrupt Rating: 22 kA at 120/240 V AC
• Mounting Type: Bolt-on
• Dimensions: Height ‰ÛÒ 3.50 in (89 mm), Width ‰ÛÒ 2.24 in (57 mm), Depth ‰ÛÒ 2.91 in (74 mm)
• Weight: 1.05 lb (0.476 kg)
• Wire Size Compatibility: AWG 4 to AWG 2/0, both copper and aluminum
• Tightening Torque: 49.56 lbf.in (5.6 N.m)

Material Compliance and Certifications:

• Environmental Performance: Certified to meet RoHS/REACh standards, the QOB380VH is designed with sustainability in mind, ensuring minimal environmental impact.
• Certifications: UL Listed (UL File E84967) and CSA Certified (CSA Master Contract 153555), providing assurance of safety and reliability.
• Green Premium‰ã¢ Label: Committed to delivering best-in-class environmental performance, Schneider Electric‰۪s Green Premium‰ã¢ label signifies compliance with the latest regulations and transparency in environmental impacts.

Suitability:

• Residential Electrical Panels: Providing reliable protection for home electrical systems against overloads and short circuits.
• Commercial Applications: Ensuring the safety and efficiency of electrical systems in commercial buildings, from small businesses to large office complexes.
• Industrial Settings: Withstanding the rigors of industrial environments, offering dependable protection and performance in factories, warehouses, and other industrial facilities.

Upgrade your electrical system with the QOB380VH mini circuit breaker and experience peace of mind knowing your installations are safeguarded by one of the most trusted names in the industry.
