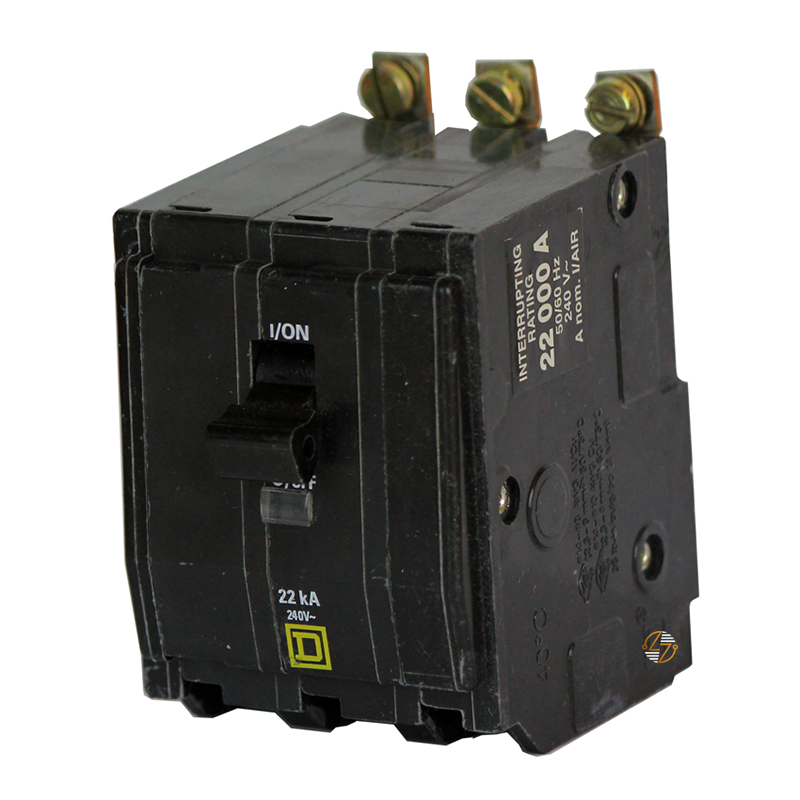

QOB360VH - 60 Amp Circuit Breaker

QOB360VH - 60 Amp Circuit Breaker

Power up your electrical panel with the Schneider Electric QOB360VH, a dependable 60‑amp, 3‑pole circuit breaker designed for consistent, high‑quality protection. Engineered for 120/240 VAC systems, it delivers an impressive 22 kA interrupting capacity, ensuring fast response during overloads and short circuits. Its easy bolt‑on mounting system and compact design make it a top pick for electricians, contractors, and facility managers working across residential, commercial, and light industrial environments.

Key Features and Benefits

• Advanced Overload Protection: Equipped with a thermal‑magnetic trip mechanism that automatically shuts off power during hazardous current spikes, keeping your equipment and wiring safe.
• High Fault Interrupting Capability: With a 22 kA rating, this breaker can safely interrupt large fault currents, minimizing downtime and reducing fire hazards.
• Effortless Installation: Bolt‑on mounting with secure box lug connections speeds up panelboard upgrades and simplifies maintenance.
• Quick Trip Detection: The built‑in VisiTrip indicator provides a clear visual flag when the breaker has tripped, helping you troubleshoot faster.
• Versatile Voltage Support: Works seamlessly with both AC and DC circuits, giving you flexibility for different setups and future upgrades.


Technical Specifications

• Model: QOB360VH (QO Series by Schneider Electric)

• Amperage: 60 Amps

• Voltage: 120/240 VAC

• Poles: 3

• Interrupting Rating: 22 kA @ 120/240 VAC

• Mounting: Bolt‑on

• Connection: Box lugs, supports wire sizes AWG 8–2 (copper or aluminum)

• Dimensions:
  • Height: 3.11″ (79 mm)
  • Width: 2.24″ (57 mm)
  • Depth: 2.91″ (74 mm)
• Weight: 1.10 lb (0.50 kg)

• Operating Temperature: Up to 104 °F (40 °C)


Material Compliance and Certifications

• Eco-Friendly Construction: Fully RoHS and REACh compliant with Schneider Electric’s Green Premium label for reduced environmental impact.
• Safety Standards: UL Listed (File E84967) and CSA Certified (Master Contract 153555), ensuring reliable, code-compliant protection for North American installations.


Suitability

• Perfect for main distribution panels, sub‑panels, or safeguarding critical circuits in residential homes, office buildings, retail spaces, or light industrial facilities. The QOB360VH is a strong choice when uninterrupted equipment performance and electrical safety are top priorities.
