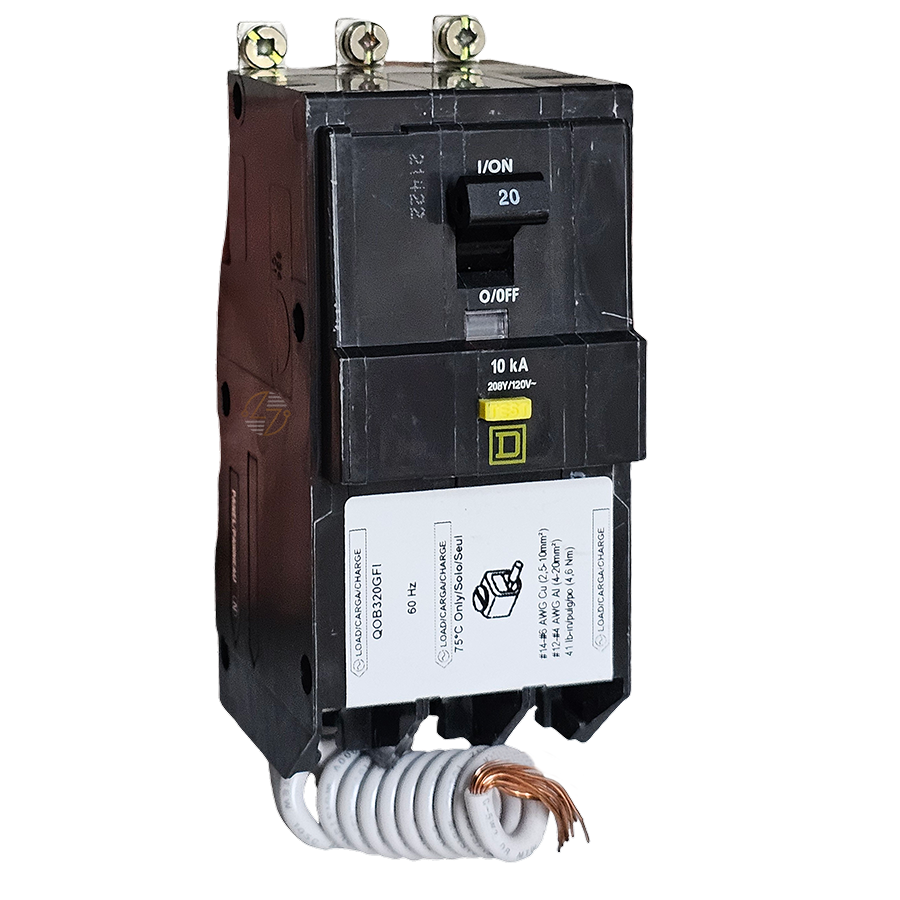

QOB320GFI - 20Amp Circuit Breaker

QOB320GFI - 20Amp Circuit Breaker

The Square D䋢 QOB320GFI Miniature Circuit Breaker by Schneider Electric is a top-tier solution for advanced electrical safety and reliability. Designed with a focus on performance, it combines overload, short circuit, and ground fault protection to deliver optimal functionality for both commercial and residential applications. This bolt-on 3-pole circuit breaker is rated at 20A and operates at 208Y/120VAC, providing a 10kA interrupting capacity, ensuring robustness in diverse power distribution setups. Its integrated Class A ground fault protection with a 6mA sensitivity enhances safety by mitigating electrical hazards. Additionally, the unit features a convenient pigtail connection, making it simple to install in various QO distribution panels.

Key Features and Benefits

• Enhanced Safety:åÊIncludes Class A 6mA ground fault protection for superior user safety.

• High Durability:åÊBuilt with high-quality materials, offering consistent performance in demanding environments.

• Ease of Installation:åÊBolt-on mounting and pigtail connections streamline the setup process, reducing downtime.

• Versatile Applications: Suitable for a variety of commercial and residential power distribution needs.

• Comprehensive Protection: Combines overload, short circuit, and ground fault functionalities in a single unit.


Technical Specifications

• Current Rating:åÊ20A

• Voltage Rating:åÊ208Y/120 Volts AC

• Interrupting Capacity: 10 kA

• Mounting Type:åÊBolt-on

• Poles: 3

• Wire Size:

  • Aluminum: AWG 12‰ÛÒ4

  • Copper: AWG 14‰ÛÒ6

• Tightening Torque: 35.4 to 40.7 lbf.in

• Dimensions: Height ‰ÛÒ 4.1 in, Width ‰ÛÒ 2.2 in, Depth ‰ÛÒ 2.9 in

• Weight:åÊ1.0009 lbs (0.454 kg)


Material Compliance and Certifications

• Certifications: UL Listed (UL File E84967) and CSA Certified (CSA Master Contract 153555), ensuring compliance with industry safety standards.

• Environmental Commitment:åÊSchneider Electric adheres to eco-friendly practices, with the product being compliant with the EU RoHS Directive and REACh Regulation. Its manufacturing reflects the company's Net Zero ambitions.


Suitability

• Residential and light commercial power distribution panels.

• Environments requiring robust overload, short circuit, and ground fault protection.

• Applications necessitating Class A protection to meet stringent safety standards.


Optimize your electrical system‰۪s safety and efficiency with the Schneider Electric Square D‰ã¢ QOB320GFI. Its reliable performance and advanced features make it a trusted choice for modern power management needs.
