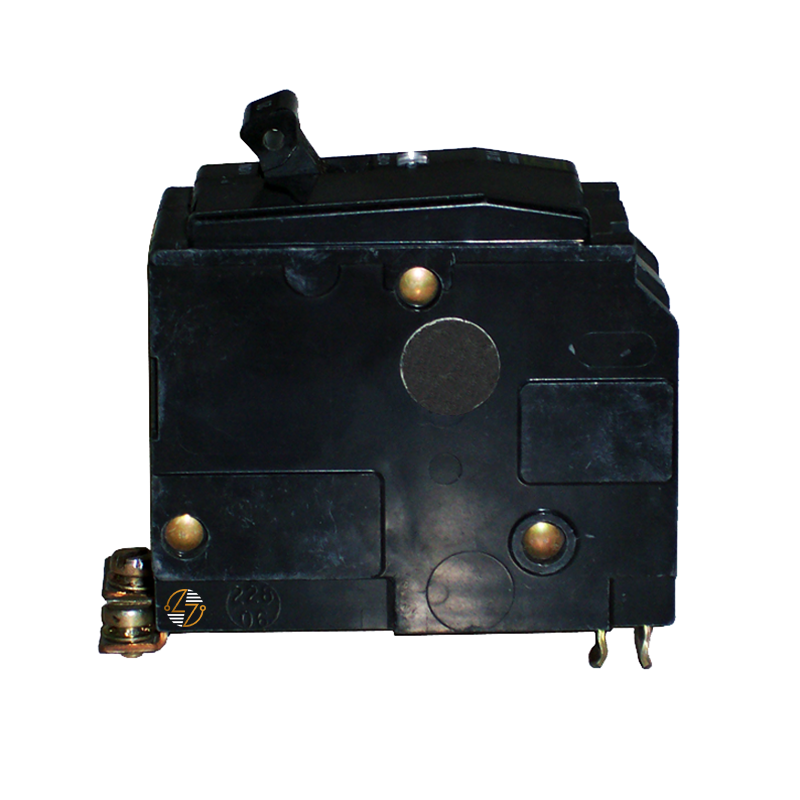

QOB230 - 30 Amp Circuit Breaker

QOB230 - 30 Amp Circuit Breaker

The Schneider Electric QOB230 is a 30 amp, 2-pole bolt-on circuit breaker designed to provide dependable overcurrent and short-circuit protection for commercial, industrial, and residential electrical distribution systems. Built for use with compatible QOB panelboards, this breaker features a secure bolt-on mounting design that helps maintain a reliable electrical connection in applications where vibration resistance and long-term stability are important. With a 10,000 A.I.C. interrupting rating at 120/240VAC, the QOB230 is engineered to help safeguard branch circuits while supporting consistent electrical system performance. Whether you're replacing an existing breaker or completing a new installation, the Schneider Electric QOB230 delivers the trusted quality, precise fit, and dependable protection professionals expect from the QOB series.

Key Features and Benefits

• Catalog Number: QOB230
• 30 Amp Rating: 30 Amp Rating for reliable branch circuit protection.
• 2-Pole Configuration: 2-Pole Configuration for 120/240VAC applications.
• Bolt-On Design: Bolt-On Design provides a secure, stable installation in compatible panelboards.
• 10kA Interrupting Capacity (A.I.C.): 10kA Interrupting Capacity (A.I.C.) at 120/240VAC for dependable fault protection.
• Compatible Panelboards: Designed for use with compatible Schneider Electric QOB panelboards.
• Compact Footprint: Compact footprint makes installation and panel organization easier.
• Long-Lasting Performance: Built for long-lasting performance in demanding electrical environments.

Technical Specifications

• Catalog Number: QOB230
• Manufacturer: Schneider Electric
• Type: QOB
• Mounting Style: Bolt-On
• Poles: 2
• Amperes: 30A
• Voltage Rating: 120/240VAC
• Interrupting Rating (A.I.C.): 10kA @ 120/240VAC
• Dimensions:
  • Height: 3.0 in.
  • Width: 1.5 in.
  • Depth: 2.5 in.

Material Compliance and Certifications

• Industry Standards: The Schneider Electric QOB230 is manufactured to meet applicable industry standards for low-voltage circuit protection and is produced using high-quality materials intended for dependable electrical performance.
• Installation Requirements: It is designed for installation in compatible equipment in accordance with applicable electrical codes and manufacturer specifications. Always verify compatibility with your panelboard and follow all local electrical codes and installation requirements.

Where It Works Best

• The QOB230 30A 2-pole bolt-on circuit breaker is well suited for a variety of electrical distribution applications, including commercial buildings and office facilities, industrial control panels and equipment, residential load centers using compatible QOB panelboards, branch circuit protection for HVAC systems, lighting, and general-purpose power circuits, and new installations, panel upgrades, and replacement projects requiring a QOB bolt-on breaker. Its bolt-on construction provides a secure connection that makes it an excellent choice for installations where reliability and consistent electrical performance are essential.
