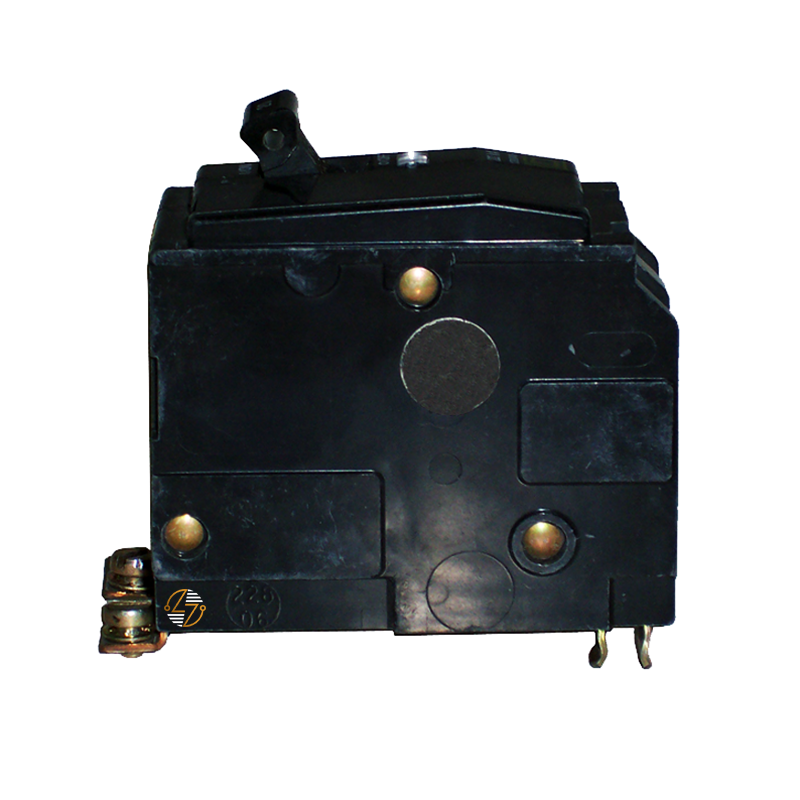

QOB220VH - 20 Amp Circuit Breaker

QOB220VH - 20 Amp Circuit Breaker

The Square D QOB220VH is a 20 amp, 2-pole bolt-on circuit breaker designed for use in compatible QO distribution equipment. Rated for 120/240VAC, it provides thermal-magnetic protection for your branch circuits, feeders, and other electrical distribution applications.

Its compact size and straightforward design have made QO breakers a common choice in commercial, industrial, and institutional electrical systems.

Key Features and Benefits

• 20 Amp current rating
• 2-pole breaker
• Bolt-on mounting
• Thermal-magnetic trip unit
• 22kA interrupting rating
• Visi-Trip® trip indication
• HACR rated
• Compatible with QO panelboard systems


Technical Specifications

• Manufacturer: Square D

• Catalog Number: QOB220VH

• Product Series: QO

• Current Rating: 20A

• Number of Poles: 2

• Voltage Rating: 120/240VAC

• Mounting Type: Bolt-On

• Interrupting Rating: 22kA

• Trip Technology: Thermal-Magnetic

• Electrical Connection: Pressure Plate

• Wire Range: AWG 14–8 Copper or Aluminum

• Tightening Torque: 4.6 N·m

• Height: 3.0 in.

• Width: 1.5 in.

• Depth: 2.9 in.

• Weight: 0.60 lb.


Material Compliance and Certifications

• UL Listed
• CSA Certified
• HACR Rated


Where It Works Best

• QO panelboards
• Commercial buildings
• Industrial facilities
• HVAC equipment
• Branch circuit protection
• Electrical distribution systems
• Service and replacement applications


The Square D QOB220VH is built for applications requiring a 20A, 2-pole bolt-on breaker and provides the proper fit and ratings for compatible QO electrical systems. This design has been used for years in a wide range of electrical installations and continues to be a practical option for maintenance, repair, and replacement work.
