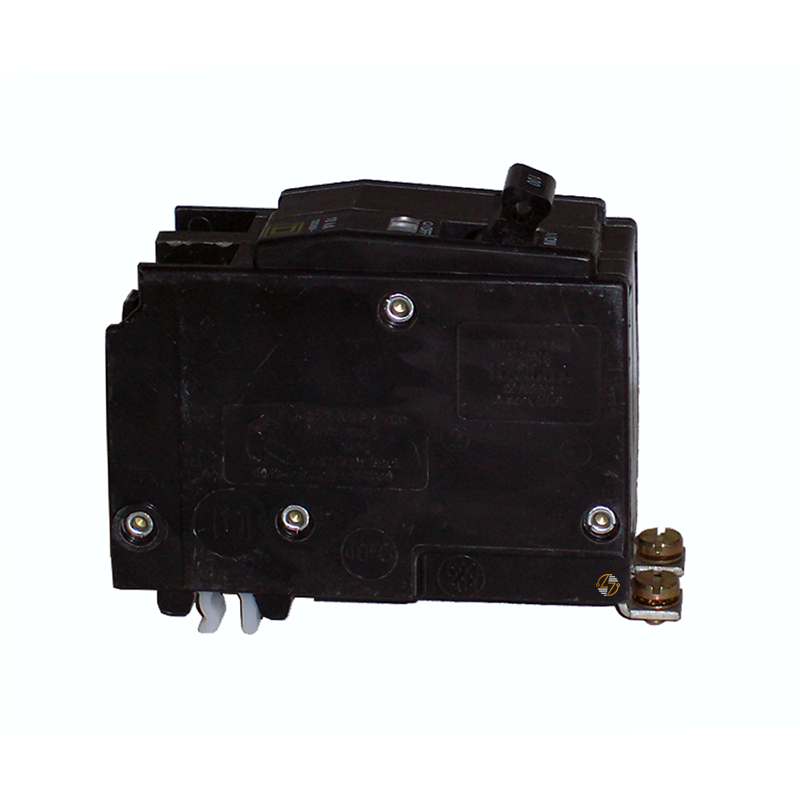

QOB2100VH - 100 Amp Circuit Breaker

QOB2100VH - 100 Amp Circuit Breaker

The Schneider Electric QOB2100VH Circuit Breaker is designed for dependable performance and safety in residential, commercial, and industrial electrical systems. Part of Schneider Electric’s trusted QO series, this bolt-on breaker delivers high-level overcurrent protection with a strong 22kA interrupting capacity, making it an excellent choice for demanding electrical environments. Its compact size and efficient design make installation straightforward while ensuring long-term durability and reliability.

Key Features and Benefits

• Enhanced Safety: Provides reliable overcurrent protection to prevent electrical damage and help maintain safe system operation.
• VisiTrip Indicator: A convenient built-in feature that visually signals when the breaker has tripped, allowing for faster troubleshooting.
• Quick Make, Quick Break Mechanism: Uses a trip-free toggle for smooth operation, ensuring safe and fast switching.
• Space-Saving Design: The shorter footprint and plug-on neutral setup simplify installation in a variety of electrical panels.
• High Fault Handling: Rated for 22kA interrupting capacity, capable of handling heavy fault currents for added system protection.


Technical Specifications

• Current Rating: 100 Amps

• Voltage Rating: 120/240V AC

• Interrupting Capacity: 22kA @ 120/240V AC

• Mounting: Bolt-on

• Poles: 2

• Electrical Connection: Box lugs

• Compatible Wire Sizes: AWG 4 – AWG 2/0 (copper or aluminum)

• Tightening Torque: 49.6 lbf.in (5.6 N.m)

• Dimensions:
  • Height: 3.5 in (89 mm)
  • Width: 1.5 in (38 mm)
  • Depth: 2.9 in (74 mm)
• Weight: 0.75 lb (0.34 kg)


Material Compliance and Certifications

• Certifications: UL Listed (UL File E84967), CSA Certified (CSA Master Contract 153555)
• Environmental Compliance: Meets RoHS and REACh standards—free from mercury, halogens, and other hazardous substances
• Sustainability: Carries Schneider Electric’s Green Premium label, supporting eco-friendly and low-CO₂ products with full transparency on environmental impact.


Suitability

• The QOB2100VH circuit breaker is a great fit for a wide range of installations, from home electrical panels to large commercial or industrial projects. Whether you’re upgrading an existing setup or starting a new installation, this breaker delivers steady, reliable protection to keep your electrical systems running safely and efficiently.
