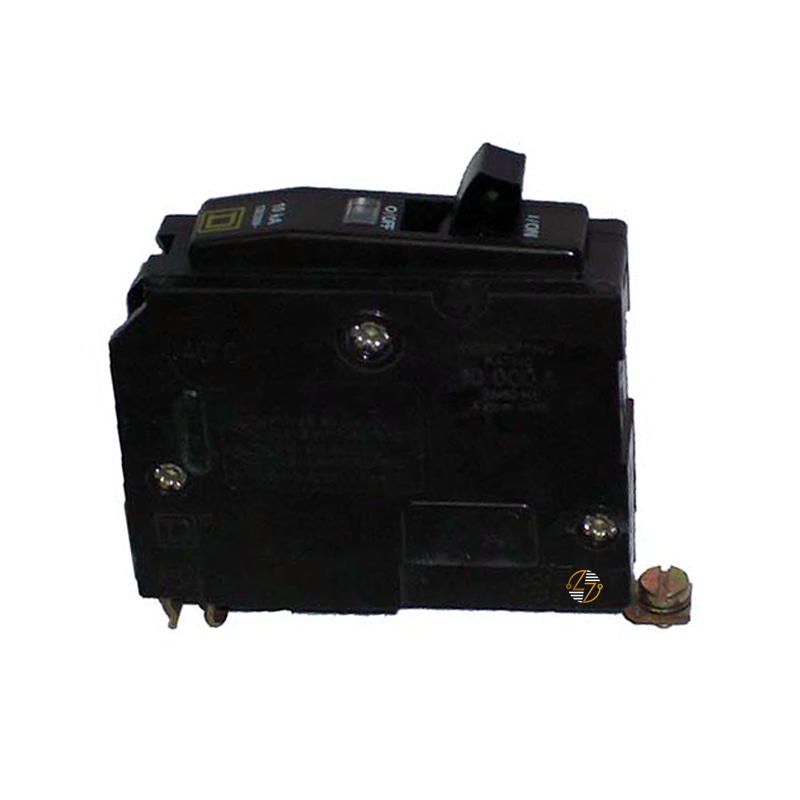

QOB160 - 60 Amp Circuit Breaker

QOB160 - 60 Amp Circuit Breaker

Upgrade your electrical panel with the QOB160 60 A Circuit Breaker from Schneider Electric’s trusted QO family—designed to deliver dependable, fast‑acting protection that keeps your circuits safe and your mind at ease. This bolt‑on, single‑pole device uses a thermal‑magnetic design to react swiftly to overloads or short circuits—helping you avoid damage and keep everything running smoothly.

Key Features and Benefits

• Instant Overload Response: The thermal‑magnetic system trips quickly when needed, protecting your wiring from overheating or damage.
• VisiTrip™ Visual Trip Indicator: No more guesswork about whether the breaker has tripped; the indicator gives you a clear view for fast, easy maintenance.
• Quick Make/Break Toggle: The over‑center, trip‑free switch delivers crisp ON/OFF action for added safety and confidence.
• Slim, Space‑Saving Profile: Its compact build slides into panelboards with ease, freeing up space while still performing reliably.
• Strong Interrupt Rating: With a 10 kA rating at 120/240 V AC, this breaker handles higher fault currents without missing a beat.

Technical Specifications

• Amperage: 60 A
• Voltage: 120/240 V AC
• Interrupting Capacity: 10 kA at 120/240 V AC
• Mounting Type: Bolt‑on
• Poles: 1‑Pole
• Connection: Box lugs, compatible with AWG 8–AWG 2 (copper or aluminum)
• Tightening Torque: 44.3 lbf·in (5 N·m)
• Dimensions: Height 3.1 in (79 mm) × Width 0.7 in (19 mm) × Depth 2.9 in (74 mm)
• Weight: 0.311 lb (0.141 kg)

Material Compliance and Certifications

• Safety Certified: UL Listed (File E84967) and CSA Certified (Master Contract 153555)
• Environmentally Sound: Meets RoHS and REACh standards—mercury‑free, halogen‑free, and free of heavy toxic metals
• Green Credential: Carries Schneider Electric’s Green Premium label, showing its low environmental impact and sustainable manufacturing

Where It Works Best

• Whether you’re upgrading a home panel, outfitting a commercial outlet, or protecting equipment in a light industrial setting, the QOB160 has you covered. It’s ideal for branch circuits in homes, moderate loads in commercial spaces, or wherever reliable overcurrent protection is a must. Quick to install and easy to maintain, this breaker is the practical choice for both repairs and new installations.
