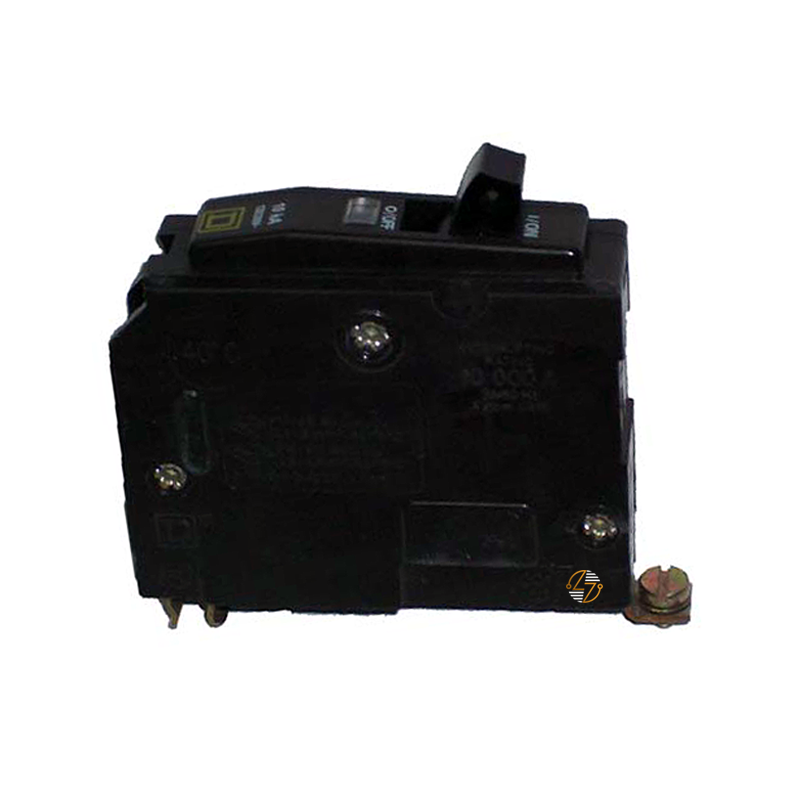

QOB130 - 30 Amp Circuit Breaker

QOB130 - 30 Amp Circuit Breaker

The QOB130 is a 30-amp, single-pole, bolt-on circuit breaker used in your compatible Type QOB panelboards. It is rated for 120VAC and has a 10kA interrupting capacity, making it suitable for protecting branch circuits against overloads and short circuits within its listed ratings. A bolt-on breaker is often chosen where a more secure connection to the panel is preferred. The mounting screws help keep the breaker firmly in place, which can be beneficial in commercial and industrial electrical equipment where panels may experience vibration or frequent servicing. If you're replacing an existing breaker, always match the Type, amp rating, voltage, and interrupting rating specified for the panel.

Key Features and Benefits

• Part Number: Part number: QOB130
• 30 Amp Rating: 30 amp rating
• Single-Pole Breaker: Single-pole breaker
• Type QOB: Type QOB
• Bolt-On Mounting: Bolt-on mounting
• 10kA Interrupting Rating: 10kA interrupting rating at 120VAC
• Compact Design: Compact design for compatible panelboards


Technical Specifications

• Part Number: QOB130

• Type: QOB

• Mounting: Bolt-On

• Poles: 1

• Amperes: 30

• Voltage: 120VAC

• A.I.C. Rating: 10kA @ 120VAC

• Dimensions:
  • Height: 3.0 in.
  • Width: 0.75 in.
  • Depth: 2.5 in.

Material Compliance and Certifications

• Intended Use: Intended for use in compatible electrical distribution equipment.
• Installation: Install in accordance with applicable electrical codes.
• Compatibility: Confirm compatibility with the panel before installation.


Where It Works Best

• The QOB130 is commonly found in commercial buildings, retail spaces, schools, offices, and light industrial facilities that use compatible Type QOB bolt-on panelboards. Typical applications include lighting circuits, receptacle circuits, and other 120 VAC branch circuits that require a 30-amp single-pole breaker.
