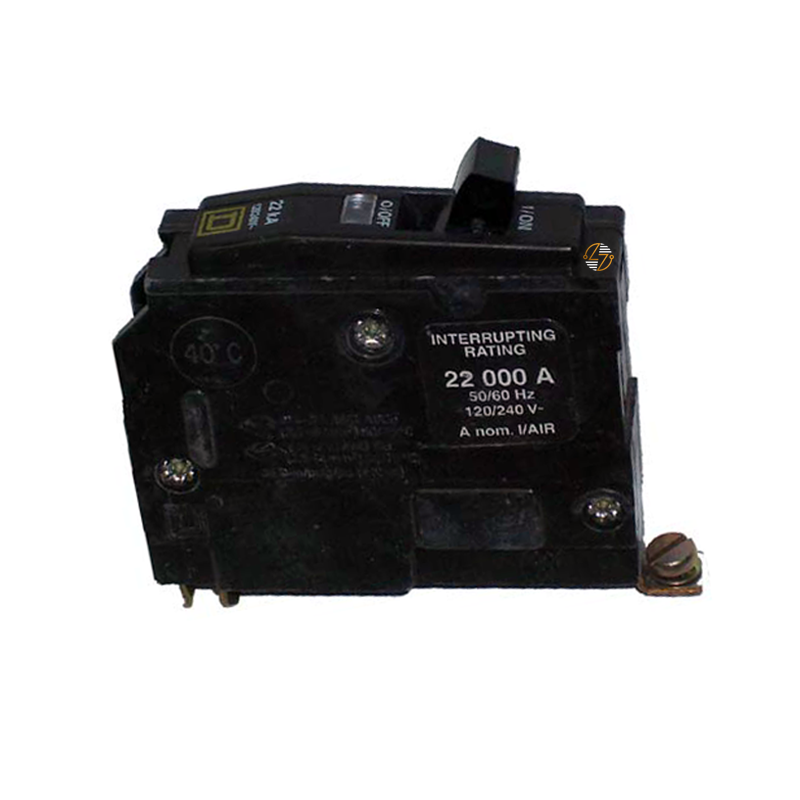

QOB120VH - 20 Amp Bolt-On Circuit Breaker

QOB120VH - 20 Amp Bolt-On Circuit Breaker

Protect your electrical system with the Schneider Electric QOB120VH 20‑Amp Bolt‑On Circuit Breaker—engineered for dependable performance in residential, commercial, and light industrial applications. Built with a high 22 kA interrupt capacity, this breaker helps safeguard your wiring and connected devices from overloads and short circuits. Its integrated VisiTrip indicator provides a quick visual signal when the breaker trips, allowing for faster troubleshooting and system restoration. Compact yet powerful, this 1‑pole miniature breaker is designed to fit seamlessly into QO distribution panels, offering a secure, vibration‑resistant installation.

Key Features and Benefits

• High Fault Protection: 22 kA interrupt rating at 120/240 V AC ensures reliable protection against high fault currents.
• Quick Diagnostics: VisiTrip indicator clearly displays when the breaker has tripped, saving time during maintenance.
• Space-Saving Design: Slim profile (3″ × 0.7″ × 2.9″) fits neatly into panels without sacrificing performance.
• Secure Bolt-On Mounting: Provides a stable connection ideal for environments subject to vibrations or frequent use.
• Flexible Wiring: Compatible with copper or aluminum conductors (AWG 14–8), making it suitable for a variety of setups.


Technical Specifications

• Amperage Rating: 20 Amps

• Interrupt Rating: 22 kA @ 120/240 V AC

• Voltage Rating: 120/240 V AC

• Poles: Single-Pole Miniature Breaker

• Mounting: Bolt-On (QO Panel Compatible)

• Connection Type: Pressure-Plate

• Wire Range: AWG 14–8 (Cu/Al)

• Torque Spec: 40.7 lbf·in (4.6 N·m)

• Dimensions:
  • Height: 3.0 inches
  • Width: 0.7 inches
  • Depth: 2.9 inches
• Weight: 0.30 lb


Material Compliance and Certifications

• UL Listed & CSA Certified: (UL File E84967 / Master Contract 153555) for safety compliance.
• Eco-Friendly Manufacturing: RoHS and REACH compliant, free from mercury and halogens.
• Green Premium Certified: Supports sustainable building projects with environmentally responsible materials.


Suitability

• This breaker is ideal for use in homes, small offices, retail spaces, and light industrial workshops. Perfect for protecting circuits that power lighting, HVAC systems, or office equipment, the Schneider Electric QOB120VH delivers dependable electrical safety for new installations or panel upgrades.
