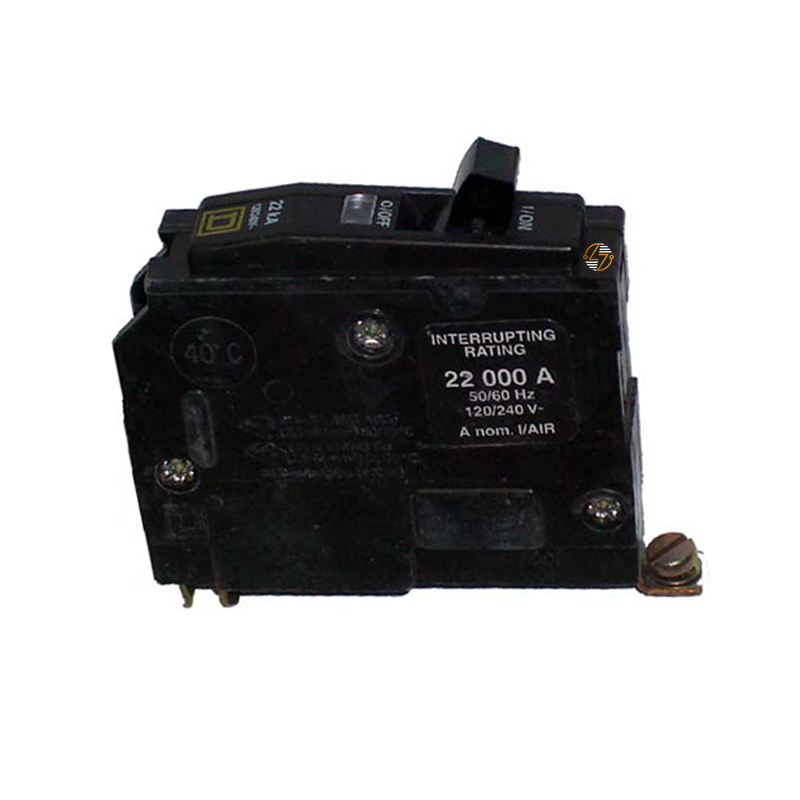

QOB115VH - 15 Amp Circuit Breaker

QOB115VH - 15 Amp Circuit Breaker

The QOB115VH bolt-on circuit breaker is a dependable solution for protecting 120VAC branch circuits from overloads and short circuits in your commercial, industrial, and institutional electrical systems. Designed as a 1-pole, 15-amp circuit breaker with a 22kA interrupting capacity at 120VAC, the QOB115VH is well-suited for applications requiring higher fault-current ratings. Its bolt-on mounting design helps you to provide a secure mechanical and electrical connection within compatible panelboards, making it an excellent choice for new installations, equipment upgrades, or maintenance projects. Built for reliable circuit protection and consistent performance, this breaker helps you keep electrical distribution systems operating safely while minimizing the risk of equipment damage and unplanned downtime.

Key Features and Benefits

• Part Number: QOB115VH
• Single-Pole Configuration: Single-pole (1P) configuration for 120VAC branch circuit protection.
• 15-Amp Current Rating: 15-amp current rating suitable for a wide range of lighting and receptacle circuits.
• 22kA A.I.C. Rating: 22kA A.I.C. at 120VAC for applications requiring a higher interrupting capacity.
• Bolt-On Design: Bolt-on design provides a secure installation within compatible electrical panelboards.
• Overload and Short-Circuit Protection: Helps protect connected equipment from overloads and short circuits.
• Compact Footprint: Compact footprint simplifies installation in compatible panels.
• Wide Application Compatibility: Suitable for commercial, industrial, and institutional electrical distribution systems.


Technical Specifications

• Part Number: QOB115VH

• Type: QOB-VH

• Mounting Style: Bolt-On

• Poles: 1

• Amperage: 15A

• Voltage: 120VAC

• Interrupting Capacity (A.I.C.): 22kA @ 120VAC

• Dimensions:
  • Height: 3.0 in.
  • Width: 0.75 in.
  • Depth: 2.5 in.

Material Compliance and Certifications

• Industry Standards: Manufactured to meet applicable industry standards for molded case circuit breakers within its product family.
• Installation Requirements: Designed for installation in compatible electrical distribution equipment in accordance with applicable electrical codes and manufacturer specifications.
• Compatibility Verification: Verify compatibility with the intended panelboard and installation requirements before use.


Where It Works Best

• The QOB115VH is ideal for commercial buildings, industrial facilities, schools, healthcare facilities, retail spaces, office buildings, and other electrical distribution systems that require a 15-amp, single-pole bolt-on circuit breaker with a 22kA interrupting rating. It is commonly used to protect branch circuits serving lighting, receptacles, and other general-purpose electrical loads in compatible panelboards. Its higher interrupting capacity also makes it a practical choice for installations where available fault current exceeds the capabilities of standard-duty breakers.
